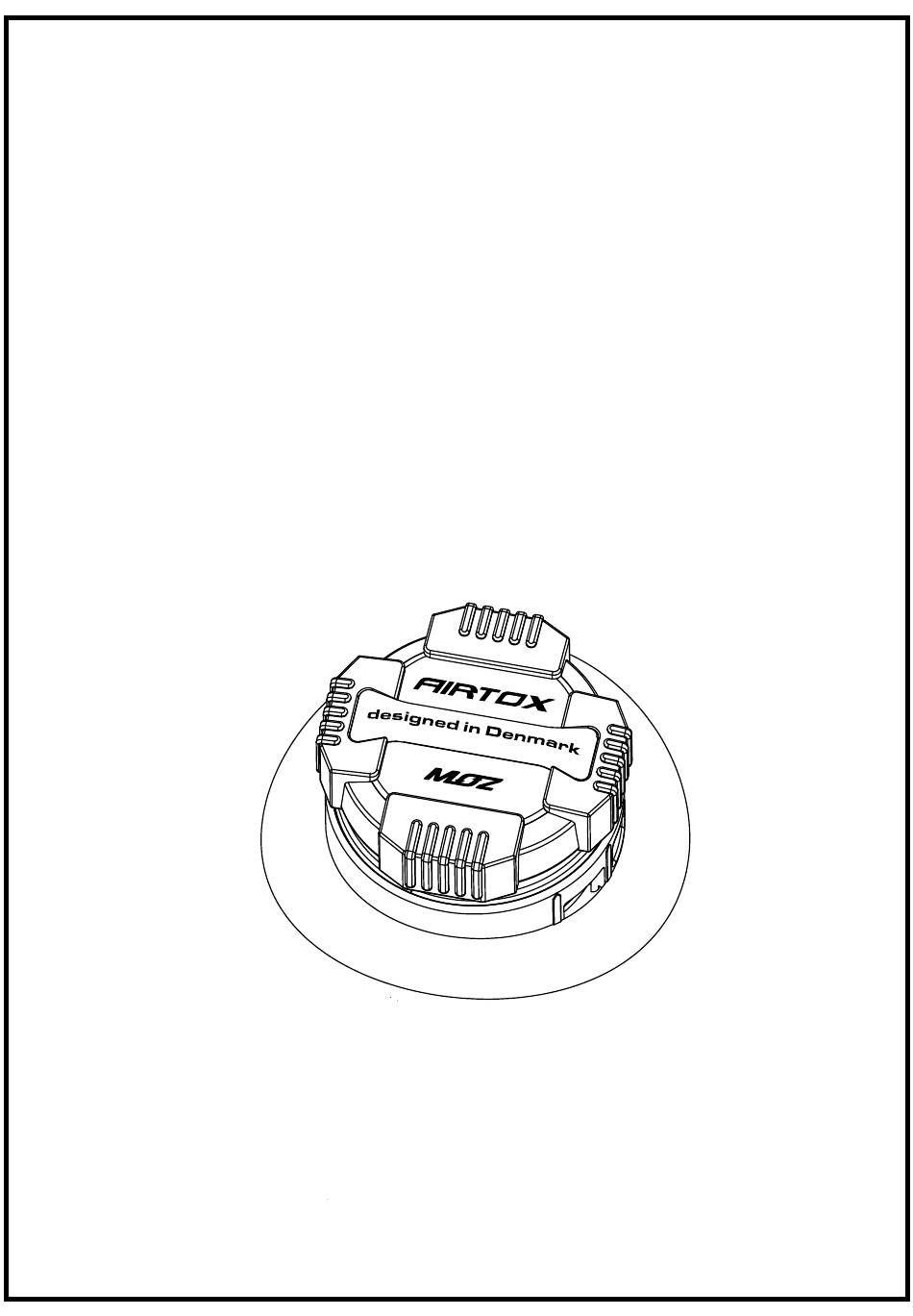

- Page 1 Ａ－B５９ Assembly Manual LACING SYSTEM...
- Page 2 1. Thread the wire lace into the boots, and the ends of the wire lace go through into the base of the reel knob.
- Page 3 2. Turn the knob and align the arrows to any of the four hooks. ◎ Please check the reel is 4901 3. Fix both ends of the wire lace to the reel ( 1 ) Pass the wire through hole 1 ◎...
- Page 4 ( 2 ) Thread the wire lace straight ( 3 ) Bend the wire lace straight through hole 1 & 2 into hole 3 & 4 ( 4 ) Thread wire’s terminal back ATTENTION to hole 4 to the bottom...
- Page 5 ( 5 ) Keep your finger press on the loop, pull wire with your right hand to make the loop slip to the bottom tightly ( 6 ) Pull the wire lace with your left hand to tighten the wirelace ( 7 ) Repeat above steps to the other side of wire lace...
- Page 6 4 . I n s t a l l k n o b b o d y ◎ 1. Pass the wire through the channel of the base align in parallel and insert the four hooks to the grooves. ◎ 2. Turn the knob on the counterclockwise, and ensure that the arrow on the top knob and the one on the base are aligned.
- Page 7 5. Function test - Tightening and Loosening ◎ 1. Turn the knob to clockwise direction to tighten the system ◎ 2. Pull up the knob to release the wire, and ensure that the wire can get out from the reel easily. ◎...
