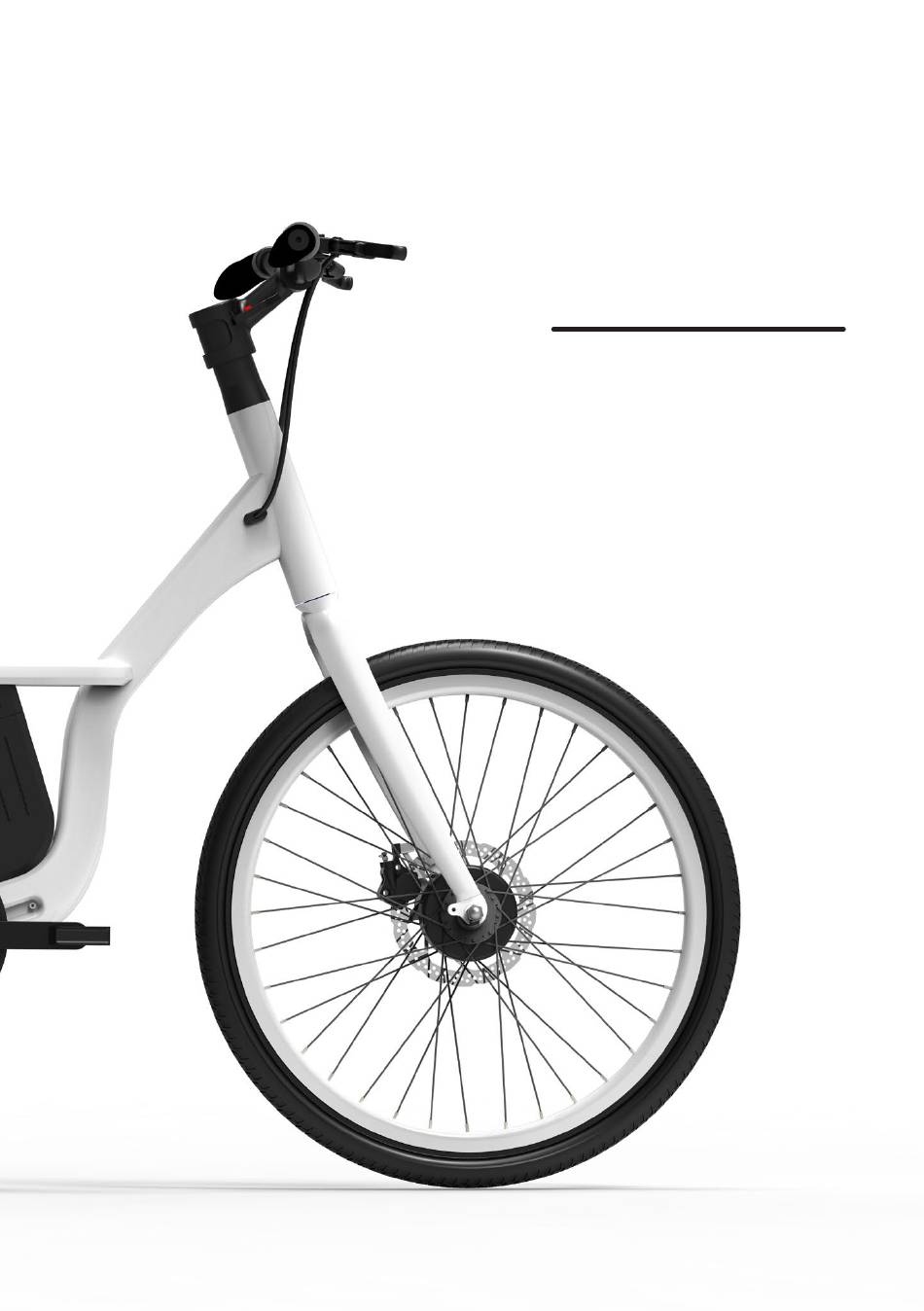

- Page 1 Carmela24 unboxing & assembly...
- Page 3 Model: Carmela24 According to EN ISO 4210-2/2015 and EN 15194/2018. oh!bike factoria S.L. B66493271 Diputació 286, Baixos 08009 Barcelona info@carmelabikes.com...
- Page 4 | unboxing & assembly unboxing & assembly Your Carmela24 has been assembled with This assembly is not difficult, but it must be love in Barcelona. However, to for improved done with caution and care since an incorrect safety transportation, some components must assembly can result in the damage of the bi- be assembled later.
- Page 5 owner’s manual | unboxing & assembly Take out the frame, which has the front wheel and the handlebar are fixed to it. Use the pac- kaging cartons to hold the bike. Remove all the white flanges and the protec- tive plastics. Do not remove the plastic from the fork so as not to damage it during assem- bly.
- Page 6 owner’s manual | unboxing & assembly Remove the cover. Mount the handlebar centered in the tighte- ning area. Look at the handlebar marks. Screw the screws of the handlebar clamp a couple of turns with your fingers. Make sure the cables do not twist or bend.
- Page 7 owner’s manual | unboxing & assembly Unscrew the fixing screw of the seat post clamp with the 6 mm Allen key. Insert the seat post into the seat tube. It is recommended to use mounting pase Align the saddle, place it to your size, and ti- ghten the screw.
- Page 8 owner’s manual | unboxing & assembly Screw the pedal onto the connecting rod thread with your hand, giving two or three turns. Clockwise. It is recommended to use mounting paste. Use the 15mm fixed wrench to finish screwing in the pedal completely. Make sure it is firmly fixed.
- Page 9 owner’s manual | unboxing & assembly Prepare the front wheel: remove the brake pad spacer. Check that the pads are placed exactly in their seats in the brake caliper. The slot be- tween the pads needs to be parallel. Place the wheel. Screw a couple of turns with your fingers .
- Page 10 owner’s manual | unboxing & assembly Connect the motor, in the position indi- cated by the arrow on the connector. Replace the cable clamps with the motor ca- ble properly fastened. Turn the bicycle over on the wheels and tigh- ten the wheel tightening nuts with the 15mm wrench.
- Page 11 owner’s manual | unboxing & assembly Lift the bicycle and spin the wheel. The brake disc should not rub against the pads when you do not operate the brake lever. If you tap against the pads , check maintenance. Finally, raise the wheel again a few centime- ters from the ground and lightly hit the tire from above.
- Page 12 | unboxing & assembly You have just assembled your oh!bike! If you have to mount an accessory, check acces- sories. Before starting the electrical system, and before using the bicycle, read check & use. What should you do with the packaging once...
- Page 13 owner’s manual | unboxing & assembly...
- Page 16 & assembly EN 1811 edition - oh!bike factoria S.L...
