ZLT S10 Wireless Router User Manual
Thank you for choosing the Tozed ZLT S10 4G Wireless Router.
Please read this user manual completely, prior to use.
Disclaimer: Tozed Corporation reserves the right to change or modify any
information or specifications contained in this manual without prior notice
and without any liability.

1. Key Parameters

● Working temps : -20℃ -- +70℃
● Relative humidity : 5%--95%
● Working frequency : TDD-LTE: Band 40
● Power supply : Input AC :100V~240V，50Hz~60Hz
Output DC: 12V, 0.5A
● Size :155x155x45(mm)
● Weight :310g
● Rate of uplink and downlink :LTE(Cat 4): DL150Mbps；UL50Mbps

2. Installation

2.1 Open the rear shell of the router and insert
USIM
make sure you insert the sim card in the right direction
2.2 You may use a standard RJ45 cable if you wish to connect the router to a
LAN/PC
2.3 Use the power adapter to connect the router to the power socket. Turn
on the power switch. The router starts automatically after the boot,
allowing for the initialization of the 1-2 minutes.
Attention:
1. Do not insert the USIM card when connected to power supply.
2. Please gently insert the card, .as it may get damaged if inserted
USIM
forcefully.

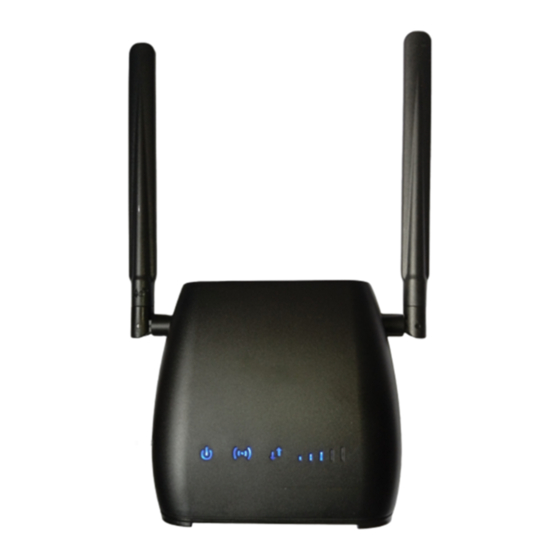

3. About the Router

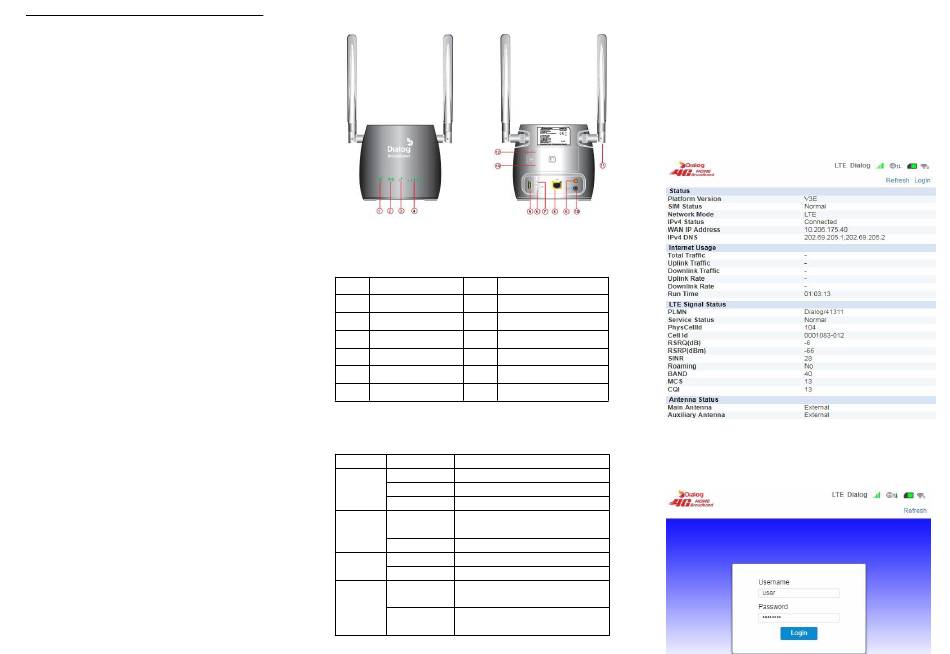

3.1 Ports & Functions
into the slot. Please
1 Power
3 LTE LED
5 USB
7 WPS
9 POWER
11 Antenna
13 SIM Cover

3.2 Indicators

Type
WI-FI
Signal
Strength
POWER
4G_LTE
2 Wi-Fi LED
4 Signal Strength LED
6 Wi-Fi
8 LAN Port
10 DC Power
12 SIM
Status Description
Off WI-FI off
On WI-FI on
Blinking WPS client is connecting
No signal, (the signal can be checked
Off
via the router configuration page).
Signal reception, 3 bars or better
On
Off Router power off
On Power normal, router power on
Yellow light 4G network is not connected or weak
on connection.
4G network is connected, internet
Blue light on
connection available

4. Quick Configuration Guide

The router supports standard RJ45 cables or WLAN wireless modes to
connect to a LAN, Computer or any other supportive device. No drivers
required; supports Windows XP, Windows 7, Windows 8, Windows 10, MAC
OS, Linux, Android etc.
Step 1：
Set the computer IP address to match the router network segment, or use
automatic access to get the IP address. After the computer IP address is set,
enter the IP address of the device on the IE browser: 192.168.8.1, Press
'Enter'on the device configuration.
Step 2：
Click the'Login' button to enter the configuration page
The login username and password are printed on the sticker at the bottom
of the device.
