Lithium-Iron Phosphate Battery
User Operation Manual
Product Name：Lifepo4 Battery Pack

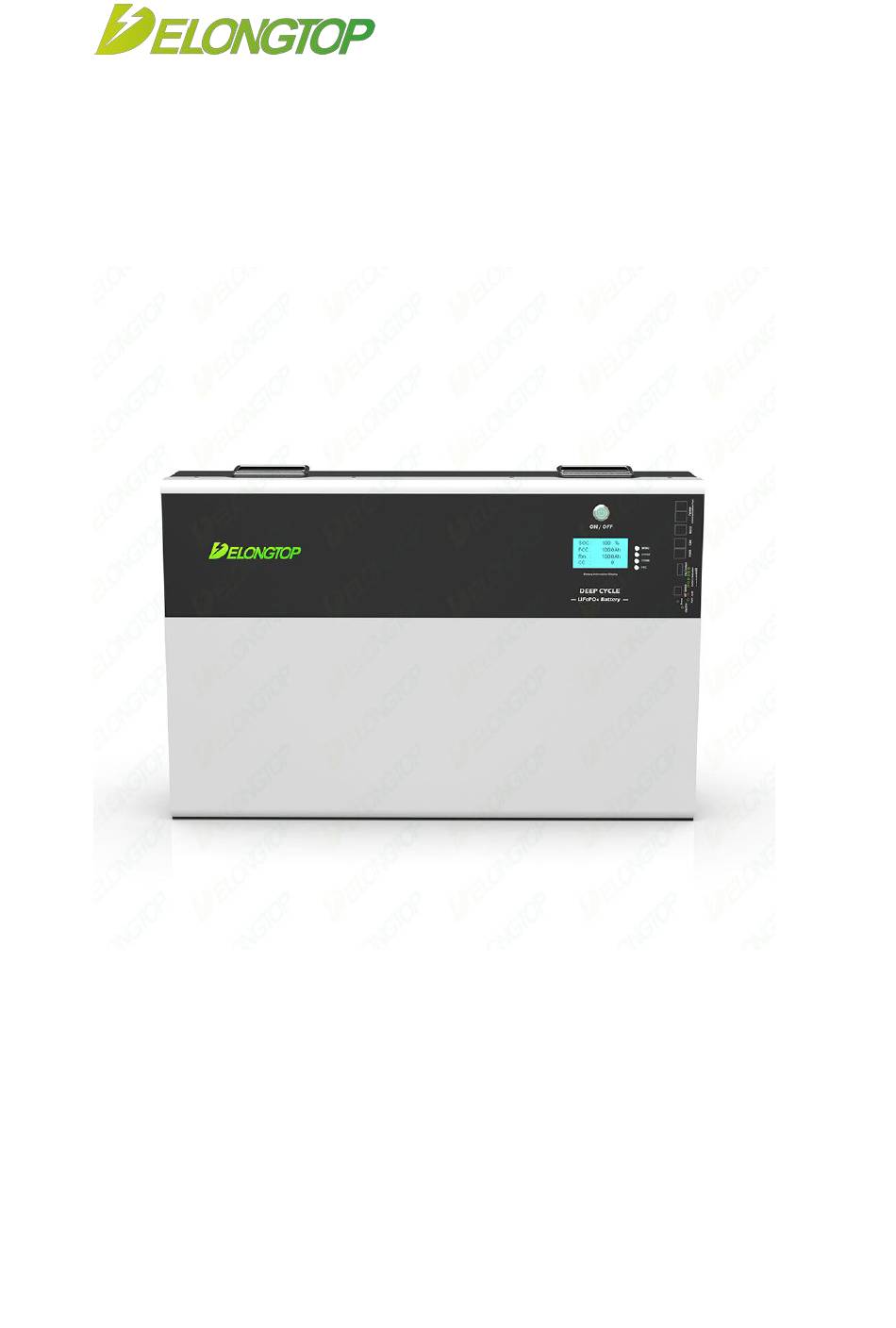

Model：LFP48200 Wall mounted
Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China
1
TEL: +86 755 21012989
FAX: +86 755 33815254
Advertisement
Related Manuals for DELONGTOP LFP48200
Summary of Contents for DELONGTOP LFP48200
- Page 1 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 Lithium-Iron Phosphate Battery User Operation Manual Product Name：Lifepo4 Battery Pack Model：LFP48200 Wall mounted Address: 9098,DongBian Business Building, MinZhi Road 369, MinZhi Street,Longhua New District, Shenzhen city, Guangdong Province,China TEL: +86 755 21012989 FAX: +86 755 33815254...
- Page 2 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 WARNING Quality Statement Proper use and maintenance will ensure that the battery (or battery system) will operate reliably and consistently for a long period of time. △After receiving the product, please check if the packaging is in good condition. If the packaging is broken, there may be damage to the product.
- Page 3 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 △Never use or combine this battery with another dissimilar battery. △ Batteries are temperature sensitive. For optimum performance, they should be installed in a stable temperature environment. △Always recycle old batteries. Contact your local recycling center for proper disposal information.
- Page 4 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 1.2 Specifications LFP48200 Model Nominal Capacity 200Ah Nominal Voltage 51.2V Energy 10KWH Self discharge <3% per month Energy efficiency > 98% Cycle Life 4000~6000 , 25℃ Lifespan 10 years Internal Resistance ≤100mΩ End of charge Voltage 58.8V...
- Page 5 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 Switch Power : to turn ON/OFF the whole battery BMS standby. Display: to show the batteries information ON/OFF ON/OFF Light: Constantly on after the boot, off after the extinguish Run： Run light: to show the Power Switch is ON, and the BMS has electricity (No power). ALARM Alarm light: Battery failure status indicator light, red for failure, green for normal.
-
Page 6: Safe Handling Of Lithium Batteries Guide
Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 capacity expanding. For each single module, each terminal can achieve charging and discharging function. RESET RESET Switch: When BMS is in hibernation state, press the button (3~6s) and release it, the protection plate will be activated, and the LED indicator will light up for 0.5 seconds successively from "RUN". -
Page 7: Installation
Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 The following tools are required to install the battery pack Wire cutter Crimping Modular Plier Screw Driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. -
Page 8: Precautions Before Installation
Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 3.2 Installation Condition Make sure that the installation location meets the following conditions: The area is completely water proof. The floor is flat and level. There are no flammable or explosive materials. The ambient temperature is within the range from 0°C to 50°C. The temperature and humidity is maintained at a constant level. - Page 9 Shenzhen Delong Energy Technology Co.,Ltd 深圳德隆能源有限公司 5) The embedded BMS in the battery is designed for 48VDC, please DO NOT connect battery in series before confirm with the supplier 6) Battery system must be well grounded and the resistance must be less than 1Ω; 7) Please ensured the electrical parameters of battery system are compatible to related equipment;...
