Summary of Contents for Tupavco TEX-200

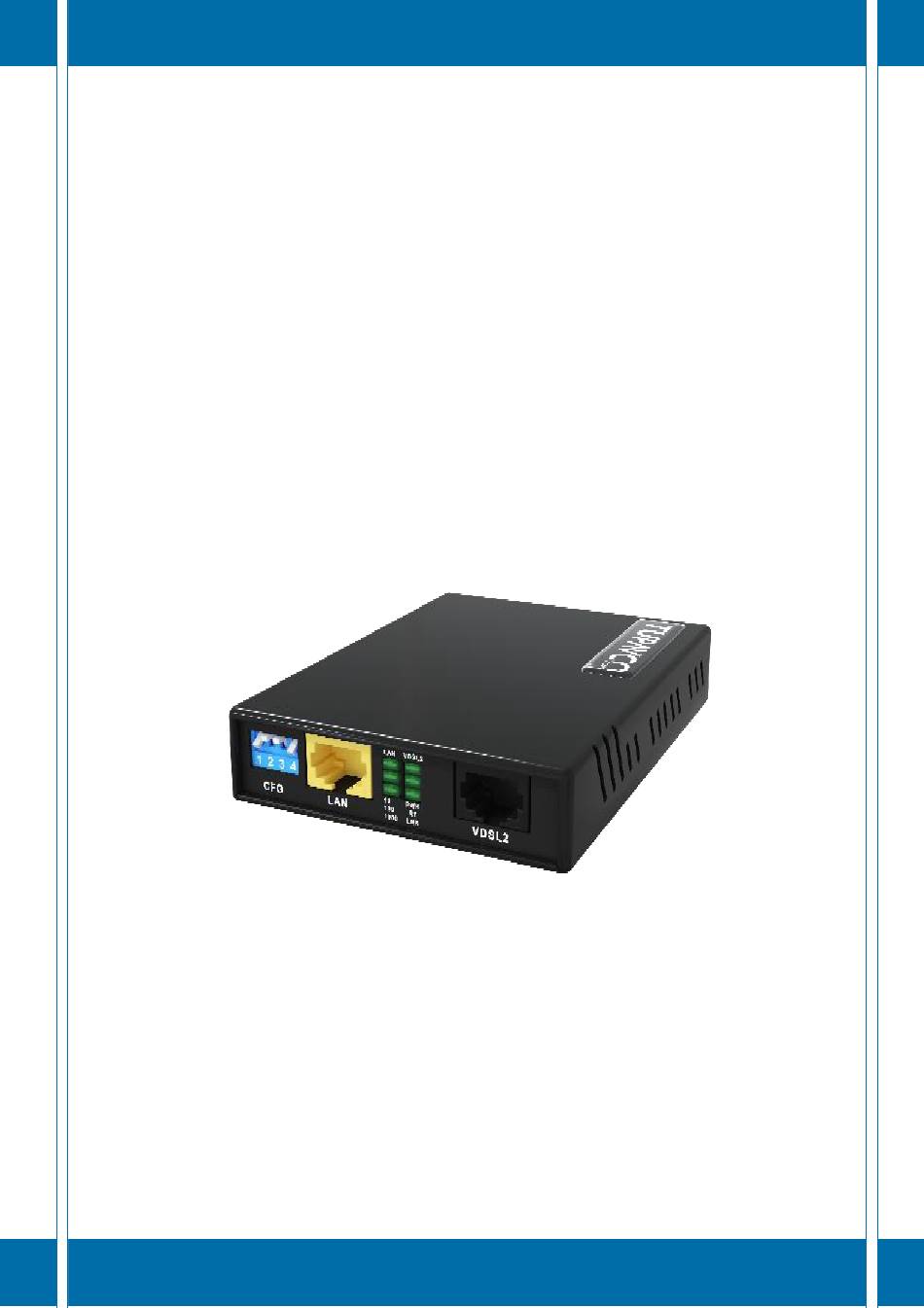

- Page 1 VDSL2 Ethernet Extender User Manual Tupavco TEX-200 Version 1.1 Issued 12/30/2019...
-
Page 2: Table Of Contents
Hardware Description ..................... 4 Mechanical Dimensions .................... 4 Connector Architecture ..................... 5 LED Definition ......................... 6 LED Indicators ......................6 Power Connection ......................6 4-Position DIP Switch...................... 7 Description of Setting ..................... 8 TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 3: Introduction
Mbps). It delivers fiber-optic like speeds on existing copper infrastructure, enabling a good alternative in place where fiber is not economical to deploy. The TEX-200 is equipped with a Gigabit Ethernet Port (RJ-45 connector) and one VDSL2 port (RJ-45 connector). 8 different profile settings can be flexibly selected via dip switches to suit various applications and environments. -
Page 4: Specifications
**The above performance data is for reference only, the CE Class A actual data rate may vary depending on the quality of the FCC Part 15B Class A coaxial cable and environmental factors. EN60950 TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 5: Applications
1,000 1,500 2,000 2,500 3,000 4,000 * The above performance data is for reference only, the actual data rate may vary depending on the quality of the copper wire and environmental factors. TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 6: Hardware Description

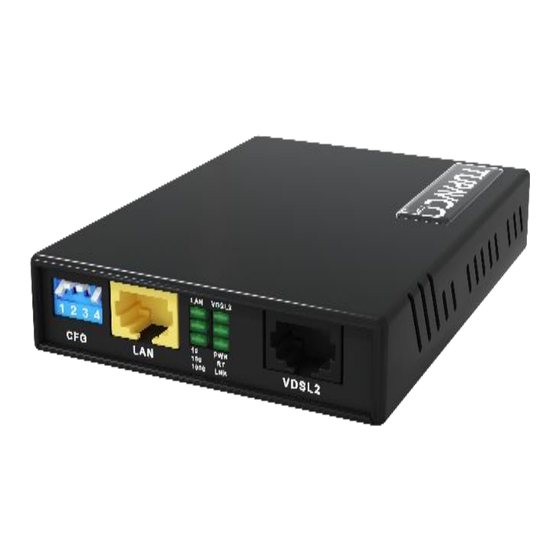

2 Hardware Description Tupavco TEX-200 is a Long Reach Ethernet Extender. This chapter shows the product outlook and hardware interfaces. Mechanical Dimensions Front Panel TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 7: Connector Architecture
The VDSL2 interface is standard eight-pin modular jack. The table below displays the pin out assignments. Pin Number Description Figure Not used Not used Top View Not used ANALOG Input / Output ANALOG Input / Output Not used Not used Front View Not used TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 8: Led Definition
Reception of data 1000 Data Transmitting occurring at speed of Link Down 1,000Mbps 4 Power Connection 12-24 Vdc over 2.1mm DC Jack (Commercial Grade External Power Adaptor included) Power Consumption: 4.5 Watts maximum TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 9: 4-Position Dip Switch
150/50 Annex A 17a-eu32) Remote Remote Unit (RT) will always follow the setting of Master Unit (OT). When the unit (RT) operates in RT (CPE) Mode, DIP Switches 2,3,4 have no functions. TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... -
Page 10: Description Of Setting
Because this item is set to 30a profile, so its train up time is about 15sec to 20sec. 8. Profile Setting (Dip2: On, Dip3: On, Dip4: On) is standard profile Annex A 17a-eu32. TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1... - Page 11 To reduce potential safety issues, only the AC Adapter provided with the product, a ● replacement AC Adapter provided by agency, or an AC adapter purchased as an accessory from agency should be used with the product. TUPAVCO TEX-200 VDSL2 ETHERNET EXTENDER – UM V1.1...
