Summary of Contents for PryMAX J1200

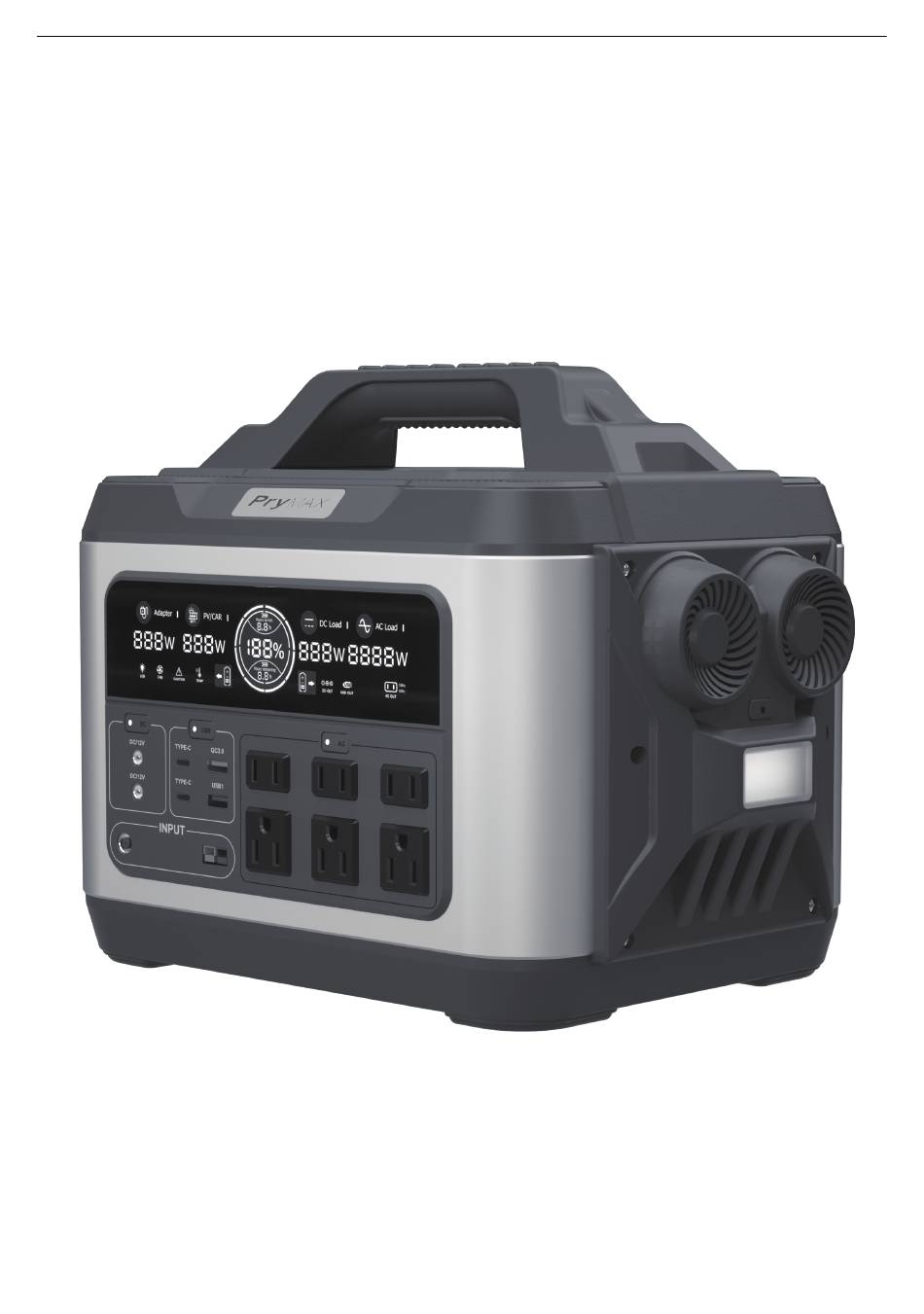

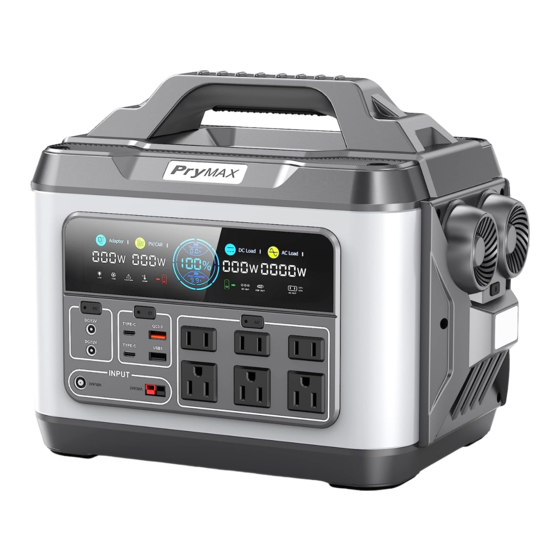

- Page 1 Portable Solar Generator Power Station Model: J1200 PryMAX Portable Power Station User Manual ATTENTION: AC output voltage and frequency will be different depending on different countries or areas. Please refer to the actual product before using.
-
Page 2: Product Description
Thanks for purchasing our portable solar generator power station. Please read this manual carefully before use and keep it for review. This manual helps you to operate this device correctly. But it is not the introduction of the soft & hard ware configuration. To know the configuration of the product, please refer to the related contract or consult with your distributor. -
Page 3: Specifications
Specifications Model J1200 Battery Capacity 22.2V 50000mAh 1110Wh Rated Power 1200W, Peak 2600W Battery Type High Quality Lithium Ion Batteries Charge Input CC/CV 25.5V/8A AC Output 6*110V 60Hz USB Output 5V/2.4A QC 3.0 Output 5V/3A, 9V/2A,12V/1.5A DC Output 2*12V/8A max... -
Page 4: Lcd Display
LCD Display DC Input Solar Charging DC Output Power AC Output Power Fault Charging Discharge USB Output AC Output Light Temperature Status DC Output ※ The LCD screen will shut down automatically when no outputs are activated within 60 seconds. Battery Level Indicator Shows the percentage of the power. - Page 5 Function Failures Warning When there is Short-circuit, Exceed maximum current/power limit or Low voltage, the Function Failure sign will appear on the display and the corresponding outlet indicator will flash simultaneously for 60 seconds.Output automatically shuts down immediately. Please remove the overloaded devices and then restart the power station to resume work. How to Use Your Portable Power Station? 1.AC Output Switch Turn on AC output: Press and hold the AC power button...
- Page 6 2.DC Output Switch Turn on DC output: Press the DC power button to turn on DC output, the corresponding indicator light will light up and the display screen will show“ ”. DC output will switch off within 1 hour automatically when there are no loads(less than 2W). Turn off DC output: Press the DC power button to turn off the product,the corresponding indicator light and the display screen “...
- Page 7 Smartphone, Digital Camera, Tablet, Etc. 4.LED Light Switch Turn on LED light: Press and hold the LED button for 2 seconds to turn on the light, and the display screen will show “ ”. One more click to switch the modes,including High light, Low light, SOS and Strobe.
- Page 8 How To Charge The Portable Power Station? 1.Charging by DC input(7.9*5.5*0.9mm)(12V~30V,10A max /250W max) The icon“ ” will light up, show the current input power in watts “ ” and provide remaining charging time in hours under current input,and the percentage of the battery.
-
Page 9: Frequently Asked Questions
3.Charging by Anderson port 2 (25V,20A max/500W max) The icon“ ”will lights up, show the current input power in watts “ ” and provide remaining charging time in hours under current input,and the percentage of the battery. Frequently Asked Questions 1. - Page 10 Product Application Skills 1) This product is built-in high quality original lithium ion battery. It has no memory effect but has high-capacity, and it is durable. However, we still recommend you to apply in the range of 10 ℃ ~30 ℃, so as to obtain the optimal charging capacity. 2) When charging, in order to avoid interference, please stay away from TV, radio and other equipment.
Need help?
Do you have a question about the J1200 and is the answer not in the manual?
Questions and answers
"Output will switch off within 1 hour automatically when there are no loads(less than 2W)" Is there a way to prevent the AC output from turning off when it is drawing less than 2w? I need to run a low-draw item continuously for multiple days without re-setting the switch.
The PryMAX J1200 AC output will shut off automatically if the load is less than 2W for one hour. To prevent this, ensure that a device drawing more than 2W remains connected and running continuously.
This answer is automatically generated

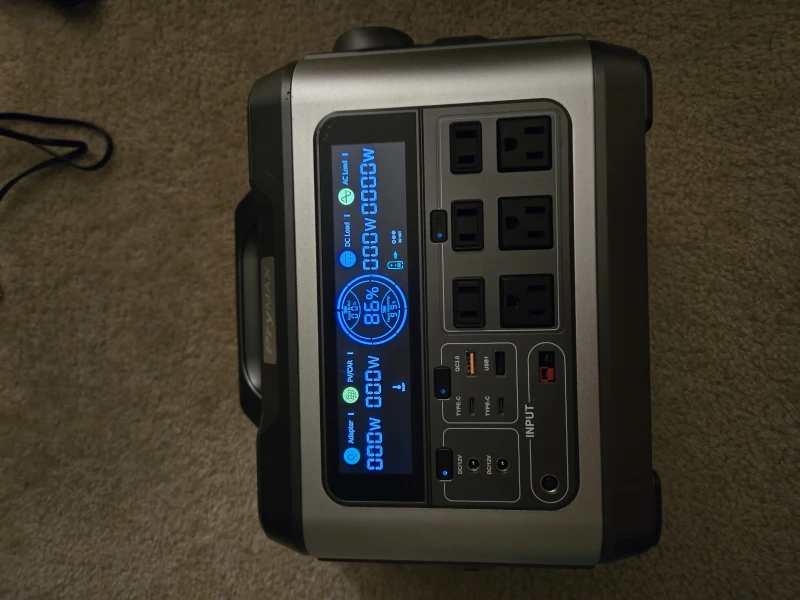

My battery can no longer charge other devices. Bought in September 2023. I am sure the battery is charged. I need to know where to get it repaired. Can you provide contact information?
