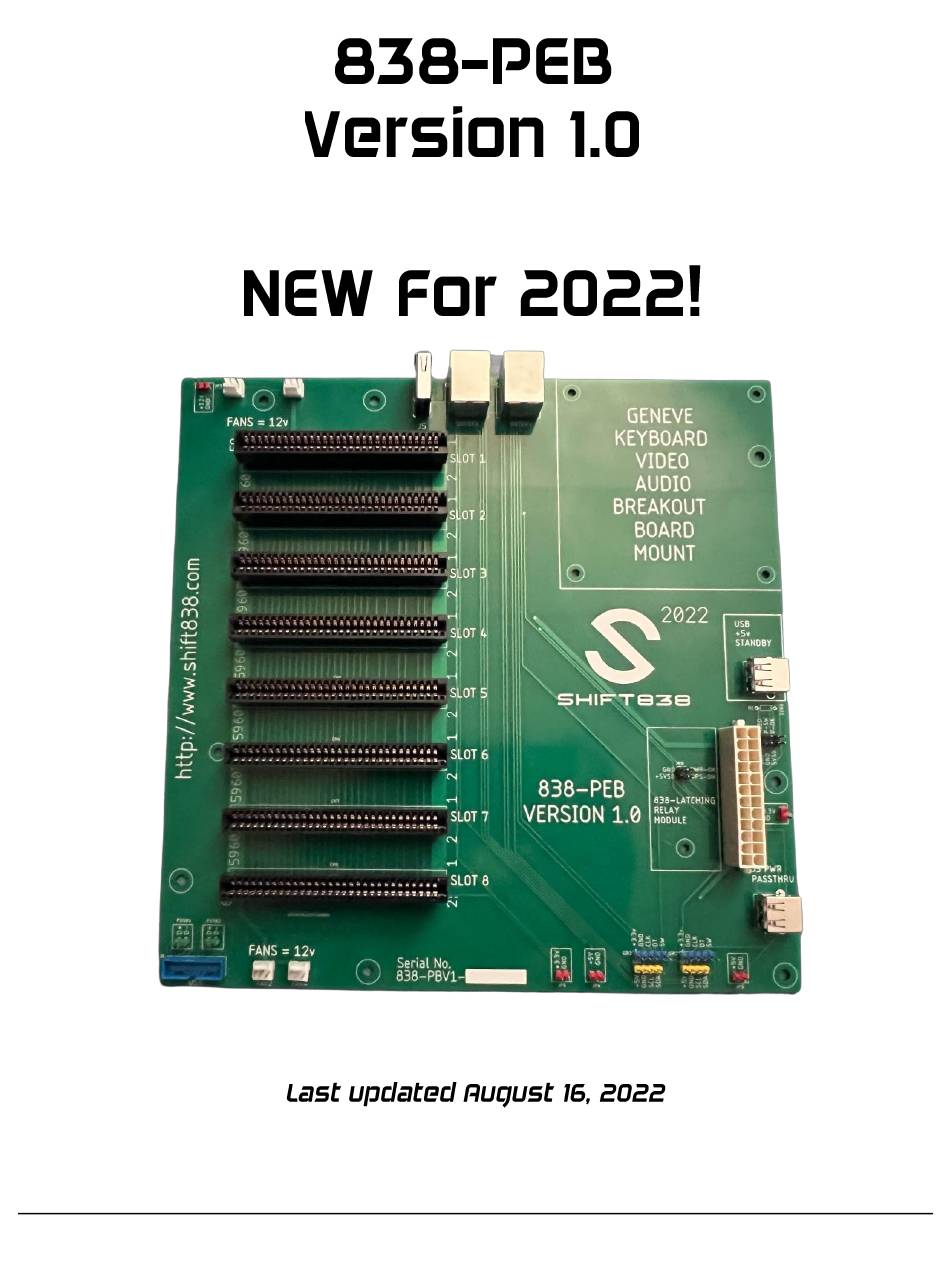

Summary of Contents for Shift838 838-PEB Version 1.0
- Page 1 http://www.shift838.com...
-
Page 2: Table Of Contents
T able of Contents Description ....................1 Disclaimer ....................1 Features ..................... 2 Connector Identification: ................3 Installation ....................3 Specific Wiring .................... 6 Support ....................... 7 http://www.shift838.com... -
Page 3: Description
This unit has been thoroughly tested with many original and 3rd part peripheral expansion cards for the TI-99/4A and Geneve 9640 computers. By purchasing the 838-PEB board the consumer agrees that SHIFT838 (Chris Schneider) is not responsible for any damage to your system,... -
Page 4: Features
Features • 24 pin ATX power supply connector • Headers for Power LED, Power Switch, +5v Standby and Power-OK • Header for use with 838-Latching Relay Module o Using this module turns the existing momentary power switch that all ATX PC cases have to a latching switch using a timer relay circuit to pulse a ground signal to ensure the power supply is turned on. -
Page 5: Connector Identification
Connector Identification: Installation 1. Open the PC case that will be used to mount the 838-PEB 2. If not installed, install the ATX power supply to be used 3. Install any drives or other peripherals in their required bays 4. Mount 838-Latching Relay Module if Used 5. - Page 6 7. If being used on a Geneve 9640 and if purchased the 838-Geneve Breakout mount the 838-PEB board at the location marked.
- Page 7 8. Mount PEB rail guides as shown: 9. Make connections if used for: a. Gotek 1 b. Gotek 2 c. PC Fans d. USB 3.0 e. D- / D+ for MicroGoteks #1 and #2 f. USB 5v Standby g. USB 5v Pass-Through h.
-
Page 8: Specific Wiring
12. Connect drivers and other peripherals to their respective expansion cards and power connectors. 13. Double and Triple check all your connections! 14. Power up the 838-PEB first then your console if using a TI-99/4 or TI-99/4A. 15. Enjoy! Specific Wiring Goteks: The Gotek units including the MicroGoteks can be used with the rotary and display modifications. -
Page 9: Support
Support For all support related questions please send an email to support@shift838.com SHIFT838 Website http://www.shift838.com SHIFT838 Store: https://www.shift838.com/store...
