Summary of Contents for Headliner HD3
- Page 1 Studio Monitors OWNER’S MANUAL www.headliner-la.com...
-
Page 2: About This Manual

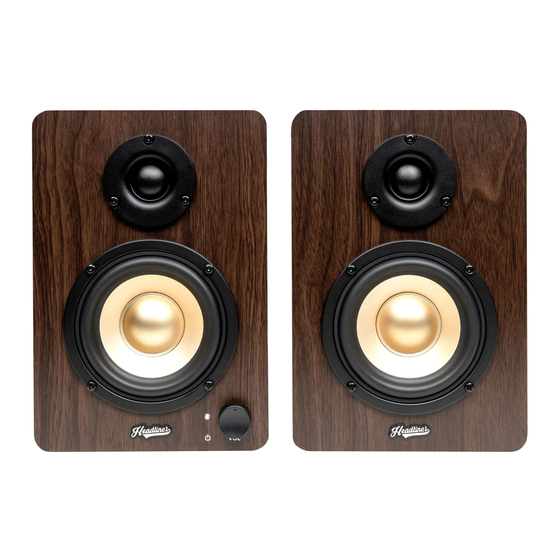

About This Manual Dear Headliner HD3 Owner, Thank you for purchasing a pair of Headliner HD3 powered studio monitors. Please take a few moments to read this manual to get the best performance from your new monitors. If you have any questions, visit our website at www.headliner-la. -
Page 3: Front & Rear Panel Layout
Front & Rear Panel Layout 1. Balanced TRS left and right inputs: Connects to a balanced audio source such as an audio mixer or sound card. 2. Unbalanced RCA left and right inputs: Connects to an unbalanced audio source such as a smartphone or MP3 player. -
Page 4: Getting Started
5. Press play on your audio source and slowly turn the volume knob on the front panel up to the desired volume. The knob will click as it turns the monitor on. The white LED will illuminate when the monitor is powered. HEADLINER HD3... -
Page 5: Connection Diagrams
Connection Diagrams Connecting to an audio mixer or interface with 1/4” TRS outputs. Connecting to a receiver or media player with RCA outputs. Connecting to a computer or smartphone with headphone output. OWNER’S MANUAL... -
Page 6: Warranty
This warranty gives you specific legal rights. this limited warranty. To the extent allowed You may have other rights, which vary from by the local law of jurisdictions outside the state to state. United States, the Company disclaims all HEADLINER HD3... -
Page 7: Important Safety Instructions
A Electrical information and warning symbols polarized plug has two blades and a third for Headliner products are located on the rear grounding prong. The wide blade and the electrical panel of the unit adjacent to the third prong are provided for your safety. -
Page 8: Technical Specifications
120V, 60Hz A Mixware Brand © 2021 Mixware, LLC. All Rights Reserved. Headliner and the Headliner logo are trademarks of Mixware, LLC in the U.S. and other countries. Other product names mentioned herein may be trademarks of their respective companies. All specifications subject to change without notice.
