Summary of Contents for PROTMEX PT20C

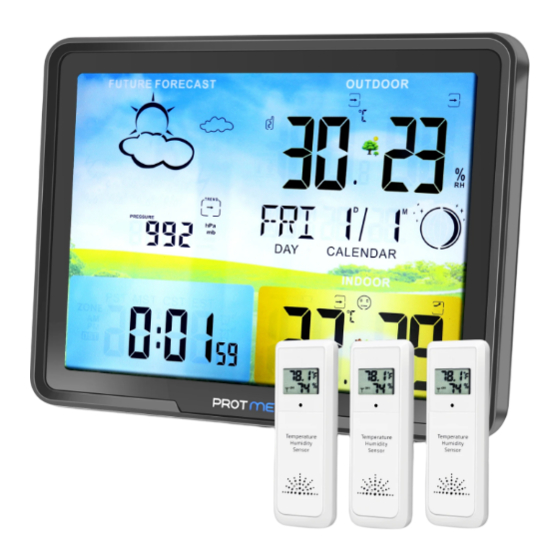

- Page 1 PT20C Weather Station Clock WWVB RCC/NO RCC Version User Manual...
-
Page 2: Functional Overview
1. Functional Overview 1) Perpetual calendar; 2) RCC function (Only RCC version weather station has this function); 3) Multi-time zone clock, WWVB version supports time zones is US time zone (Only RCC version weather station has this function); 4) Weekly display, support 7 languages (English, German, Italian, French, Spanish, Dutch, Danish) 5) Personalized alarm clock, can be set to ring on weekdays, weekends or every day, and has a snooze alarm clock function;... - Page 3 17) Temperature alarm function; 18) Heat index; 19) Indoor comfort graded expressions; 20) The PT20C signal receiver can connect up to 3 signal sensors at the same time, and display the data of each sensor on the receiver screen in a carousel mode;...

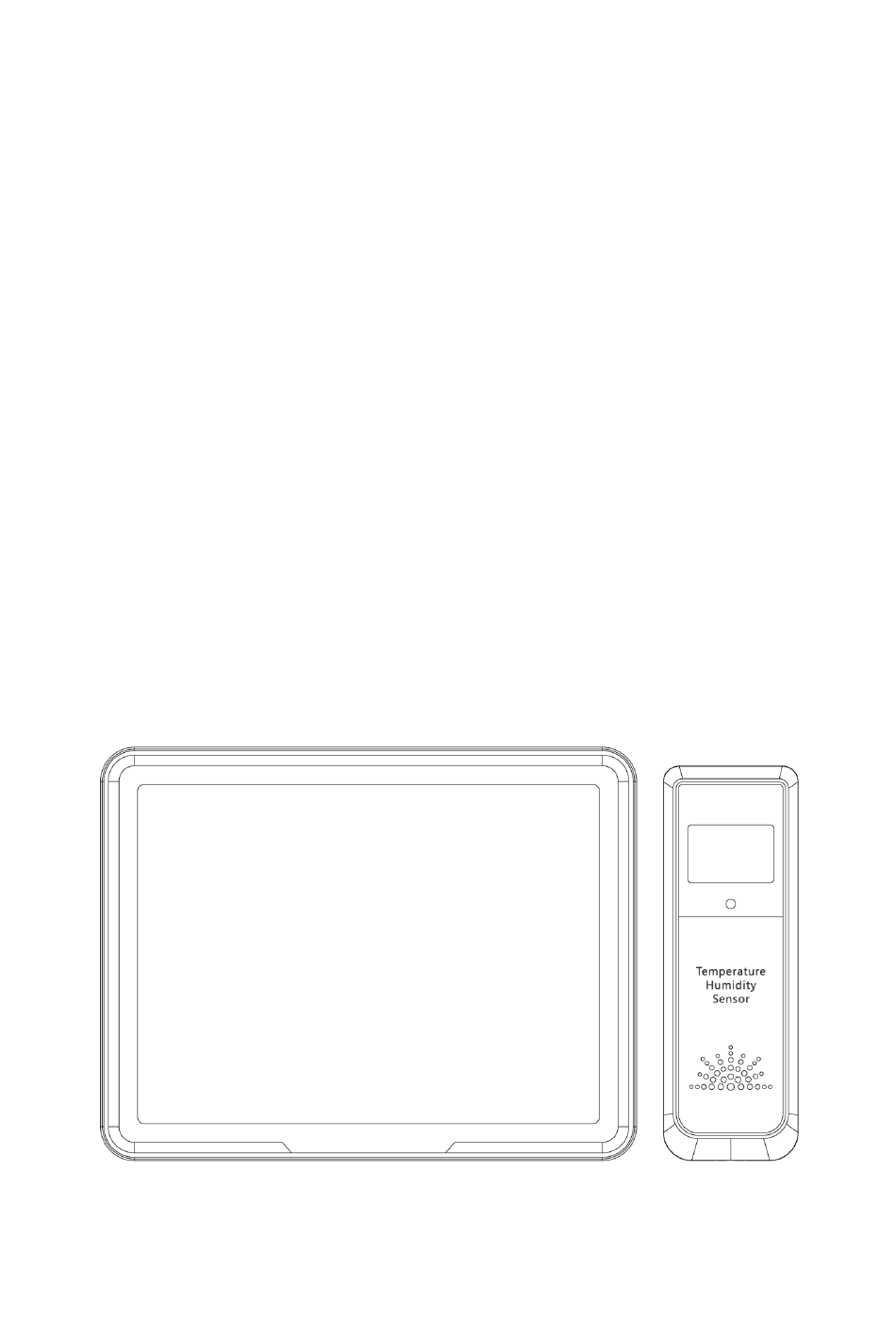

- Page 4 2. Appearance & Screen Display Introduction 1) Snooze alarm clock and backlight wake up, touch sensing area; 2) LCD display; 3) Power adapter socket; 4) Alarm clock switch 5) "▲/RF" key; 6) "TIME" key; 7) "▼/MEM" key; 8) Hook up hole; 9) "HI/DP"...
- Page 5 1) LCD Screen; 2) °C / °F Switch Button; 3) Hanging Hole; 4) Channel Switch Button; 5) Transmit signals immediately; 6) Battery compartment; 7) Support piece.
- Page 6 1) Frost alarm; 2) Weather forecast; 3) Temperature alarm; 4) Signal channel; 5) The maximum and minimum outdoor temperature and humidity; 6) Sensor low battery alarm; 7) Outdoor temperature; 8) Outdoor temperature change trend; 9) Outdoor dew point temperature; 10) Outdoor heat index; 11) Outdoor humidity change trend;...
- Page 7 12) Outdoor relative humidity; 13) Date; 14) Moon phase; 15) Weekly display; 16) The maximum and minimum indoor temperature and humidity; 17) Signal receiver low battery alarm; 18) Indoor temperature change trend; 19) Indoor relative humidity change trend; 20) Indoor relative humidity; 21) Graded expressions of indoor comfort;...
-
Page 8: Relative Humidity
1) Temperature; 2) Celsius or Fahrenheit units; 3) Sensor low battery alarm; 4) Relative humidity; 5) Signal channel. 3. Power On & Reset When the signal receiver is powered on or reset, the full screen display lasts for 3 seconds, and the backlight is on. Then, the buzzer emits a beep to detect and display the real-time indoor temperature and humidity. -
Page 9: Setup And Operation
After power on, the screen display will display the content by default, as shown in the following table: Display type Default display Mont Tempera Time version date language of AL1 time AL2 time time h/Day ture unit zone the week 12:00AM 7:00AM，... - Page 10 Time setting: long press the "TIME" button for two seconds, the specific process is shown in the following table: Time Lang WWVB Weather 12/24H hour year DM/MD pressure drop ON/OFF zone uage month→ on/off RCC US pattern→ → → → →...
- Page 11 8) Time zone description(Only RCC Version): Eastern – EST (GMT -5) Central – CST (GMT -6) WWVB Mountain – MST (GMT -7) Pacific – PST (GMT -8) 9) The week display comparison of different languages is shown in the following table: Language abbreviation...
- Page 12 The key operation is the same as the The fourth step third step, this step sets the "minute" in the ringing time; Single press "▲/RF" or "▼/MEM" to select the alarm repeat mode, and The fifth step single press "ALARM" key to confirm the setting.
-
Page 13: Screen Backlight
2) Long press the "ALERT" key to enter the temperature alarm setting mode, and the following specific steps are shown in the below table: Sequence of steps Screen display Operating Single press "▲/RF" or "▼ /MEM" to set the upper limit of temperature alarm;... - Page 14 5、Function & Effect Description (1) RCC, with automatic RCC receiving function (Only for RCC version). Receiving conditions for entering RCC: a) After power on or reset, it automatically enters RCC reception; b) Long press the "SNOOZE/LIGHT" button to forcibly enter RCC reception; c) During the receiving process, long press the "SNOOZE/LIGHT"...
- Page 15 the valid signal of the same ID Code within 60 minutes, the CH temperature will display "-- .-" When the temperature is lost, the signal is received again and the temperature display will be restored (3) Alarm function: The alarm time lasts for 2 minutes; When the alarm is sounding, single press [SNOOZE/LIGHT] key to delay the alarm for 5 minutes, press other keys to exit the alarm;...
- Page 16 "▼/MEM" to clear the memory value or clear the memory value at 0 o'clock every day to the current value; e) Temperature error range: ±1℃; humidity error range ±5%; When the alarm clock rings or RCC reception is in progress, the temperature detection is suspended.
- Page 17 (7) Frost alarm function When the signal sensor of channel 1 is in the environment where the temperature is less than 3℃ and greater than -2℃, the frost alarm icon " " is displayed; when the temperature changes outside this range, the icon disappears.
- Page 18 (9) Moon phase function (positive display: northern hemisphere image) The monthly image of the day is automatically calculated according to the calendar, as shown below: Moon phase icon Moon phase name Full Moon Waning Gibbous Third Quarter Waning Crescent New Moon Waxing Crescent First Quarter Waxing Gibbous...
- Page 19 (10) Weather forecast, as shown in the following table: Screen display Corresponding weather Sunny Partly Cloudy Cloudy Rainy Thunder Shower Snowy Heavy Snow...
