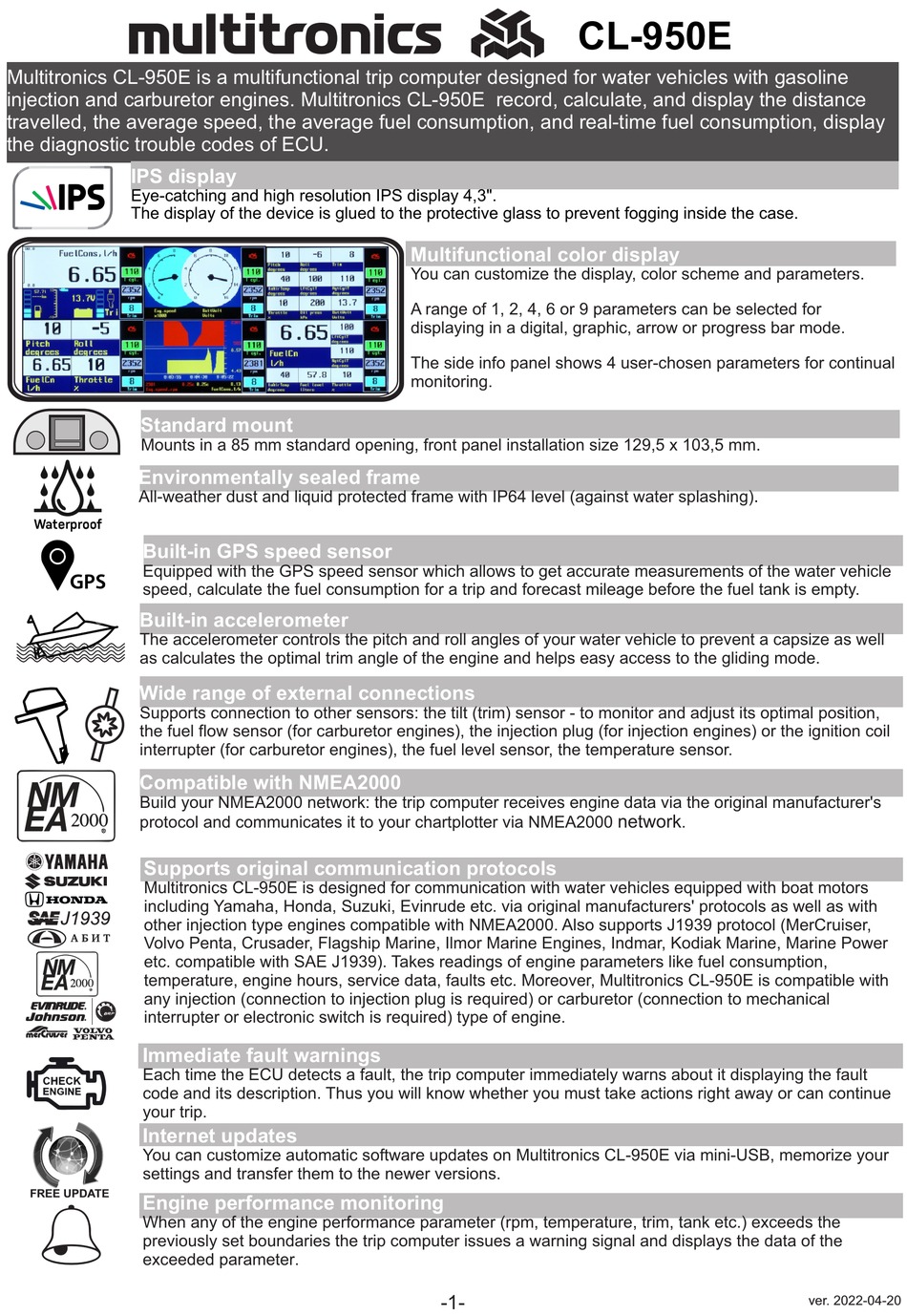

Multitronics CL-950E is a multifunctional trip computer designed for water vehicles with gasoline
injection and carburetor engines. Multitronics CL-950E record, calculate, and display the distance
travelled, the average speed, the average fuel consumption, and real-time fuel consumption, display
the diagnostic trouble codes of ECU.
IPS display
Eye-catching and high resolution IPS display 4,3".
The display of the device is glued to the protective glass to prevent fogging inside the case.
Standard mount
Mounts in a 85 mm standard opening, front panel installation size 129,5 х 103,5
Environmentally sealed frame
All-weather dust and liquid protected frame with IP64 level (against water
Built-in GPS speed sensor
Equipped with the GPS speed sensor which allows to get accurate measurements of the water vehicle
speed, calculate the fuel consumption for a trip and forecast mileage before the fuel tank is empty.
Built-in accelerometer
The accelerometer controls the pitch and roll angles of your water vehicle to prevent a capsize as well
as calculates the optimal trim angle of the engine and helps easy access to the gliding mode.
Wide range of external connections
Supports connection to other sensors: the tilt (trim) sensor - to monitor and adjust its optimal position,
the fuel flow sensor (for carburetor engines), the injection plug (for injection engines) or the ignition coil
interrupter (for carburetor engines), the fuel level sensor, the temperature sensor.
Compatible with NMEA2000
Build your NMEA2000 network: the trip computer receives engine data via the original manufacturer's
protocol and communicates it to your chartplotter via NMEA2000
Supports original communication protocols
Multitronics CL-950E is designed for communication with water vehicles equipped with boat motors
including Yamaha, Honda, Suzuki, Evinrude etc. via original manufacturers' protocols as well as with
other injection type engines compatible with NMEA2000. Also supports J1939 protocol (MerCruiser,
Volvo Penta, Crusader, Flagship Marine, Ilmor Marine Engines, Indmar, Kodiak Marine, Marine Power
etc. compatible with SAE J1939). Takes readings of engine parameters like fuel consumption,
temperature, engine hours, service data, faults etc. Moreover, Multitronics CL-950E is compatible with
any injection (connection to injection plug is required) or carburetor (connection to mechanical
interrupter or electronic switch is required) type of engine.
Immediate fault warnings
Each time the ECU detects a fault, the trip computer immediately warns about it displaying the fault
code and its description. Thus you will know whether you must take actions right away or can continue
your trip.
Internet updates
You can customize automatic software updates on Multitronics CL-950E via mini-USB, memorize your
settings and transfer them to the newer versions.
FREE UPDATE
Engine performance monitoring
%
When any of the engine performance parameter (rpm, temperature, trim, tank etc.) exceeds the
previously set boundaries the trip computer issues a warning signal and displays the data of the
exceeded parameter.
CL-950E
Multifunctional color display
You can customize the display, color scheme and parameters.
A range of 1, 2, 4, 6 or 9 parameters can be selected for
displaying in a digital, graphic, arrow or progress bar mode.
The side info panel shows 4 user-chosen parameters for continual
monitoring.
-1-
mm.
splashing).
network
.
ver. 2022-04-20
