OptaLine - Low Glare Profile Luminaire
IMPORTANT:
FOR YOUR SAFETY AND THE LONG-TERM RELIABILTY OF THIS PRODUCT, READ AND
FOLLOW ALL INSTRUCTIONS TO PREVENT HARM TO THE LUMINAIRE, INSTALLER OR
PROPERTY.
Installation requires knowledge of electrical and luminaire systems; installa-
tion must only be completed by a licenced or suitably qualified electrician.
Disconnect power before installation.
Do not alter pre-existing holes or drill new holes unless instructed to do so
according to this manual.
Do not expose wiring to sharp objects or edges of sheet metal, always check
clearances prior to any drilling and de-burr edges.
No components of this luminaire are serviceable by the user, and there is
danger of personal and/or property harm if the luminaire is modified or dis-
assembled.
If any luminaire components are damaged, they shall be exclusively replaced
by the manufacturer or approved agent.
DIMENSIONS:
Mass:
0.90 kg (300 mm)
1.65 kg (600 mm)
3.10 kg (1200 mm)
| Product Instructions
305 / 605 / 1205 mm
60 mm
88 mm
Advertisement
Table of Contents
Summary of Contents for ecopoint OptaLine ELG300B10W840

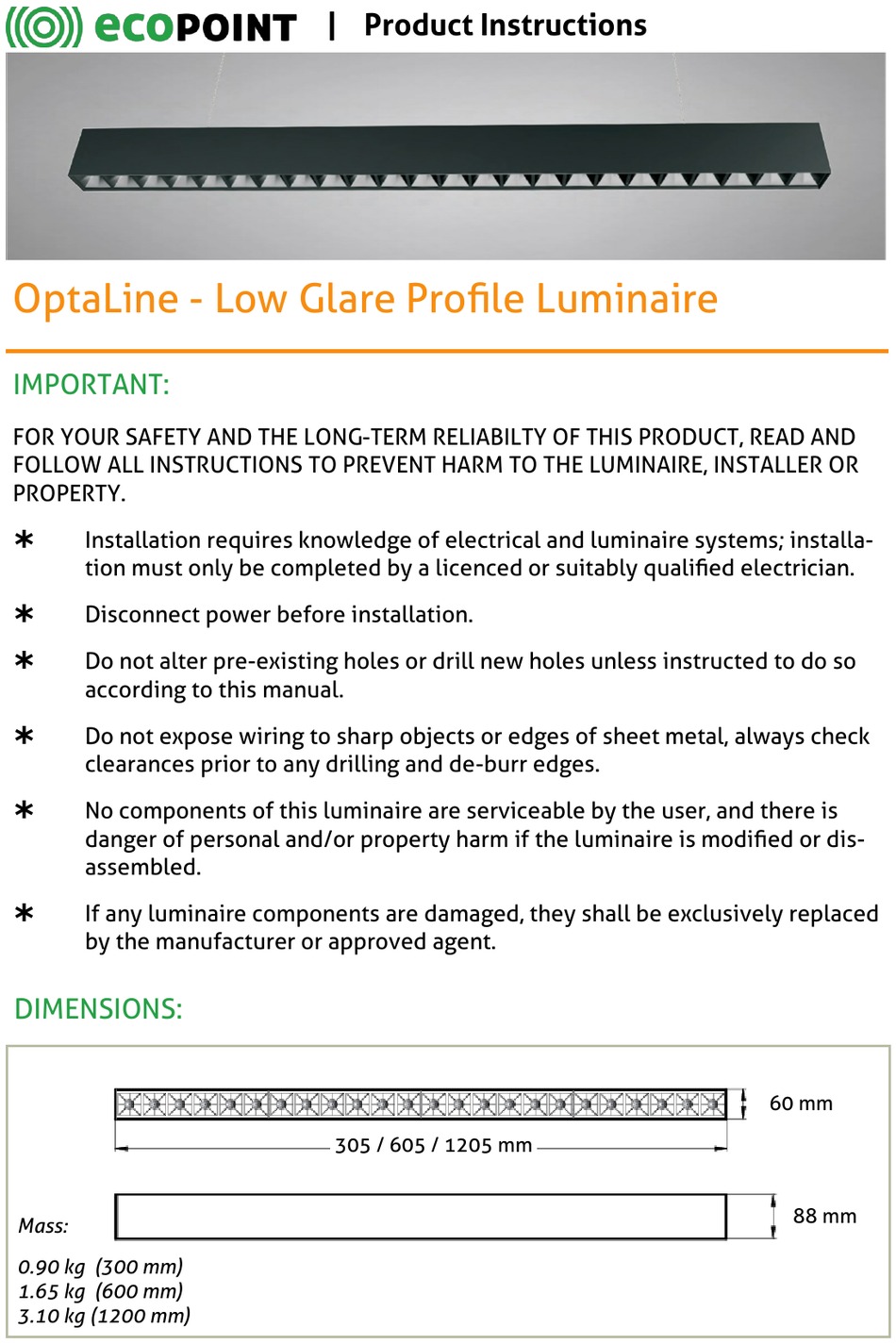

- Page 1 | Product Instructions OptaLine - Low Glare Profile Luminaire IMPORTANT: FOR YOUR SAFETY AND THE LONG-TERM RELIABILTY OF THIS PRODUCT, READ AND FOLLOW ALL INSTRUCTIONS TO PREVENT HARM TO THE LUMINAIRE, INSTALLER OR PROPERTY. Installation requires knowledge of electrical and luminaire systems; installa- tion must only be completed by a licenced or suitably qualified electrician.
- Page 2 STANDARD SPECIFICATIONS Power Factor ≥ 0.90 (230V) Electrical Input 220-240 V / 50-60 Hz Operating Temperatures - 10 to +40 deg. C Construction Extruded aluminium, PC lens Ingress Protection IP20 Impact Protection Warranty 5 years STANDARD MODELS Product Code Size Power Nominal Flux ELG300B10W840...
- Page 3 SURFACE MOUNTED SUSPENDED INSTALLATION INSTALLATION 216 / 516 / 1116 cm Open hole Plastic Expansion Screws Electric drill Plastic hammer Ensure power is turned off and remove luminaire from packaging. Accurately mark and screw hole. Press button below and pull rope ...
- Page 4 Ecopoint Limited guarantees this luminaire For any service or support enquiries, to be free from failures resulting from please call Ecopoint head office during faulty materials or workmanship for a normal business hours (Monday to Friday) period of 3 years (PMMA) /5 years (PC) or contact us via any of the means listed from the date of invoice.
