Summary of Contents for SBP Phoenix

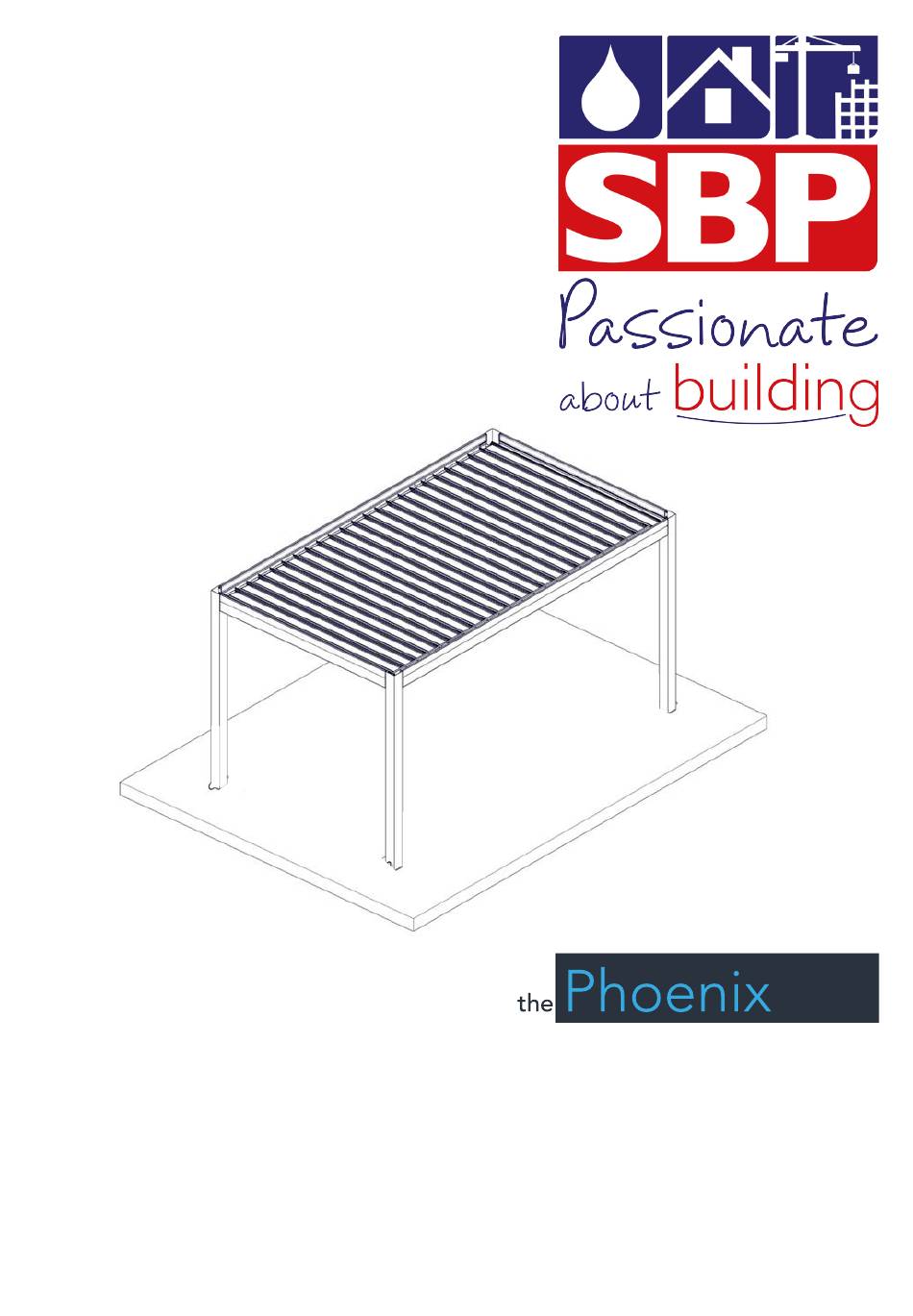

- Page 1 Assembly instructions Version: February 2022 User manual / Assembly instructions Deponti Louvered Pergola Type Pinela Version: EN – Februari 2022 www.deponti.com Assembly Instructions - the Phoenix www.sbpuk.info page:...
-
Page 2: Table Of Contents
This manual has been compiled with the utmost care, but we cannot be held responsible for any errors in this manual or the consequences thereof. Furthermore, all rights are reserved and no part of this manual may be reproduced in any way whatsoever. Assembly Instructions - the Phoenix page:... -
Page 3: Introduction
• Cordon off the assembly location so that others are kept at a safe distance. • Always place a ladder on a firm, stable surface. • Always wear the correct protective clothing (work gloves, dust mask, safety glasses, shoes with non-slip soles, etc.) during installation or servicing. • Mount the system against a firm, flat wall and on a flat and stable foundation. Ensure that the wall and the ground are clean and dry. Assembly Instructions - the Phoenix page:... - Page 4 • You must maintain and clean your canopy at least once a year. During this yearly maintenance make sure all fasteners are properly tightened. • When safety regulations and instructions are not followed correctly,we will not accept responsibility for damage(s) and injuries. Assembly Instructions - the Phoenix page:...
-
Page 5: Product Description
356.7 406.7 409.5 494.7 497.5 • The values given are according to the Beaufort scale ( 7 Beaufort = 13.9 – 17.1 m/s ≤ 0.18 kN/m2). • Calculated for the Phoenix with a front height of 250 cm according to Eurocode EN 1991-1-4 Terrain Category 4. Snow load (kg/m2): No of Panel Projection (cm) Projection (cm) Width (cm) (Freestanding) (Wall installation) 301.1... -
Page 6: Parts Overview
The control box works with 230V. The control box is located on rear Integrated gutter. (see below) The control box works with 230V. The control box is located on rear Integrated gutter. (see below) www.deponti.com Assembly Manual – Pinela Pergola page 6 www.deponti.com Assembly Manual – Pinela Pergola page 6 Assembly Instructions - the Phoenix page:... -
Page 7: Delivery Inspection
The canopy shown is an example. The type and number of components supplied depends on your order. Note: • Boxes with red label: Electronic parts like Control Unit Box. Remote Controls. • Boxes with blue label: Metal parts like U Brackets. Mounting brackets. Pillar caps. Assembly Instructions - the Phoenix page:... -
Page 8: Preparation For Assembly
If the rubber seals are deformed they can be straightened with a little heat from a hot air heater or hair dryer for example. Warranty is void if the Phoenix is not assembled and installed in accordance with the instructions. Assembly Instructions - the Phoenix... -
Page 9: Assembly
Assembly Manual – Pinela Pergola www.deponti.com Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 8 www.deponti.com Assembly Manual – Pinela Pergola page 13 Assembly Instructions - the Phoenix page: 5. Fix the (M4) self-drilling screw in the integrated gutter and wall mounting bracket. - Page 10 Washer M8 Stainless Steel Sealed Nut M8 Stainless Steel Add silicone sealant to edge face before pressing to corner piece to ensure a watertight seal Washer M6 Nut M6 4. Now continue to section 6.2 Assembly Instructions - the Phoenix page: 10...
-
Page 11: Post And Integrated Gutter Connection
2. Fix the aluminium pillar on both sides of the rear integrated gutter (the one with the black Lay the back integrated rear gutter profile on the ground and fix the two posts to it adding silicone sealant controlbox inside) with a M8 and M6 sealed nut . (check below image) where indicated to ensure a watertight seal. Assembly Instructions - the Phoenix page: 11 NOTE:... - Page 12 When you start placing the panels. always start with the first front panel. This first panel has a gasket (big rubber flap) for perfect insulation and has a clamp. The first panel should connect to the clamp. The clamp is already installed to the lateral side integrated gutter. Assembly Instructions - the Phoenix page: 12...
-
Page 13: Panel Installation
Assembly Manual – Pinela Pergola page 17 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 18 www.deponti.com Assembly Manual – Pinela Deluxe Pergola page 18 The control box should be placed in the rear integrated gutter. Assembly Instructions - the Phoenix page: 13... - Page 14 6. Connect the 20x40mm aluminium profile to the side of the panels. This is what creates the movement from the actuator to the panels. the actuator. Assembly Manual – Pinela Pergola www.deponti.com page 18 7. The housing of the panel pin should be from outside in as in image below. Assembly Instructions - the Phoenix page: 14...
- Page 15 Assembly Manual – Pinela Pergola page 19 www.deponti.com Assembly Manual – Pinela Pergola page 19 9. Secure the actuator to the 40x20mm aluminium profile with the snap ring. 40x20mm Profile – Panel Connection: 8mm Segment Assembly Instructions - the Phoenix page: 15...
-
Page 16: Perimeter Lightning Installation (Optional)
3. Place the perimeter lighting profile cap to the housing on the perimeter lighting profile. 4. Place the corner piece between the perimeter lighting profile in the corners. 4. Place the corner piece between the perimeter lighting profile in the corners. Assembly Instructions - the Phoenix page: 16... - Page 17 4. Place the corner piece between the perimeter lighting profile in the corners. 4. Place the corner piece between the perimeter lighting profile in the corners. Assembly Manual – Pinela Pergola www.deponti.com page 21 www.deponti.com Assembly Manual – Pinela Pergola page 22 Assembly Instructions - the Phoenix page: 17...
-
Page 18: Programming Instructions
Replace the battery with one 2430 Lithium 3V Battery. Replace the battery with one 2430 Lithium 3V Battery. nti.com Assembly Manual – Pinela Deluxe Pergola page 29 Assembly Manual – Pinela Deluxe Pergola www.deponti.com page 29 Assembly Instructions - the Phoenix page: 18... -
Page 19: Programming
• Middle button: Programming of lights. actuators/panels • Inside button: Resetting of units • Middle button: Programming of lights. Inside button: Resetting of units • Assembly Manual – Pinela Pergola www.deponti.com page 24 Assembly Instructions - the Phoenix page: 19... - Page 20 • Step 3: Turn off the power for 2 sec. • Step 4: Turn on the power after that the lights will go on • Step 5: Press the programming button on your transmitter. The lights have been deleted from your transmitter. Assembly Instructions - the Phoenix page: 20...
-
Page 21: Faq
Motor 5 Years with salty and chemical steam (port, coastline, Motor Parts 2 Years swimming pool, etc.). Electronic Remote Controller and Receivers 2 Years Electronic Cards, Circuits, Boards 2 Years LED Lights 2 Years Plastic Parts 2 Years Paint (Steel Components Special Parts) 1 Year Assembly Instructions - the Phoenix page: 21...
