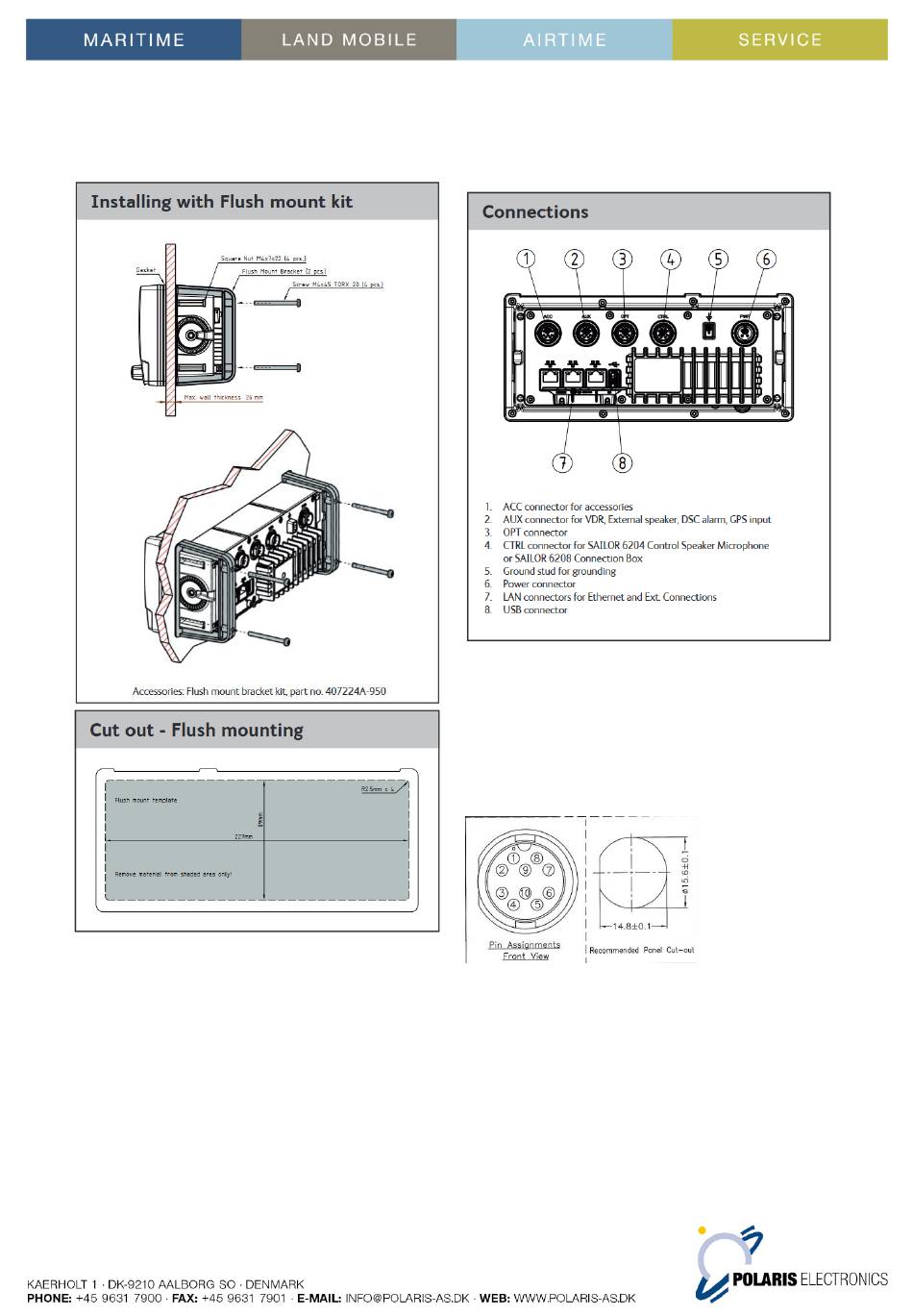

Flush mount install guide for SAILOR 7222 VHF/DSC standard installation
p/n POL 7222 FLUSH
and Handset
Note 1:
As the handset connector is on the backside of the
Control Unit, install the cable with flush connector
beside the Radio/Handset. This cable is 1 meter
long and the Flush connector need a hole as shown
here:
POL 7222 FLUSH Guide 2022 a03
For connections, see next page:
