Summary of Contents for CRALTECH CM185SL-3G

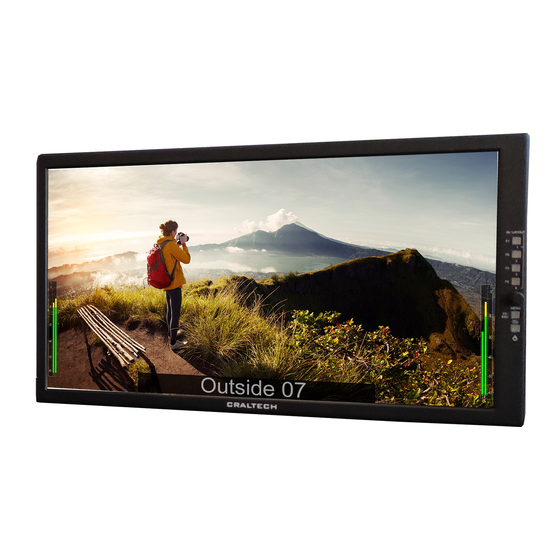

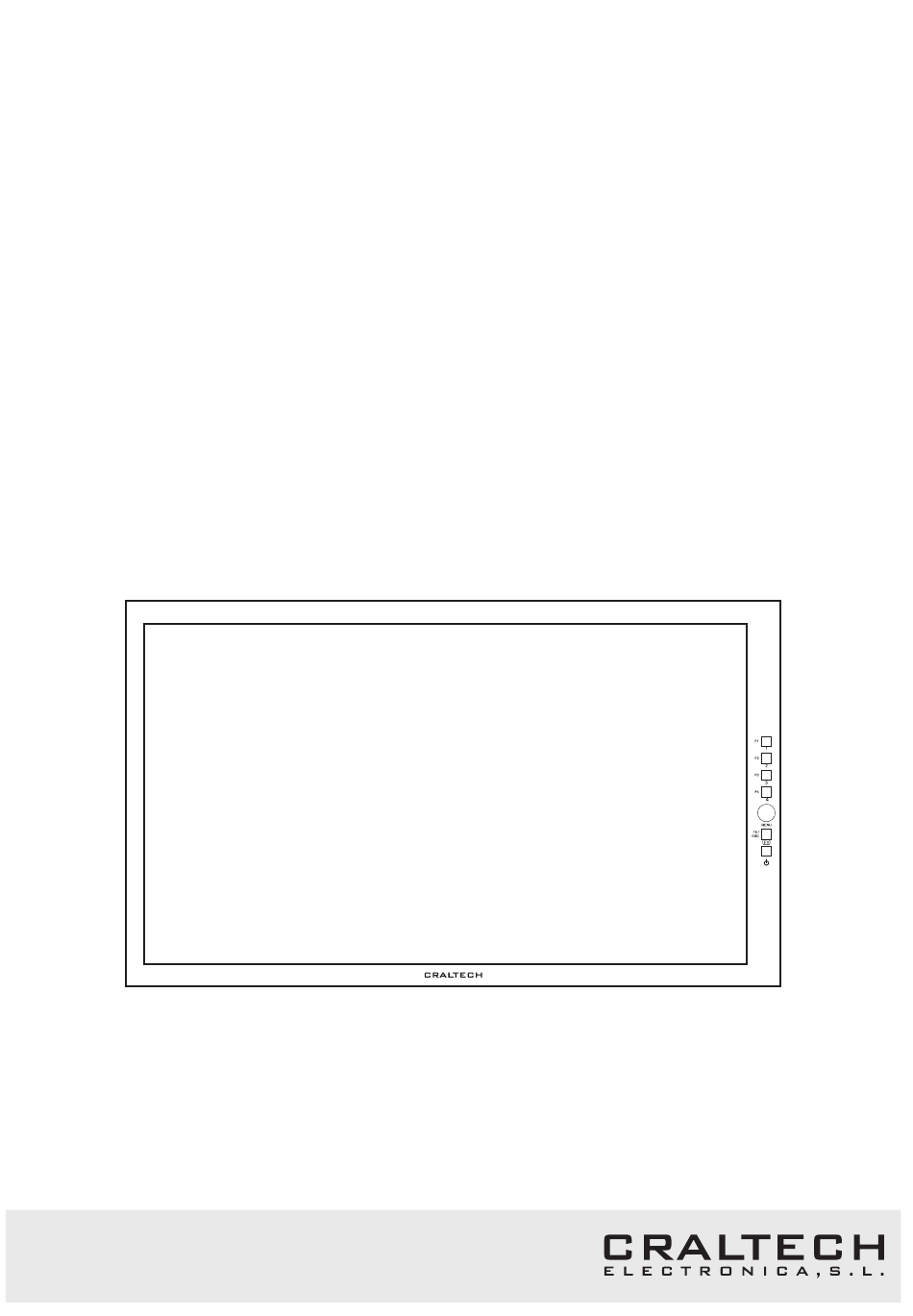

- Page 1 User Manual CM185SL-3G 18.5” LCD Monitor Version 1 Updated 09/09/2020 Please read this manual prior to installation and operation and save this manual for future reference.
- Page 2 CM185SL-3G IMPORTANT INFORMATION WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
-
Page 3: Table Of Contents
CM185SL-3G CONTENTS Controls and Connectors................. On Screen Menu....................Image...................... Color....................... Audio...................... Markers....................Scopes....................Input....................... Display....................Alarms....................10-11 Network....................System....................Specifications....................Dimensions......................Version 1 Updated 09/09/2020... -
Page 4: Controls And Connectors
CM185SL-3G CONTROLS AND CONNECTIONS DOUBLE FUNCTIONALITY DIRECT KEYS Direct Keys have double functionality. Main functions defined from factory and Custom F1 to F5 user configurable functions. To access to F1 to F5 function press (long press) key until lights and select the function. - Page 5 CM185SL-3G CONTROLS AND CONNECTIONS REAR CONNECTORS 1. Power supply: 12V DC 9. HDMI Input (Not HDCP support) 2. Power ON 10. CVBS (Composite Video) Input 3. DVI-D 11. 75 Ohm impedance (only switch nr 2) 4. SFP Slot 12. Audio Out 5.
-
Page 6: On Screen Menu
Backlight / Equipment ID / Encoder Sensitivity / Fn Keys Mode / Keys light / Tally UMD Source / Display On UMD / Display Squares / OSD Size / OSD x/y Position / OSD Transparency / Start Calibration / Display Data Conv / Factory Default / Update Firmware IMAGE MENU SFX-3G By Craltech 1. Press Menu Encoder to access Menu. And use the Encoder to IMAGE Brightness navigate through it. -
Page 7: Audio
CM185SL-3G ON SCREEN MENU AUDIO MENU SFX-3G By Craltech Selected an input: SDI1 IMAGE 1. Select the AUDIO menu and press the encoder to enter. Meters Mode COLOR 2. Press Menu Encoder to select the adjustment to be modified Meters Channels... -
Page 8: Markers
CM185SL-3G ON SCREEN MENU MARKERS MENU SFX-3G By Craltech IMAGE Selected an input SDI1 COLOR 1. Select the MARKERS menu and press the encoder to enter. Center Marker AUDIO Security Area 2. Press Menu Encoder to select the adjustment to be modified... -
Page 9: Scopes
CM185SL-3G ON SCREEN MENU SCOPES MENU SFX-3G By Craltech IMAGE Select an input SDI1 COLOR Waveform 1. Select the SCOPES menu and press the encoder to enter. AUDIO WFM Mode WFM x Position 2. Press Menu Encoder to select the adjustment to be modified... -
Page 10: System
Medium, Max. 1. Select Transparency adjustment and press the encoder to enter. 2. Use the Encoder up and down modify value. 3. Press Menu Encoder again to Exit adjustment. INPUT MENU SFX-3G By Craltech Select an Input IMAGE SDI1 COLOR UMD 1 ] 1. - Page 11 This function activates input 2 of SFP Module. This input will be multiplexed with SDI 2 of the monitor. HDMI / DVI Input Select between HDMI OR DVI. This input will be shown on the 3rd quadrant on quad-mode. DISPLAY MENU SFX-3G By Craltech IMAGE Layout 3G01...
- Page 12 CM185SL-3G ON SCREEN MENU ALARMS MENU SFX-3G By Craltech IMAGE Alarm per input COLOR Video Black 1. Select the ALARMS menu and press the encoder to enter. AUDIO Video Loss MARKERS Audio Loss 2. Press Menu Encoder to select the adjustment to be modified...
- Page 13 CM185SL-3G ON SCREEN MENU VIDEO BLACK COLOR Used to select Video Black alarm color. BLACK WAITING TIME Used to select Video Black alarm waiting time (period before the alarms is activated). Values form 0 to 60s. VIDEO LOSS MODE Video Loss Mode alarm can be activated per input or for ALL inputs. Video Loss Mode values are: Per Input, ALL and OFF.
- Page 14 CM185SL-3G ON SCREEN MENU NETWORK MENU SFX-3G By Craltech 127.000.000.002 IMAGE LAN IP COLOR IP MASK 255.255.255.000 1. Select the NETWORK menu and press the encoder to enter. GATE IP 127.000.000.001 AUDIO 2. Press Menu Encoder to select the adjustment to be modified SOFT IP 127.000.000.003...
- Page 15 CM185SL-3G ON SCREEN MENU SYSTEM MENU SFX-3G By Craltech Backlight IMAGE COLOR Equipment ID 1. Select the SYSTEM menu and press the encoder to enter. Encoder Sensitivity IMAGE0 AUDIO 2. Press Menu Encoder to select the adjustment to be modified...
-
Page 16: Specifications
CM185SL-3G SPECIFICATIONS 18.5” LED Backlight Display size 1920x1080 Resolution 213 (per one triad) x 213 Pixel Pitch H 178, V 178 Viewing angle 350 cd/m Brightness 1000:1 Contrast 16.7M Color 2 x 3G/HD/SD-SDI inputs (2 x BNC) SDI Inputs 1080p (60 / 59.84 / 50 / 30/ 29.97 /25 / 24 / 23.98 / 25sF / 24sF/ 23.98sF) SDI Input Formats 1080i (60 / 59.94 / 50) -
Page 17: Dimensions
CM185SL-3G DIMENSIONS 446 mm 50 mm (*) IMPORTANT: Screews must not exceed 8 mm depth into cover. Version 1 Updated 09/09/2020...
