Raex YE2116 Quick Start Manual

Close Limit Setting
Press the programming button and the Down button
simultaneously. The Down button should be pressed
gently. The LED on the motor will illuminate
and the motor will shunt to acknowledge.
Select the desired position, pressing the Up
and Down buttons gently. Function 1 & 2
buttons will "inch" the motor
Press the programming
button on the rear of the
transmitter or the setting
button on the motor to
store limit
Limit Switch Deleting
Press the programming button and the Stop button
simultaneously. The LED on the motor will briefly illuminate
and the motor will shunt to acknowledge all limits have been
deleted
Touch Control On / Off - Curtains Only
To turn On the touch control facility press the Stop and Up button
simultaneously.
To turn Off the touch control facility press the Stop and Down button
simultaneously.
This product carries a one year warranty from date of invoice. Damage caused
by misuse or disassembly will be excluded from any warranty.
After Sales Support
RAEX UK Ltd.
Europa House, Wharf Road, Burton on Trent, Staffs. DE14 1PZ.
Tel: 01283 536700 Fax: 01283 536777
www.raexmotors.co.uk email: sales@raexmotors.co.uk
Up
Inch
Inch
Up
Down
Down

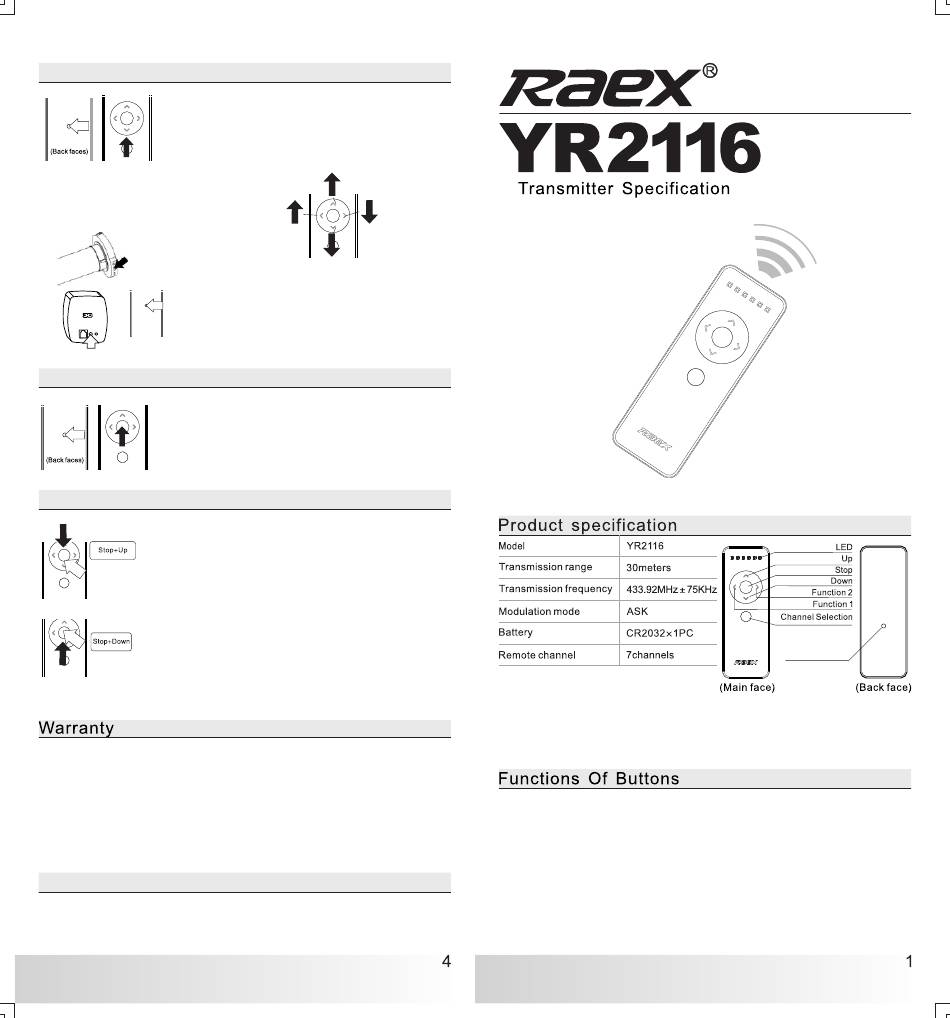

[Up] [Stop] [Down] respectively transmits the command to open, stop &
close for the selected channel.
[Channel Selection] is used to scroll through and select channels
[Programming Button] is used to programme transmitter to motor and for
setting limits. Please refer to <Remote Control Setting>
[Function 1] & [Function 2] are used as intermediate stop functions for
opening and closing curtains, venetian blind tilting and for other systems
with the partial open / close functionality. Please refer to product
instructions for available functionality.
Programming
Button
