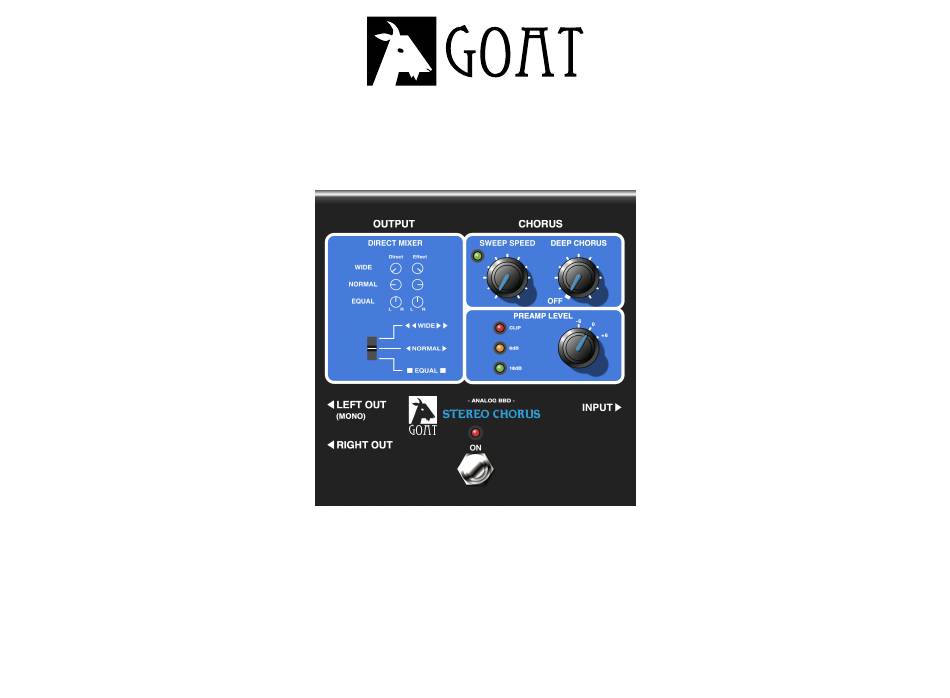

- Page 1 - BLUE SERIES - STEREO CHORUS MANUAL GOAT-DESIGN.JP 2022...
- Page 2 Controller Description - BLUE SERIES - ③SWEEP SPEED: LED flashes to indicate the set speed. The controller ⑤⑤DIRECT MIXER: controls the character and depth of Determines how the chorus the chorus effect. setting is mixed in stereo or ④DEEP CHORUS: Infinitely variable mono. By switching these normal delay for normal chorus and switches, the depth of the long delay for a distinct dupla chorus effect can be adjusted effect. in three levels. ①PREAMP LEVEL: Used to set the best operating level of the internal circuitry to minimize distortion and noise. Changing this setting does not change the output signal level. ② HEADROOM LED: Used to check the internal signal level. Adjust the PREAMP LEVEL so that the red color of the LED lights up only momentarily when the guitar is played hard. Reference: Humbucking PU "0". : Single PU "+6" or "0 ⑥ON/OFF LED: Lights up when the effect is on and turns off when the effect is bypassed (effect off). GOAT BLUE SERIES / STEREO CHORUS...
- Page 3 Operation - BLUE SERIES - If you want to use the STEREO CHORUS right away, follow the Connect a guitar or keyboard output to the INPUT jack. If you instructions in this chapter. However, we strongly recommend are using a GENERATOR, connect its output to the STEREO that you read the rest of the manual immediately to fully CHORUS INPUT (MONO). 5. understand and use the capabilities of this sophisticated The STEREO CHORUS has an amplification level of 1, which signal processor. means that the input signal level is the same as the output level, so set the sound system volume to the same level as 1. make sure that the power to the amplifier or other device when the STEREO CHORUS is not in use. 6. to which you are connecting is turned off before connecting the STEREO CHORUS. 6. turn on the STEREO CHORUS before turning on the Note: Use the recommended AC adapter. amplifiers in order to avoid noise from the speakers when the Use alkaline batteries, the operating time is approximately 2 power is turned on. hours. You are now ready to use the STEREO CHORUS in normal Connect the OUT jacks of the STEREO CHORUS to two chorus mode. Adjust the PREAMP LEVEL so that the red LED channels of a stereo amplifier or mixer, or to two guitar turns on for a moment when you play the guitar hard. amplifiers with their respective cables. If you need a mono Reference: Humbucking PU "0". output, connect only the LEFT OUT (MONO) output jack to Single PU "+6" or "0 the sound system with a single cable. 3. Set the PREAMP LEVEL to zero and set the DEEP CHORUS knob to the OFF position. If using mono, set the DIRECT MIXER mixer to the NORMAL or EQUAL position. 4. GOAT BLUE SERIES / STEREO CHORUS...
- Page 4 CHORUS The PREAMP LEVEL controller is used to adjust the level of The center delay time can be infinitely varied from 20 ms the incoming audio signal to the internal gain of the STEREO (normal) to 40 ms (long) with the DEEP CHORUS. The sweep CHORUS. Setting it to the best position will minimize both oscillator varies this delay in two ways, from 20 to 24 distortion and noise. The output level does not change at any milliseconds or from 40 to 44 milliseconds. The normal position. chorus delay time is just long enough to create a true stereo image, but the longer chorus delay creates a stronger effect, The HEADROOM LED indicates the level of the signal passing giving the impression that the two sources are independent. through the internal circuitry. The red LED indicates that the level is approaching the distortion point and should not be lit The SWEEP SPEED controller controls a low-frequency too often. If the red LED lights frequently, turn down the oscillator (LFO) for varying the time delay. The frequency of PREAMP LEVEL controller one step. The yellow LED indicates this sweep oscillator can be set from 1 Hz to 0.25 Hz (from the best signal level with the least noise. If the yellow LED one cycle per second to one cycle every four seconds), and does not light up at all, turn up the PREAMP LEVEL controller the speed is indicated by a blinking SWEEP SPEED LED. The one step. slower the speed, the smaller the phasing effect, but the faster the speed, the stronger the vibrato-like rhythmic effect For normal line-level signals, 0 is generally the best position. If and the larger the pitch change. The nature of the chorus you are connecting a guitar directly, set it to the +6 position. effect is also greatly affected by the output switch setting. If you are connecting a generator, set the PREAMP LEVEL (Please refer to the DIRECT MIXER description.) controller to -6. In either case, watch the LEDs and toggle the switches to find the best operating point. *Maximizing DEEP CHORUS increases the speed to 50%. Note: If distortion is felt even at the -6 position, turn down the level (output) of the effect system used in the previous stage. GOAT BLUE SERIES / STEREO CHORUS...
- Page 5 - BLUE SERIES - Output (DIRECT MIXER) Explanation of Stereo Operation Use the MIXER switch to preset the ratio of direct to effect ◀◀WIDE ▶▶ mix. LEFT OUT Direct signal (100%) RIGHT OUT Effects signal (100%) How do I get a process signal only? Set the MIXER switch to WIDE (STEREO) and use only the ◀NORMAL▶ RIGHT OUT. If you want to use this signal, you will need an LEFT OUT Direct signal plus -10db effect signal external mixer or other equipment. RIGHT OUT Direct signal with -10db to effect signal Note: The MIXER circuit is designed so that the apparent ■EQUAL■ volume is the same at all switch positions; in the WIDE LEFT OUT 50% mix of direct and effect signals (STEREO) position, the input and output signal levels are the RIGHT OUT 50% mix of direct and effect signals same (gain 1), but when set to mono, the output may have peaks that are higher than the input signal. If the signal clips How to apply while in the mono position and the red "CLIP" HEAD ROOM For the best chorus effect on clean (undistorted) guitar or LED lights up, set the PREAMP LEVEL controller lower or piano parts, use the SWEEP SPEED setting at the 12 o'clock reduce the input signal level if necessary. position (1/2Hz). For distorted guitar sounds, increase the sweep speed to deepen the effect even more. You can also Note that even when the effect is off, the audio signal will still use DEEP CHORUS to extend the spatial presence. pass through the low-noise buffer circuit and must be energized or there will be no sound. The apparent volume does not change when switching from chorus to bypass. The 3 dB apparent volume increase that normally occurs when the chorus signal is replaced with a direct signal in the mix is automatically compensated for. GOAT BLUE SERIES / STEREO CHORUS...
- Page 6 Function Description - BLUE SERIES - Principle of Operation The purpose of a chorus is to make a single instrument sound like two or more instruments with well-defined pitch and timing. Just as a string section can be made to sound richer and more beautiful than a single violin with its finely tuned pitch and timing, a guitar or keyboard can be made to sound more lifelike by applying a chorus. The chorus works by splitting the instrument's sound into two different signals. The SWEEP oscillator affects the amount of time delay, which determines the depth of the chorus. The shorter the delay, the higher the pitch of the signal; the longer the delay, the lower the pitch. And the faster the SWEEP oscillator behaves, the faster the delay lengthens or shortens, and the greater the pitch shift. GOAT BLUE SERIES / STEREO CHORUS...
- Page 7 When cleaning the exterior, wipe it lightly with a soft, dry cloth. them carefully and observe them. When plugging in or unplugging the AC adapter from the power outlet, be sure to hold the plug. Observe the following instructions When not using the product for a long time, remove the batteries to prevent them Do not disassemble or modify this equipment. from leaking. Never attempt to repair or replace parts that are not specified in the instruction Unplug the AC adapter from the power outlet when not using it for a long time. manual. Always consult with your dealer or launcher. Do not use an AC adapter other than the specified one. Always plug the AC adapter into a 100 VAC power outlet. Do not wire the product together with the power cords of other electrical equipment. If there is dust on the plug of the AC adapter, wipe off the dust. Connect to an outlet that matches the rated power consumption of the product. Failure to do so may result in electric shock or short circuit. Do not expose the battery to excessive heat sources (sunlight, fire, etc.). Install the product near an outlet so that you can easily reach the AC adapter plug. Do not apply excessive force to switches, knobs, etc. Do not apply excessive force to switches, knobs, etc. as this may cause malfunction. If any of the following occurs, immediately turn off the power and unplug the Do not use benzene, thinner, compound, or strong flammable polishers to clean the AC adapter from the power outlet: exterior. ○ When the AC adapter is damaged ○ When a foreign object enters the product Do not place the product on an unstable surface. ○ When the product malfunctions or breaks down * When repair is required, contact Do not place the product on an unstable surface, as it may fall and cause injury or the dealer. damage to the product. Do not ride on or place heavy objects on this product. Never do anything other than what is described in the instruction manual for repair or Doing so may cause the product to fall or be damaged, resulting in injury or damage replacement of parts. to the product. Do not forcibly bend the AC adapter cord or place it near equipment that generates heat. Do not place heavy objects on the AC adapter cord. Doing so may damage the cord, resulting in electric shock or fire. GOAT BLUE SERIES / GENERATOR...
- Page 8 Specifications - BLUE SERIES - INPUT Impedance・・・・・ 2MΩ min. Maximum level・・・・・ 2.8 Vrms(+9dBv) CHORUS Frequency Response ・・・・・ +1 to -3dB at 8KHz Sweep Speed (Normal) ・・・・・ .25 to 1Hz Sweep Speed (Long)・・・・・ .12 to .5Hz Pitch change(Normal)・・・・・ about 1/4 semitone S/N Ratio・・・・・ 90dB or better STEREO OUTPUTS MIXER 3 presets Impedance・・・・・ 100 ohms Size W126, D126, H50 (mm) CURRENT CONSUMPTION 200mA (max.) Power supply (sold separately) AC adapter 9V DC center-minus *These specifications are subject to change without notice. GOAT BLUE SERIES / STEREO CHORUS...
