Summary of Contents for ATUMTEK ATMR088

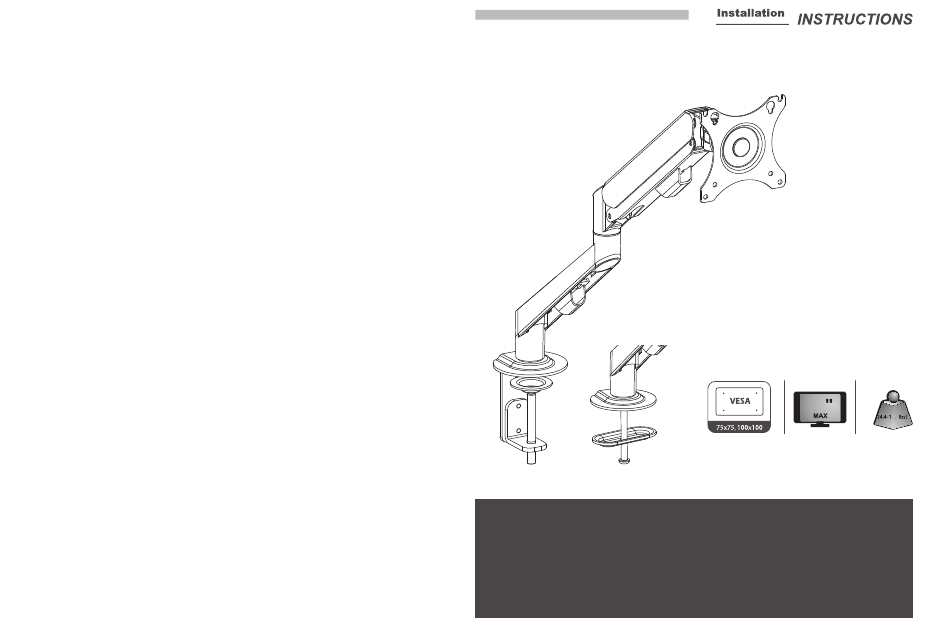

- Page 1 2-9KG EACH ATUMTEK Single Monitor Gas Spring Desk Mount Stand...
-
Page 2: Warning Statements
WARNING STATEMENTS Warning Prior to the installation of this product, the installation instruction must be read and completely understood. Failure to do so may result in personal injury, property damage or voiding of factory warranty. Do not install on a structure that is prone to vibration, movement or chance of impact. Reinforce the structure as required before installation. -
Page 3: Parts Included
PARTS INCLUDED M8×16（×1） M6×10（×2） M5×10（×4） M4×10（×4） （×4） 4MM（×1） 5MM（×1） 1（×1） 2（×1） 3（×1） 4（×1） 5（×1） 6（×1） 7（×1） Stand Base Long Bolt Clamp Connector Anti-slip Pad C- Clamp Gas Spring Arm Long Bolt Attachment Plate... - Page 4 Step 1 Mount the Base on Desk Desk Side Installation (Desk Thickness ≤ 8 cm.) First install and fasten the clamp connector (2) under stand base (1) together, then stick anti-slip pad (6) under them. Now assembly the clamp connector with C- clamp (3) together. There are 2 positions to choose. Finally mount the stand base on desk side and fasten it.
- Page 5 Desk Grommet/ Hole Installation (Desk Thickness ≤ 6 cm.) The Hole Size: 10-60mm For desk with grommet hole or hole, stick anti-slid pad under stand base, then attach PARTS (4) and (5) together, finally fasten the bolt to mount the base on desk. Step 2 Mount the Arm Mount gas spring arm on the base and tighten the screw to fasten monitor arm on stand base firmly.
- Page 6 Step 3 Install the Monitor on Gas Spring Arm Install 2 screws (C/D) and washers (E) on the upper VESA mounting holes first. * only half screw the screws on so that monitor can be hanged on VESA plate safely. Then hang the monitor on arm and fasten the top 2 screws, finally install the lower 2 screws on firmly.
- Page 7 Step 4 Adjust the Arm Keep the arm in horizontal position, then use the hex wrench to adjust the height tension of the gas spring arms, to ensure the arm can support different monitors horizontally at any position. * Be sure to keep the arm in horizontal position during adjustment. Otherwise, it would be difficult to adjust the mount.
-
Page 8: Step 5 Cable Management
Step 5 Cable Management Insert cables management covers on arm to hold cables. ① Step 6 Adjust Flexibility and Free Rotation If it’s too tight or too loose to rotate or tilt monitor, adjust the screws on monitor mounting head to reduce or increase damping to enable free rotation. 180°... - Page 9 Contact us via Facebook Messenger (Recommended): m.me/atumtekproducts www.atumtek.com support@atumtek.com If you find our product satisfactory, please encourage us by sharing your user experience online. If you need help with this purchase, please do not hesitate to contact us. Prolinx GmbH Brehmstr.56, 40239 Duesseldorf Germany...
