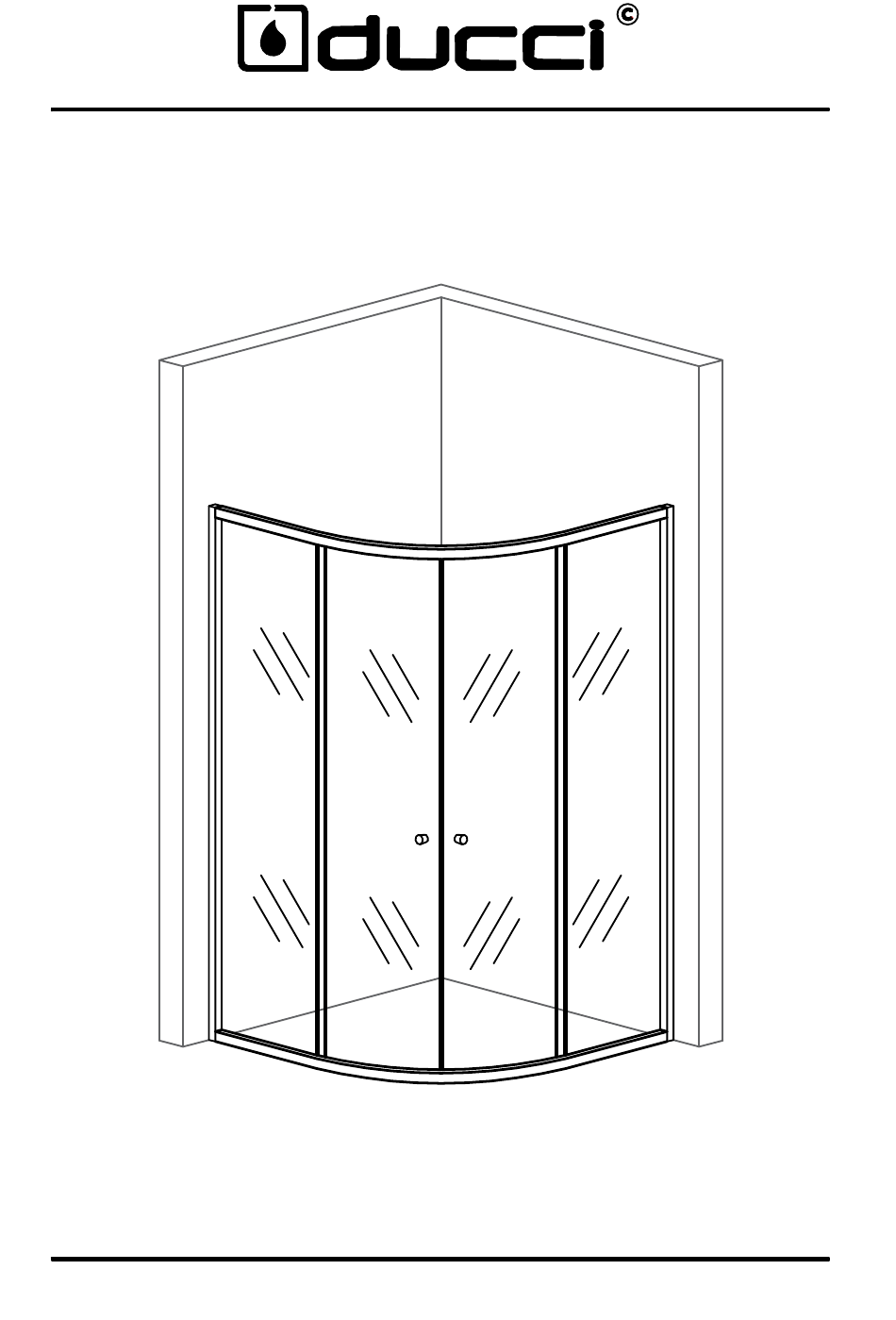

- Page 1 Tüm Hakları Saklıdır. Instructions for Installation XTREM DO 22 SLİDE SYSTEM Dukab Yapı Malzemeleri San.ve Tic.Ltd.Şti...
-
Page 2: Necessary Tools
Necessary Tools Before you start: ●WARNING: Please read these instructions carefully before starting the installation. Incorrect installation may cause serious malfunctions during use. Always follow the instructions and keep them for future reference. ●The shower enclosure is designed to allow an adjustment of 20 mm when installed on nonparallel walls”. -
Page 3: Installation
Installation Adjust two wall profiles on the edge of the shower tray to ensure that there are even not less than 10 mm. Use a water gauge to ensure that both of them are vertical. Making sure you do not move the wall profiles, use a marker to mark the hole points on the wall. - Page 4 Installation In an empty area, place fixed glasses into the channels of rail profiles and glass profiles. To create the frame, fix the glass profiles onto the ends of the upper and lower rail profiles with screws. Insert the glass profile on both sides into the wall profiles.
- Page 5 Installation On the frame you just created, align the holes on the wall profiles with the dowels in the holes on the walls, and use screws to fix them on the wall. After inserting and adjusting the profiles, drill the glass and wall profiles and fixed them to each other with screws.
- Page 6 Installation Remove the screws on the bearings, put them in the holes on the glass and tighten the screws. On the upper section, insert the bearing wheels into the rail channel. On the lower section, press on the spring-loaded pin to insert the bearing rings into the profile channel.
- Page 7 Installation Installation method for Insert magnetic seals onto the door glass. water sealant Turn the adjustment screws on the bearings to make sure that they get into contact in a way that there is no gap between the seals. 10. After the adjustments of magnetics and doors are complete, you should place the stopper into where the bearings are and attach it to the profile with a help of a screw.
- Page 8 Installation Thread the handle pins through the holes in the glass of door, and tigthen the screws to fix it. Once installation is done, apply silicone sealant on the connection points outside the shower enclosure. Note: Before installation, make sure that the environment is absolutely clean and dry.
-
Page 9: After The Installation
After the installation DON'T USE FOR HOURS! www.ducci.com.tr +90 (212) 435 65 77 The product must not be used for the following 24 hours after the installation, therefore once the installation is done, '' DO NOT USE'' scalant must be applied to the shower enctosure , where it can be easily seen The brand label must be applied to the desired area by removing the anti adhesive. - Page 12 FACTORY - CENTRAL Ömerli Neigh. Burçhan Street No:15/1 Hadımköy / İstanbul / Türkiye T : +90 212 435 65 77 +90 212 435 97 46 F : +90 212 435 96 81 All rights reserved. info@ducci.com.tr / www.ducci.com.tr...
