THUNDERPOLE T-3000 Owner's Manual

Multi standard programmable 27 mhz cb mobile transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T-3000
MULTI STANDARD PROGRAMMABLE
27 MHz CB MOBILE TRANSCEIVER
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for THUNDERPOLE T-3000

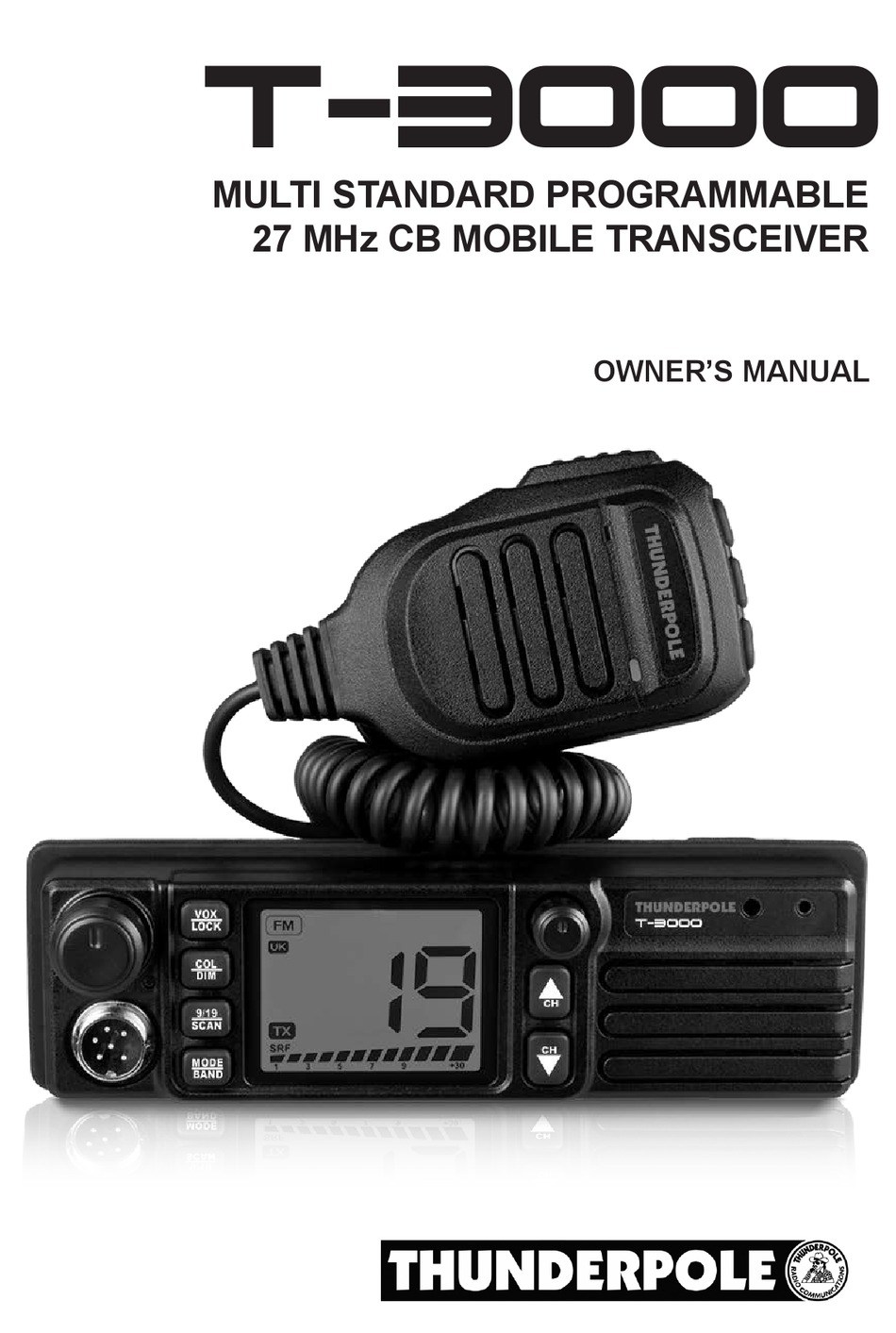

  • Page 1 T-3000 MULTI STANDARD PROGRAMMABLE 27 MHz CB MOBILE TRANSCEIVER OWNER’S MANUAL...

  • Page 2: Declaration Of Conformity

    DECLARATION OF CONFORMITY With the present declaration, we certify that the following products : THUNDERPOLE T-3000 comply with all the technical regulations applicable to the above mentioned products in accordance with the Radio Equipment Directive 2014/53/EU (RED) and 2011/65/EU (RoHS)

  • Page 3: Contents Of The Box

    The THUNDERPOLE T-3000 is a CB transceiver using advanced hardware and software design, it includes a special multi-standard programmable circuit, which allows you to program the frequency band and operating mode in compliance with the regulations valid in the various European countries.

  • Page 4: Controls And Operation

    Controls and operation Front Panel ON/OFF/VOLUME Control Use this knob to switch radio ON and OFF, as well as to adjust the receiver volume to the desired level. To adjust the receiver volume when no signals are being received on the operating channel, open the SQUELCH and then adjust the receiver volume using the background noise as a reference.
  • Page 5 Controls and operation MODE / BAND Button A short press of this button whilst the radio is programmed to the UK frequency band will change the band between UK, EU(FM) and EU(AM) frequency bands. If the radio is programmed to a different band that allows AM/FM operation, this button will alternate between AM and FM mode.

  • Page 6: Rear Panel

    Controls and operation Rear Panel 13. DC Power Socket Power cord input for 12v (13.8v) or 24v connection. 14. EXT (External Speaker) Jack This 3.5mm jack is for connecting an external speaker (optional). 15. Antenna Socket Antenna connector. Refer to the section INSTALLATION OF THE ANTENNA (Page 5). Microphone 16.

  • Page 7: Vehicle Installation

    Vehicle Installation Installation Before installing the main unit in the vehicle, check and select the most convenient location, in order that the radio will be easy to reach and comfortable to operate, without obstructing any of the vehicles controls. The radio can be mounted using the standard bracket or DIN mounting cage. If mounted in a DIN slot in the vehicle the supplied release keys will need to be used to release the radio.
  • Page 8 Frequency band selection / table Frequency Band Selection / Programming Your Thunderpole T-3000 CB radio must be programmed and exclusively used on a frequency band allowed in the country where it is used (see below). When the radio is switched ON, the current programmed frequency band will be displayed on the LCD display (7).

  • Page 9: User Information

    User information Attention ! This radio has been pre-programmed on the UK frequency band (UK 40CH FM 4W) which is for use in the UK only. For use in other countries, please refer to the frequency band table on page 6. User Information in accordance with art.

  • Page 10: Specifications

    Specifications General Channels 80 AM / FM (refer to the frequency band table on page 6) Frequency range 27 MHz Citizen Band Frequency control P.L.L. Operating temp. -10°/+60°C DC input voltage 13.8 / 24V DC ±5% (Auto Switching) Size 187mm (W) x 56mm (H) x 85mm (D) Weight 564 gr. Receiver System Double conversion, CPU controlled super-heterodine 1° 10.7 MHz / 2° 450 KHz...
  • Page 11 Notes...
