Summary of Contents for Ofuzzi Cyber

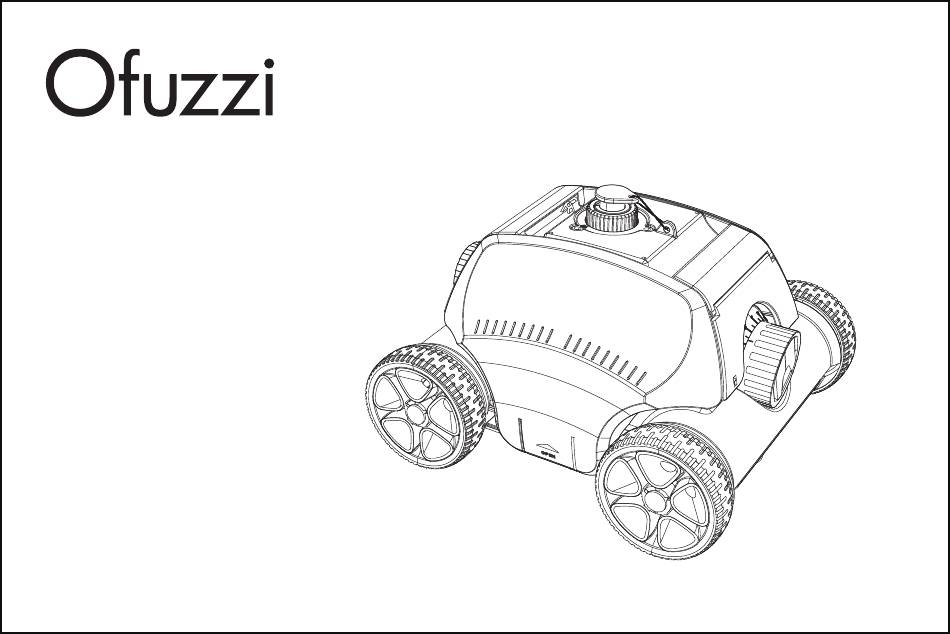

- Page 1 Cyber User Manual Cordless Robotic Pool Cleaner Thank you for purchasing Ofuzzi Cordless Robotic Pool Cleaner If you have any questions or issues, please contact us for customer service.
-
Page 2: Table Of Contents
Table of Contents Important Precautions I. Introduction II. Appearance&structure III. Specifications IV. Operation instruction V. Trouble shooting VI. Packing list VII. Warranty - 01 -... -
Page 3: Important Precautions
Important Precautions Do not power on the cleaner when it is out of the water. Strictly prohibit using the cleaner beyond its operating conditions. Please read the manual carefully, and use it according to the manual. We have no responsibility for any loss or injury caused by improper use. Use the accessories recommended or sold by the manufacturer only. - Page 4 Ideal for Residential Flat Bottom Pools Please note that it’s not an all-rounder For all above / half above ground pools For Inground Pools of Flat Bottom (Water Depth < 6.6ft) Not for deep shallow ends, Can’t climb walls or stairs 15°...
-
Page 5: Introduction
Introduction The robotic pool cleaner Cyber is a new type of rechargeable automatic cleaning equipment for pools with the function of automatic beaching. The cleaning function is upgraded, and the half-way turn-back function is activated for 5-12 times every 20 times the wall is hit, so that the center of the swimming pool is no longer a dead corner for cleaning. -
Page 6: Appearance&Structure
II. Appearance&structure Swing plate Filter tray Chassis Floating handle Brush - 05 -... -
Page 7: Specifications
III. Specifications Name: Cordless Robotic Pool Cleaner Model: Cyber Rated input voltage/frequency of charger: 100Vac-240Vac, 50/60Hz Rated output voltage of charger: 12.6V Rated output current of charger: 1.8A Working power Appr. 50W Working time: max. 120min for one cycle Battery capacity:... -
Page 8: Operation Instruction
Operation instruction Precautions Install the brush before use to avoid possible dirt leaks. Please ensure that the top cover of the cleaner is tightly assembled to its chassis. - 07 -... - Page 9 After turning on, the cleaner must be placed in the pool within 20 seconds Put into or lift out of the pool with the cleaner bottom towards the wall to avoid any possible scratches to the pool. Power off the cleaner after use. Do not touch the wall to avoid scratching the wall or damaging the cleaner when putting into or lifting out of the pool.
- Page 10 Lift the handle or clips of the cleaner out from the pool. Quick operation Plug in the cleaner with the supplied adapter and charging line to charge the battery. Turn the switch knob to OFF before charging. Clean the charging port before charging. Keep the machine charging port and the adapter dry when charging.

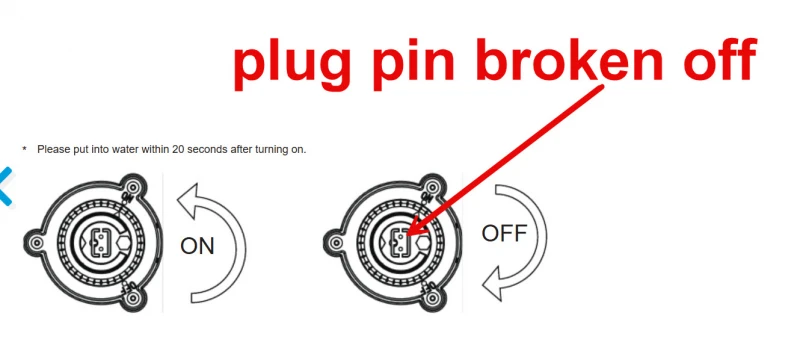

- Page 11 Turn the switch knob to ON, the cleaner is power-on and the indicator light is steady blue, then put it into water. About 15 seconds after power-on, the cleaner begins to work, and the blue light flashes. When battery power is low, the cleaner will move close to the pool wall. The red-light fast flashes. The cleaner stops running when it runs out of battery.
- Page 12 Setting nozzle angle and cleaner route The nozzles of the cleaner are marked with angles (0°-40°). The cleaner moves in an approximately straight line when the nozzle angle is 0°. The cleaner moves in a more curved line at a larger angle from 0°-40°. Setting 1: default setting: 0°-20°, for most of pools.
- Page 13 Setting 3: 20°-20°, for round pools. Nozzle angle Running route Note: These are the recommended settings. Different settings may work better for your pool. Clean the filter tray Open the cleaner by the clips - 12 -...
- Page 14 b. Take out the filter tray c.Clean the filter tray and chassis d.Reassemble the cleaner e.Clap on the clips - 13 -...
-
Page 15: Trouble Shooting
V.Trouble shooting Symptom Possible reason Solution The cleaner does not work and the red Internal fault Contact after-sales service indicator light slowly flashes The cleaner does not work and the blue Pump protection Re-start the robot indicator light flashes Charge the robot and in case it does not The cleaner does not work and the Battery protection indicator light does not flash... -
Page 16: Packing List
Packing list Item Name QTY (pc) Remark Cleaner body In carton Charger In plastic bag User manual In plastic bag Brush In plastic bag Tow rope In plastic bag Floating handle In plastic bag VII. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the factory. Warranty information: The warranty period is 12 months of use on the motors and electrical parts from the date of purchase and established under the terms of the Consumer Code and the legal guarantee against hidden defects and vices in any case applies in the conditions of the articles in... - Page 17 We will repair or replace any defective product (due to manufacturing fault) within the warranty period. Purchase Name: Order Number: How to Return Your Ofuzzi Product Contact support@ofuzzi.com with your order number. Date of Purchase: We will issue you a return label for your return.
- Page 18 Shenzhen Jiuheyu Technology Co., LTD. support@ofuzzi.com Room 205, B11 Building, Yintian Industrial Zone, Yantian Community, Xixiang Street, Bao'an District, Shenzhen, China 518000...
