JENIX DSC-Q01 User Manual

1 axis display counter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DSC-Q01 (1axis display)
user's manual
DONG SAHN JENIX CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-Q01 and is the answer not in the manual?

Questions and answers

Summary of Contents for JENIX DSC-Q01

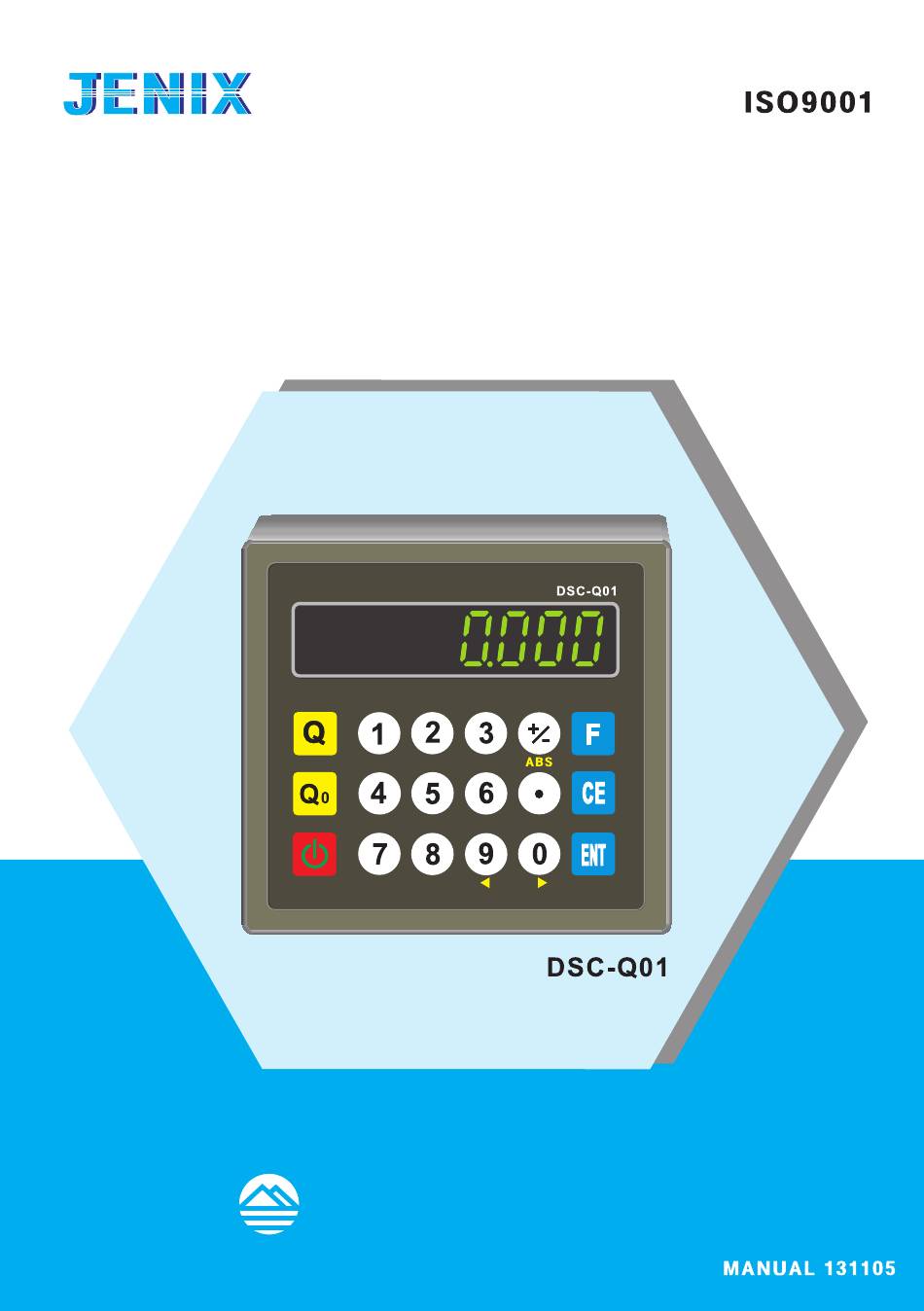

  • Page 1 DSC-Q01 (1axis display) user’s manual DONG SAHN JENIX CO., LTD.

  • Page 2: Table Of Contents

    Contents Description of DSC-Q01 counter 1. Front side 2. Rear side 3. Connection 4. Key description Basic operation 1. Input (preset) 2. Display zero 3. ABS/INC conversion 4. ABS number designation Function 1. Changing resolution (1) 5/1000 (2) 1/1000 (3) 1/100 (4) 5/10000 2.
  • Page 3 6. Initializing (1) ABS initializing (2) Program initializing 7. Test Caution and trouble shooting 1. Caution 2. Trouble shooting 3. Pin information...

  • Page 4: Description Of Dsc-Q01 Counter

    DSC-Q01 counter...

  • Page 5: Front Side

    1. Front side Keys Description shows position value 1. Display area select present axis 2. Axis selection key make the display value zero 3. Axis-Zero key 4. Power key turn on / off the power 5. Number key 0~9 numbers 6.

  • Page 6: Rear Side

    2. Rear side Keys Description DC adapter input 1. Power input to connect with a scale 2. Connector...

  • Page 7: Connection

    3. Connection Power socket a linear scale...
  • Page 8 4. Description of the keys Keys Description Axis key select axis Axis Zero key make the axis zero Number key input values Dot key decimal point +/- key + - value conversion Function key to call function menu Cancel key cancel present processing or operation ABS function key absolute function at any position...

  • Page 9: Basic Operation

    asic operation...

  • Page 10: Input (Preset)

    1. Input value / Preset input input “12.45” input “-31.25” 2. Display Zero it shows “0.000” 3. ABS / INC conversion (Absolute / Incremental) ABS designation key 99 ABS numbers can be saved. (1~99) Move in the numbers by using arrow keys.( conversion from INC(normal) to ABS “ABS 1”...
  • Page 11 4. Searching for one of the ABS numbers move by arrow keys To find ABS number 5 push arrow key until 5 shows To find ABS number 1 push reverse arrow key until 1 shows To input coordinates of the axis to an ABS number, type its value or “0.000”...
  • Page 12 unction...

  • Page 13: Function

    Function call function menu 1. Changing resolution (factory setting: 5/1000) 2. Direction change 3. Rate or correction 4. Double counting 5. Inch / mm conversion 6. Initialization 7. Test function...
  • Page 14 1. Changing resolution (menu>scale) 1. 5/1000 This resolution should be same as the scale’s. ▶ 5/1000 is basic factory setting. ▶ After setting, “0.000” will be shown. ▶ 2. 1/1000 This resolution should be same as the scale’s. ▶ 5/1000 is basic factory setting. ▶...
  • Page 15 3. 1/100 This resolution should be same as the scale’s. ▶ 5/1000 is basic factory setting. ▶ After setting, “0.000” will be shown. ▶ 4. 5/10000 This resolution should be same as the scale’s. ▶ 5/1000 is basic factory setting. ▶...

  • Page 16: Rate Or Correction

    2. Direction change (menu>dir) + or - direction change 3. Rate or Correction (menu>rAtE) When there is a difference between ▶ input “RATE” the real distance and displayed distance. Basic rate is 1.000000 ▶ If you input 0.000000, ▶ there will be nothing displayed. flickering input 1.0 1.0 or 1.000000...

  • Page 17: Double Counting

    Real distance is 100mm but the readout (a display) shows 100.4mm, flickering type “0.996” 4. Double counting (menu>dIA) ↔ diameter radius “dIA” is double of the radius...

  • Page 18: Inch/Mm Conversion

    5. Inch / mm conversion (menu>Inch) 6. Initialization / Reset (menu>rESEt) (1) ABS initialization Please note that all of the preset ABS data will be removed.

  • Page 19: Test

    (2) Program initialization / Reset Please note that all of the memorized data including ABS will be removed. All setting value returns to factory setting. Factory setting: resolution 5/1000 counting direction rate 1.000000 unit: mm radius 7. Test function (menu>tESt) Check if the LEDs are working well Counting up from 1 to 8 To cancel the test,...

  • Page 20: Caution And Trouble Shooting

    aution and trouble shooting...

  • Page 21: Caution

    1. Caution Display counter and ground should be safely connected. To prevent malfunction or noise, please leave any electronic appliances away from the display counter. Please put any motor around the display counter. Please leave the display counter away from high voltage or where the temperature changes sharply.

  • Page 22: Trouble Shooting

    2. Trouble shooting Cause or Solutions Troubles Check if the power key( ) works well. Power off / no power on Check the power source Check the connection state with the adapter. Disconnect a scale from the counter and check. Mostly caused from inflowing of oils or fluids.

  • Page 23: Pin Information

    3. PIN (6-pin) Information DC adapter spec. Input AC 100~240V / 60Hz, 0.6A Output DC5V Size Internal diameter: 2.1mm External diameter: 5.5mm...
  • Page 24 DSC-Q01...
