Aerobeez YAK 54 A Step By Step Manual

Profile build log
Hide thumbs

Advertisement

Quick Links

Download this manual

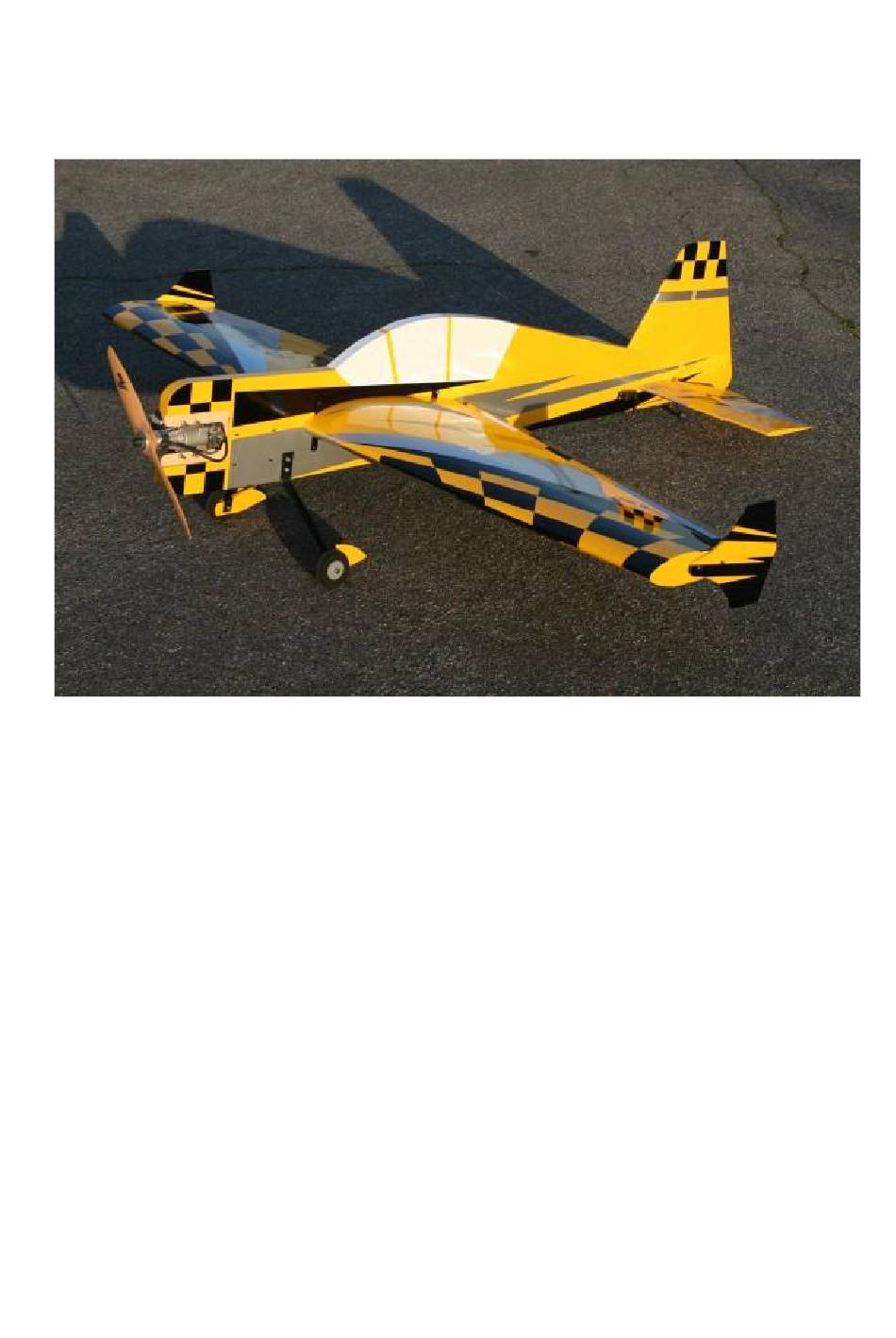

Aerobeez 65" Yak 54 Profile Step By Step Build Guide
Hello Aerobeez pilots and builders! This exciting YAK-54 Profile will be built around
the DLE-20 engine. Please take note that the build steps are that of our pro pilot Pete.
When building a profile ARF, there are several variations that can be taken. Such as
your engine choice, side to mount your ignition/fuel tank. There is no real set
method. Use your best judgment to see how the fuel tank and ignition placement will
fit best for your engine configuration. Also with profile builds, the covering on the
fuselage will need to be cut away in several areas to route wires, etc. Do not start
cutting all the covering away at the same time. Cut the covering for the area you are
working on then move on to the next step. We suggest doing this so that you do not cut
away an area that was not needed to be cut. Now let's start the build!
TIP: DUBRO Super Strength Servo Arms are the best match for the Aerobeez Profile
Depending on your engine of choice, determine what side your fuel tank and ignition
will be located. Once you have decided the location of both, use a bright flashlight to
Yak-54 Profile Build Log
ARF's.
expose the slots you will use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the YAK 54 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aerobeez YAK 54

  • Page 1 We suggest doing this so that you do not cut away an area that was not needed to be cut. Now let’s start the build! TIP: DUBRO Super Strength Servo Arms are the best match for the Aerobeez Profile ARF’s.
  • Page 2 Then, with a sharp hobby knife, cut away the covering for your ignition location.
  • Page 3 On the right side of the fuselage, cut away the first area in front of the main wing tube, the throttle servo slot and the two holes directly below the throttle servo for the carbon fiber landing gear mount. While you are working on other areas of the build, Pete always recommends using thin CA on the engine mount area, this is known as “wicking”...
  • Page 4 with this process. Letting the thin CA absorb into the engine mount will help strengthen the already strong mount. Now, locate the components to build your landing gear so that we can get this Yak on her wheels!
  • Page 5 Use the larger washer on the threaded side of the wheel axle and attach the axle, and wheel spat to the carbon fiber landing gear. Use a small amount of blue thread lock on the set screw for the wheel collars. This will keep the set screw from coming loose.
  • Page 6 Notice the plastic spacer is on the inside of the wheel. The wheel collar on the outside of the wheel. Now install the carbon gear halves to the fuselage.
  • Page 7 The perforated area on the wood in the horizontal stabilizer area will need to be removed.
  • Page 8 Use a hand saw and remove the small block section.
  • Page 9 There are a few methods to center your horizontal stabilizer. We are using a simple ruler. Insert the horizontal stabilizer and measure both sides from root to tip. When you are satisfied with the position, use a marker along the side of the fuselage on the stabilizer.
  • Page 11 Once you have marked both side, remove the stabilizer and carefully cut away and peel off the covering on both the top and the bottom.
  • Page 12 Insert the stabilizer into the fuselage and measure once more to make sure the stabilizer is centered. When you are read with the location, use thin CA along the stabilizer. This will “wick” the CA into the stabilizer and the fuselage. You will need to repeat these steps a few times with the thin CA.
  • Page 13 cured, use medium CA and go over the area once again with one thin bead. Allow to cure completely.
  • Page 14 Remove the covering on the control surface arm slots from the rudder and elevator. Pete chose to mount the rudder servo on the right side and the elevator servo on the left side of the fuselage. Be sure to remove the covering on the correct sides of the control surfaces.
  • Page 15 Glue the control surface arms to the elevator and rudder. Use a drop of household oil on the pivot area of the hinges to prevent the epoxy from adhering to the pivot area.
  • Page 16 Now, using Epoxy, glue the hinges into the control surface. Note: Glue only one side of the hinge at a time. Trying to epoxy both sides may result in hinges not in the correct locations causing binding. Once the elevator has been installed, you will need to match up the rudder hinge holes and do a little drilling for the bottom hole.
  • Page 17 (NOTE: Drill hole in the shown location) Match that hole to the rudder and mark it so you can drill a hole on the rudder as well. Then glue the hinges into the rudder side only. Let them dry before mounting the other side into the tail of the fuse.
  • Page 18 Now, locate and install the tail wheel assembly.
  • Page 19 Once the tail wheel has been installed, cut the covering for elevator and rudder servo bays. For this step we like to use this slit method. This allows the covering to be folded over to the inside of the fuselage when the servo is installed.
  • Page 20 Now let’s build the fuel tank!
  • Page 21 It is always good to write on the tank the fuel line locations. Using a screwdriver about the interior diameter of the fuel tank stopper, pop open the three fuel line holes by pushing the screwdriver through.
  • Page 22 Insert the fuel tubing in this configuration. Bend the left brass tube towards the top as this will be the fuel overflow line.
  • Page 23 Now install the fuel clunk and line to the bottom brass tubing.
  • Page 24 Once you insert the assembly into the fuel tank and tighten down on the screw in front, mark the tank so you know which tube is for what line. There are two sections on each side of the fuselage that can be removed for running the wires for your avionics.
  • Page 25 Running the elevator and rudder servos wires will be easiest if you have a long wire or fishing line. Run the wire from the front opening to the rear servo bay opening.
  • Page 26 Attach the servo extension ends to the wire or line and pull through to the front opening where your receiver will be located. Install your elevator and rudder servos/pushrods. Note: One side of the pushrod is reverse threads. This makes adjusting the pushrod while on the aircraft easy and quick.
  • Page 27 Cut the slot for the aileron surface arm and install the aileron hinges.
  • Page 28 Install the aileron to the main wing and remove the covering for the aileron servo and battery hatch. There is one hatch per wing. This is your battery hatch and option for a switch to be mounted on the hatch. Your receiver and ignition battery will be mounted on the wing beneath the hatch.
  • Page 29 After drilling the holes for the aileron servo screws, use thin CA to coat the servo mounts. This will yield in a stronger servo bay. We have opted to use a Miracle Dual Switch with charging jacks for one side of the battery hatch.
  • Page 30 Install your aileron servo and pushrods.
  • Page 31 Now locate the main wing brackets. Once you have located all the bracket parts, install the brackets two per wing.
  • Page 32 Slide one wing onto the fuselage with the wing tube in place. Use a marker and mark the top and bottom main wing bracket bolt hole locations.
  • Page 33 Remove the wing and cut the openings for the main wing bolts.
  • Page 34 Install your engine of choice. We will be using a DLE 20, but you can use others in the same size class if you choose to. Install the throttle servo and run the pushrod to the carburetor.
  • Page 35 Bend the included zip ties and insert into the fuselage to hold down the fuel tank.
  • Page 36 This is the battery location for each side of the wing. Use strong velcro and a velcro strap to hold the battery in location. Four Wing Bolts will hold the main wings to the fuselage.
  • Page 38 Now we will install the Side Force Generators (SFG’s). These are an optional item, so if you prefer to fly without SFG’s you are welcome to not use them. Set your control surface throws to your flying preference. Range test your radio system and test CG.
  • Page 39 MAC. This recommendation balance point is for your first flights. The CG can be moved around later to fit your personal taste. If you are not comfortable with the calculus involved you can use this online Calculator. Just plug in the simple measurements and the app does the calculus.
