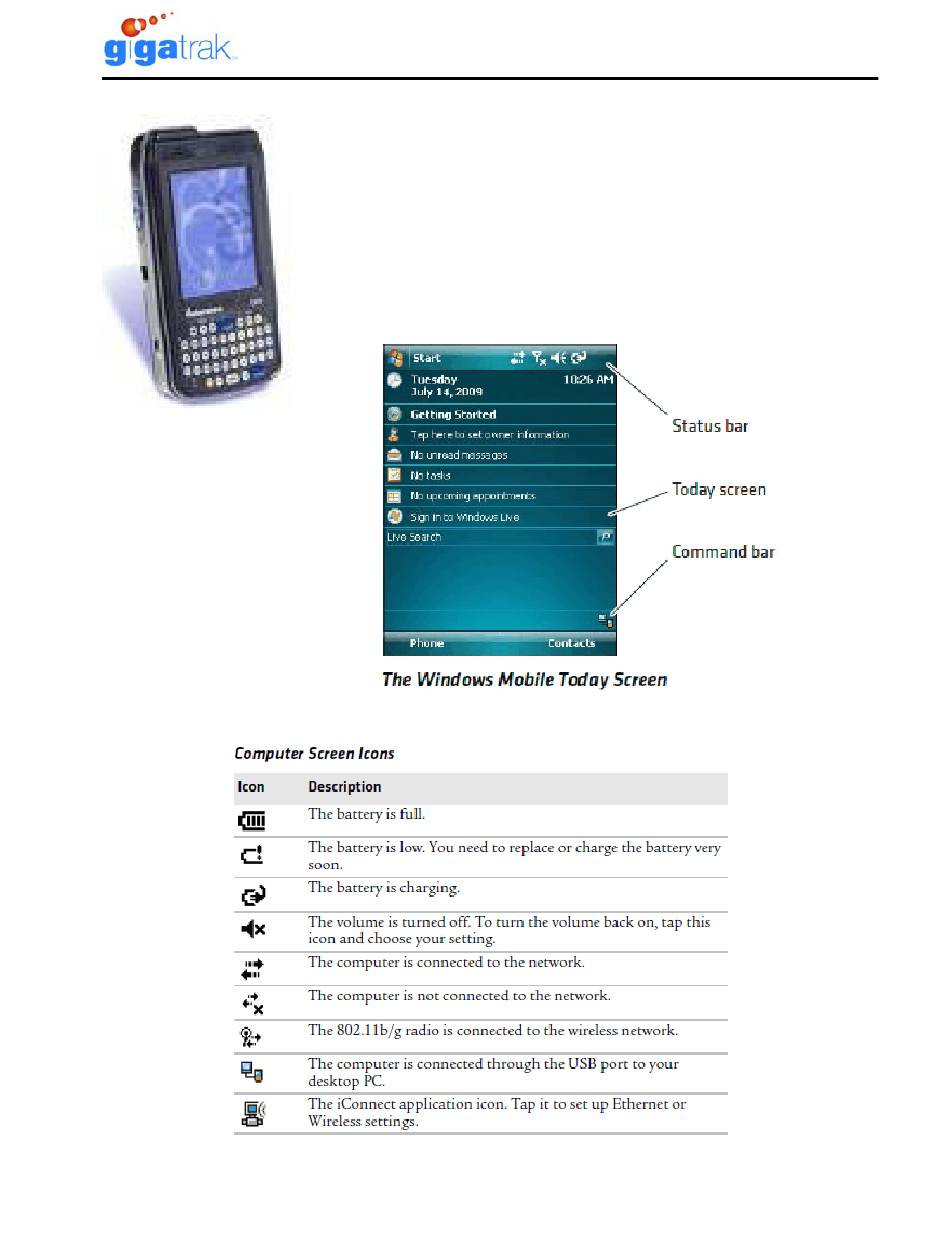

Intermec CN3 Handheld Information
Touchscreen Calibration
If the touchscreen is not responding properly to stylus touch taps, the
touchscreen may need to be recalibrated.
1) Tap the Start button in the upper left corner of the system tray.
2) Select "Settings", then "System".
3) Tap the Screen icon
4) Tap the Align Screen button.
5) Follow the instructions on the screen.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Intermec CN3 and is the answer not in the manual?

Questions and answers

Related Manuals for gigatrak Intermec CN3

Summary of Contents for gigatrak Intermec CN3

  • Page 1 Intermec CN3 Handheld Information Touchscreen Calibration If the touchscreen is not responding properly to stylus touch taps, the touchscreen may need to be recalibrated. 1) Tap the Start button in the upper left corner of the system tray. 2) Select “Settings”, then “System”.
  • Page 2 Intermec CN3 Handheld Information Set Date/Time/Time Zone 1) Tap the Start button in the system tray. 2) Select “Settings”, then “Clock and Alarms”. 3) Home – Select Central Standard time to set time zone. 4) Set the current date, time.
  • Page 3 Intermec CN3 Handheld Information Append Carriage Return to Barcode scan If the screen cursor does not advance to the next data field in your application after scanning a barcode, you need to append a carriage return to the barcode scan.
  • Page 4 Intermec CN3 Handheld Information APPENDIX 1 Install custom software applications Microsoft Active Sync Installation (For Windows XP) 1) Locate a copy of the latest version of Active Sync for your computer system. The correct version is available from Microsoft’s WEB site or a copy is included on your CD. Version 4.5 is the latest from Microsoft as of this printing.
  • Page 5 Intermec CN3 Handheld Information APPENDIX 2 Reboot Terminal Re-Boot Terminal: Rarely does the CN3 require resetting, but it if does not respond properly, it reset may be necessary. Perform a warm boot first and see if that fixes the problem. If it does not, then perform a cold boot.
  • Page 6 Intermec CN3 Handheld Information APPENDIX 3 Intermec Settings Utility...
  • Page 7 Intermec CN3 Handheld Information APPENDIX 4 Configure the Wireless Network / IP / Security parameters using EITHER Intermec Settings OR the Profile Wizard/iConnect. To Configure the Wireless network/security USING INTERMEC SETTINGS, follow these 4 steps: 1)- Select a Security Choice (option-Funk Security) 1) From the Homescreen, Select: Start >...
  • Page 8 Intermec CN3 Handheld Information 3- Select a Profile for Security. 1) From the Homescreen, Select: Start > Settings > System > Intermec Settings > Communications > 802.11 Radio > Funk Security 2) Select Active Profile, choose a profile from the list and save your settings.
  • Page 9 Intermec CN3 Handheld Information APPENDIX 5 Configure the Wireless Network / IP / Security parameters using EITHER Intermec Settings OR the Profile Wizard/iConnect. To Configure the Wireless network/security USING the PROFILE WIZZARD or iCONNECT, follow these 4 Steps 1. Set the Security (Funk) Option via Intermec Settings.
  • Page 10 Intermec CN3 Handheld Information 2)- Configure IP settings: 1) From the Homescreen, Select: Start > Settings > System > Intermec Settings > Communications > 802.11 Radio > IP Settings Configure for DHCP (default) or Static IP If Static IP, you will need to provide the necessary network IP...
  • Page 11 Intermec CN3 Handheld Information 4 - Select WPA or WPA2 Security via Profile Wizard: (The CN3 is capable of supporting other wireless security options. If your network uses other security, reference the CK32 Users Manual. The manual is available, online, from www.intermec.com...
  • Page 12 Intermec CN3 Handheld Information APPENDIX 6 Using iConnect, you can check the wireless connection status: You can also use iConnect to change any network settings by tapping: Tools > Wireless Settings from the iConnect menu.
  • Page 13 Intermec CN3 Handheld Information APPENDIX 7 Using iSpyWiFi you can also view available networks and network settings. Select the iConnect Tab at the lower right hand portion of the screen and use it to access iSpyWiFi:...
  • Page 14 Intermec CN3 Handheld Information...
  • Page 15 Intermec CN3 Handheld Information...
  • Page 16 Intermec CN3 Handheld Information APPENDIX 8 Additional supporting documentation CN3 Manuals online @ Intermec: http://www.intermec.com/products/cmptrcn3/index.aspx...
