HOMELAND GOODS HG-3 Manual

7 stages air purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HG-3
7 Stages Air Purifier
CAUTION:
Read manual carefully for proper installation and operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOMELAND GOODS HG-3

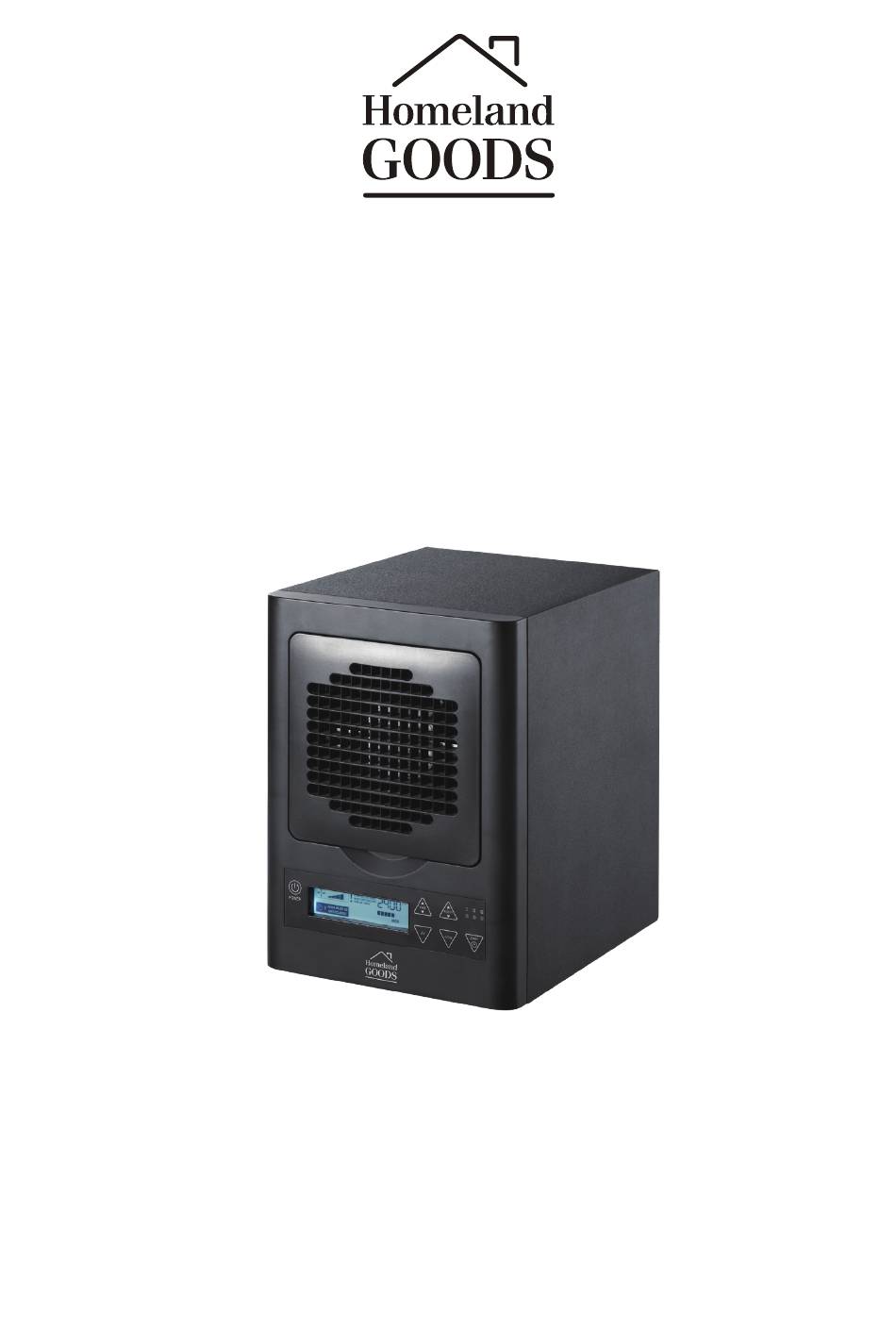

  • Page 1 HG-3 7 Stages Air Purifier CAUTION: Read manual carefully for proper installation and operation.

  • Page 3: Table Of Contents

    CONTENTS Getting Started 1.Specifications ....................4 2.Product Features ..................4 3.Introduction ....................5 4.Applications ....................5 How To Use 5.Installation ....................6 6.Quick Start Guide ..................6 7.Back Cover & Filter Removal ............... 6 8.Placing the Unit.................... 6 9.Settings and Adjustments................7 Care And Warranty 10.Maintenance ....................

  • Page 4: Specifications

    1. SPECIFICATIONS HG-3 Model: USA market: AC 110~ 120V/60Hz; Rated Voltage: European market: AC220~ 240V/50Hz Power Consumption: Fan Speed (non-grade): 1500-3000 RPM Air Volume: Max 106 CFM(3 m /min) Ion Output ≥5 x 10 cm3 (or≥2.5 x 10 /cm3) ≥...

  • Page 5: Introduction

    To reduce the risk of electric shock, this equipment has a grounding type plug that has a third (grounding) pin. This plug will only fit into a grounding type power outlet. If the plug does not fit into the outlet, contact qualified personnel to install the proper outlet.

  • Page 6: Installation

    5. INSTALLATION  Remove unit from shipping carton.  Remove all protective materials.  Read Owner’s Manual thoroughly prior to installation.  Fully insert cord into the power cord receptacle on the back of the unit.  Install Ozone and Filters as shown in the steps below. 6.

  • Page 7: Placing The Unit

    8. PLACING THE UNIT In order to maximize the purification function, the unit should be placed as high as possible. Alternately, placing something under the unit bottom, ensuring the front grill is tilted upward will better oxidize and purify the floating bacteria and smog pollutants.

  • Page 8: Settings And Adjustments

    9. SETTINGS AND ADJUSTMENTS  Buttons function and Operation Description Name Function & operation instruction Standby mode: Press the POWER button to turn the unit on, air purifier Power start working; Air purifier off when press the Power button LCD screen Displays the machine’s work status;FAN,PURIFY,OZONE and TIMER Press to adjust the fan speed.5 speed fan to adjust fan speed,( note: the coverage area change 200 sq.
  • Page 9  LCD Display Name LCD display Fan working status Press FAN to indicate fan working status, to display 1 to 5 fan speed HIGH purifying When the coverage area is more than 2400 sq.ft, the LCD display show reminder HIGH It show 1000- 3000 sq.
  • Page 10 Remote control function and description  Name Function and operation instruction Standby mode: Machine turns on when press Power button, air purifier start Power working;press Power button again to turn it off  Press one time: enter 1200 sq.ft SLEEP mode Sleep ...

  • Page 11: Maintenance

    CAUTION! Always ensure the room or area is UNOCCUPIED before performing the above-described Ozone control. 10. MAINTENANCE Periodic maintenance is required to ensure that the Air Purifier operates properly. A severely polluted environment can foul an air purifier plate in as little as four weeks or as long as a year.

  • Page 12: Replacing The Fuse

    UV-C Bulb: Do not touch bulb with your hands, use latex gloves whenever replacing bulb. Lifespan: 8000 hrs(It needs to be replaced after 8000hrs working) Ozone Plates: For maximum performance, ozone plates need to be washed in warm water. Always allow them to dry completely before re-installing.

  • Page 13: Troubleshooting

    CAUTION! If the fuse holder cap is not installed correctly, the unit will not operate. To replace or check the fuse: Remove the fuse holder by pressing on the clip and pulling straight out. If the fuse is blown: Replace with the standard replacement fuse. Insert the new fuse into the fuse holder.
  • Page 14  Check to see if the proper fuse is installed and that it is serviceable.  Ensure that the fuse cap is completely seated and secured in its receptacle. See Page 12 for more details.  Be sure the cord is fully pushed in / plugged into unit & on the wall outlet side. ...

  • Page 15: Service And Warranty

    13. SERVICE AND WARRANTY The Commercial air purifier comes with 2 Year Limited Warranty. This device is warranted to be free from all defects in material in normal use for a period of 1 year from date of purchasing. The warranty is granted only to the original purchaser.
