Summary of Contents for Smartbears PATRON

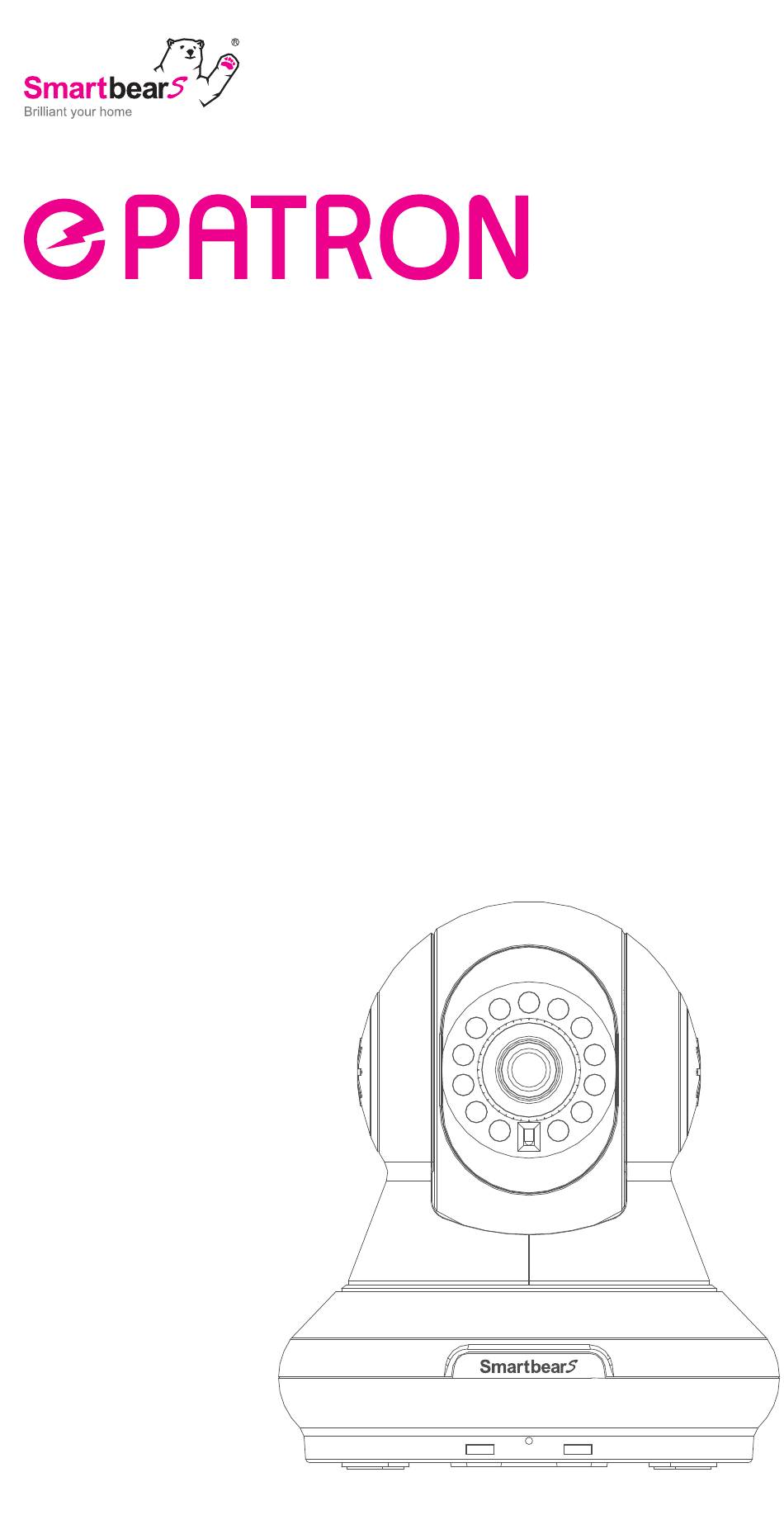

- Page 1 遙控攝影智能中心 (居家旋轉型) Cloud Smart IP Camera and Hub – PT Style 快速安裝說明 Quick Installation Guide...
- Page 2 智能主機外觀結構說明 Smart Hub Product Structure 智能主機正面 The front side of the smart hub ① 光線感應器 Light sensor ① ② ② 紅外線夜間照明燈 Night vision LED ③ 變焦調整圈 Manual focus ③ ④ 紅外線發射器 Emitter ④ ⑤ 紅外線接收器 Receiver ⑤ 運行指示燈 ⑥ ⑥ Operation Indicator LED ⑦...
- Page 3 智能主機安裝說明 IP CAM Installation Guide 安裝支架在牆壁上並調整好角度 Screw the wall mount bracket onto the wall and adjust the angle 將主機旋上支架 Screw the wall mount bracket into IP CAM 請妥善安裝 避免主機掉落發生危險 Please make sure everything fixed 安裝孔 for avoiding the IP CAM drop down Mounting holes...
- Page 4 將主機連接到 Wi-Fi 路由器 Connect IP CAM to Wi-Fi Router 或 網路線接頭 USB無線網路卡 RJ45 Wi-Fi Dongle...
- Page 5 將變壓器插上插座並接上電源 Connect to power adapter 啟動電源 3 分鐘後 LED 指示燈變成藍色 3 minutes to activate after power on then the LED indicator turns to blue...
- Page 6 有線連接設定需使用 網路線接頭 RJ45 連接Wi-Fi 路由器 Wired connection setting, use RJ45 to connect IP CAM and Wi-Fi Router. 無線連接設定需先在手機 / 平板搜尋 USB無線網路卡 的 SSID (WF********) 並連接 Wireless connection setting, please have the smart phone/ pad to connect to IP CAM Wi-Fi Dongle, to search SSID (WF********) and make connection.
- Page 7 掃描 QR Code 下載 Smartbears APP Scan the QR Code to download Smartbears APP 支援 Android 4.1 以上版本 支援 iOS 8.0以上版本 Support Android Support iOS 8.0 and above 4.1 and above...
- Page 8 新增主機至 APP Add IP Cam to APP *本手冊以擷取iOS APP畫面示意，Android APP畫面近似，操作流程 相同 * This manual captures from iOS APP screen, but it is similar to Android’s APP . 【iOS 畫面 / 】 iOS APP Screen 點選 + / Press + 添加攝影機 / Add Camera 【補充...
- Page 9 3種方式新增主機至 APP 3 Ways for Add IP Cam to APP 掃描產品貼紙 上的QR-Code Press QR-Code button to scan the QR code of the Sticker. 密碼 1234 Default password 1234 輸入IP攝影機編號（18位數） WSIT*******XXXXXXX Enter the IP Camera ID# (18 digits) of the sticker 密碼...
- Page 10 無線設定 * 如果欲使用有線網路連接可略過此步驟 * If using wired connection, please ignore this step. Wi-Fi Setting 點選設定/ Press to set up 點選Wi-Fi設定 Press Wi-Fi Config 選擇家中Wi-Fi並輸入密碼 Press the Wi-Fi SSID of your home 點選高級設定 Press the advanced Config 點選重啟 IP Camera (IPC)重啟約耗時 90 秒請耐心等候 Press the Reboot the IPC and wait 90 seconds to re-start the IP Camera.
- Page 11 Ⅰ Ⅱ Ⅰ. 你已可以控制攝像頭的方向 Ⅱ. 詳細的周邊裝置設定及使用方式，請掃描QR-Code下載使用說明書 Ⅰ. Adjust the viewing angles as you need. Ⅱ. Press the 6 categories to control devices, for detailed devices installation and instruction, please scan the QR code. 下載進階產品操作說明...
