SolarGo2 ABS Panel Mount Kit 7PCS ABSSET
Thank you for purchasing the SolarGo2 ABS fitting kit. Please follow the below instructions to get
the very best from your solar panel install.
It is worth taking time to decide on the position of the solar panel. Make sure you have enough
room/space for the solar panel and fixing brackets, avoiding shade where possible.
Secure the four ABS corner brackets to the frame of the solar panel using the supplied stainless-steel
self-tapping screws. (Roof kits only)

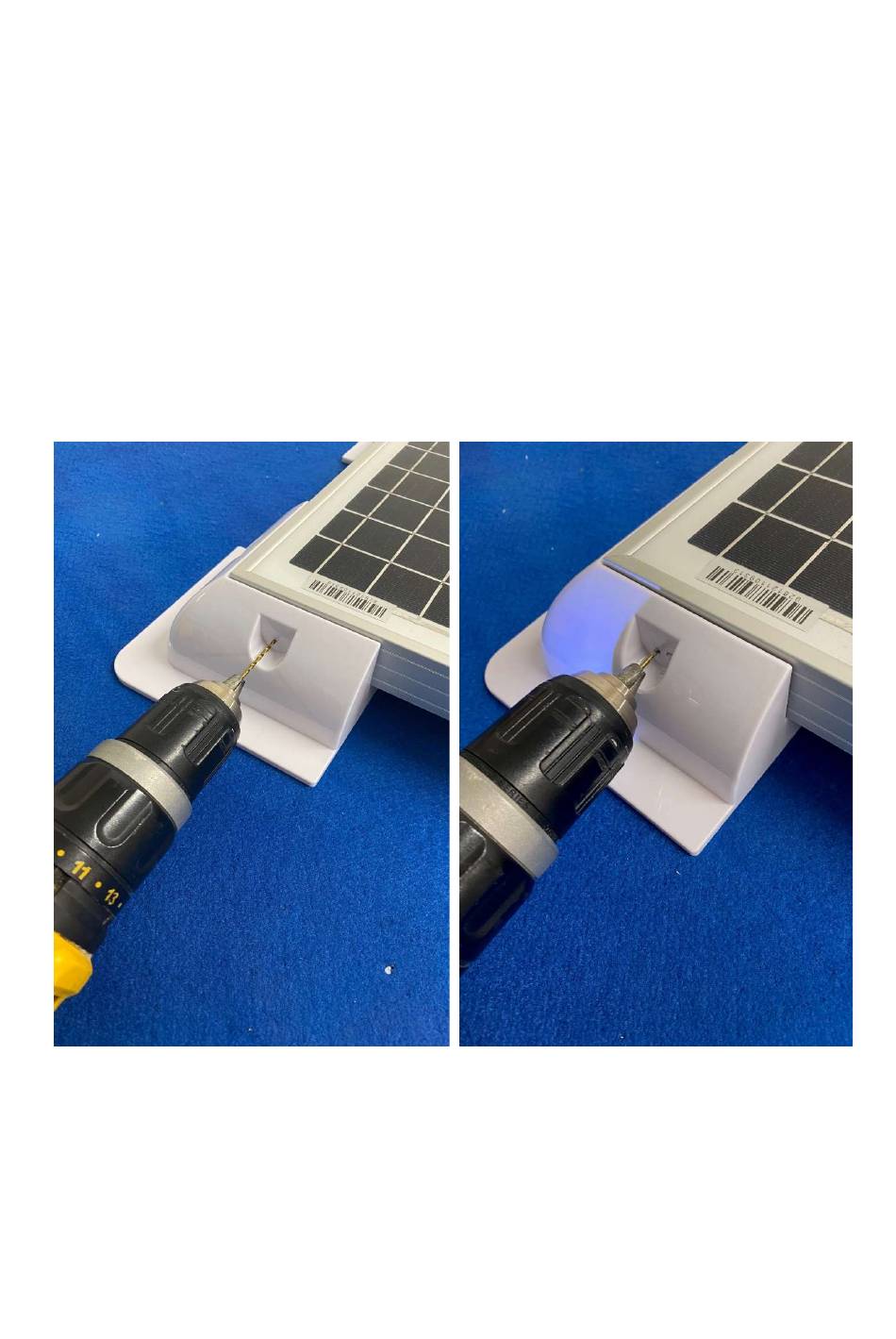

To do this offer up the ABS corner profile to the frame, drill a 3mm pilot hole through the centre of
the two indented locations on the profile and drill through the profile and frame. Take care not to
drill into the glass of the solar panel, keep the drill bit level and as centred to the frame as possible)
See Fig 1 & 2
Fig 1
Fig 2
Advertisement
Table of Contents
Summary of Contents for SolarGo2 7PCS ABSSET
- Page 1 SolarGo2 ABS Panel Mount Kit 7PCS ABSSET Thank you for purchasing the SolarGo2 ABS fitting kit. Please follow the below instructions to get the very best from your solar panel install. It is worth taking time to decide on the position of the solar panel. Make sure you have enough room/space for the solar panel and fixing brackets, avoiding shade where possible.
- Page 2 Securing the corner brackets to the frame using the supplied self-tapping screws. See fig 3 & 4 Fig 3 Fig 4 The ABS short straights can be used to support the longest length of the solar panel in the centre if needed.
- Page 3 SolarGo2 rigid solar panels). The method of installation is the same as described for SolarGo2 ABS Panel Mount Kit 7PCS ABSSET. Align the profile carefully to the 680mm dimension of the solar panel, ideally the profile should face the direction of travel but don’t worry too much if that can’t be achieved on your install.
