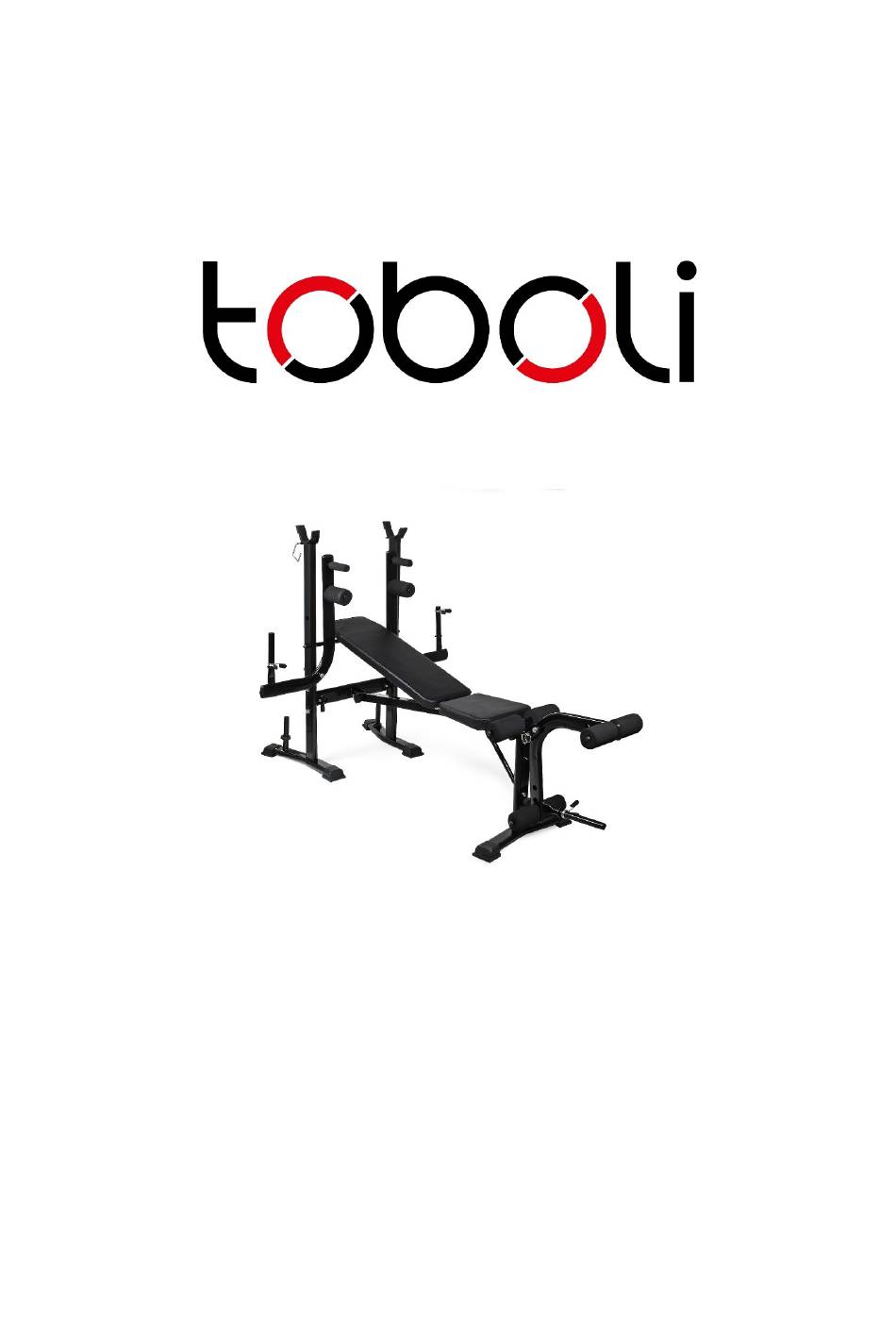

User's manual

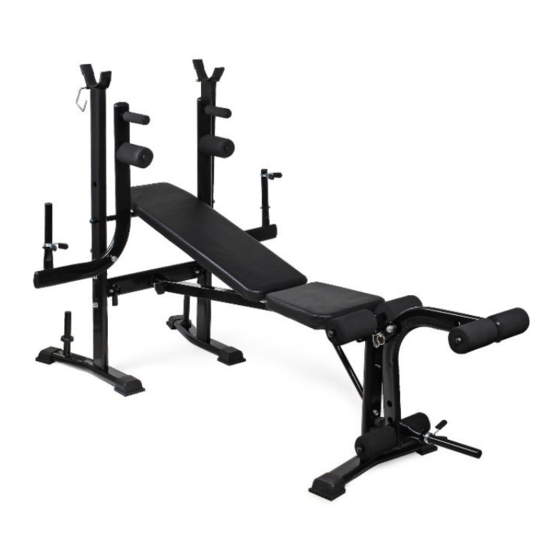

Weight Bench/Barbell Rack
63044
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for toboli 63044
Summary of Contents for toboli 63044
- Page 1 User’s manual Weight Bench/Barbell Rack 63044 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 © by WilTec Wildanger Technik GmbH Item 63044 Page 2 http://www.toboli.com 05 2022-1...
- Page 3 The device is not suitable for therapeutic use. • When lifting or moving the device, be cautious not to hurt your back. Always apply an appropri- ate lifting technique and/or seek help. © by WilTec Wildanger Technik GmbH Item 63044 Page 3 http://www.toboli.com 05 2022-1...
- Page 4 Main rod Front bent training bar Front support Back rest support bar Side bent training bar Support bar Short bar (with foam cap) Adjustment lever (with foam cap) © by WilTec Wildanger Technik GmbH Item 63044 Page 4 http://www.toboli.com 05 2022-1...
- Page 5 Part 2 Letter Name Letter Name Small foam caps Knob bolt Large foam caps Barbell clamp Spring clamp Connecting piece Handle Ring pin Grip lever © by WilTec Wildanger Technik GmbH Item 63044 Page 5 http://www.toboli.com 05 2022-1...
- Page 6 M10×140 screw/washer/M10 nut M8×45 screw/washer/M8 nut M10×65 screw/washer/M10 nut M8×20 screw/washer M10×55 screw/washer/M10 nut M6×40 screw/washer M10×50 screw/washer/M10 nut M6×15 screw/washer M10×20 screw/washer/M10 nut M12×150 screw/washer/M12 nut © by WilTec Wildanger Technik GmbH Item 63044 Page 6 http://www.toboli.com 05 2022-1...
- Page 7 Connect the main rod (D) with the connection rod (step 1) using the knob bolt (T) and screws (3). 2. Connect the main rod (D) with the front support (E) using screws (5). Pay attention to the correct orientation of the front support (E) (arrow). © by WilTec Wildanger Technik GmbH Item 63044 Page 7 http://www.toboli.com 05 2022-1...
- Page 8 Connect the front bent training bar (K) with the front support using screws (2). Slide the small lever (with foam) (G) through the hole (see fig.) and cover the ends of the small lever (G) using a small foam cap (O) on either end. © by WilTec Wildanger Technik GmbH Item 63044 Page 8 http://www.toboli.com 05 2022-1...
- Page 9 (7). Slide one small foam cap (O) on either grip lever (S). Step 6 Place the seat (B) onto the main rod and attach it using screws (9). © by WilTec Wildanger Technik GmbH Item 63044 Page 9 http://www.toboli.com 05 2022-1...
- Page 10 Fix the back rest support bars (L) to the main rod using screws (10), attach the back rest (A) to the back rest support bars and secure it with screws (8). © by WilTec Wildanger Technik GmbH Item 63044 Page 10 http://www.toboli.com...
- Page 11 (W). Finally, set the spring clamps (Q) in as shown. Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 63044 Page 11 http://www.toboli.com 05 2022-1...
