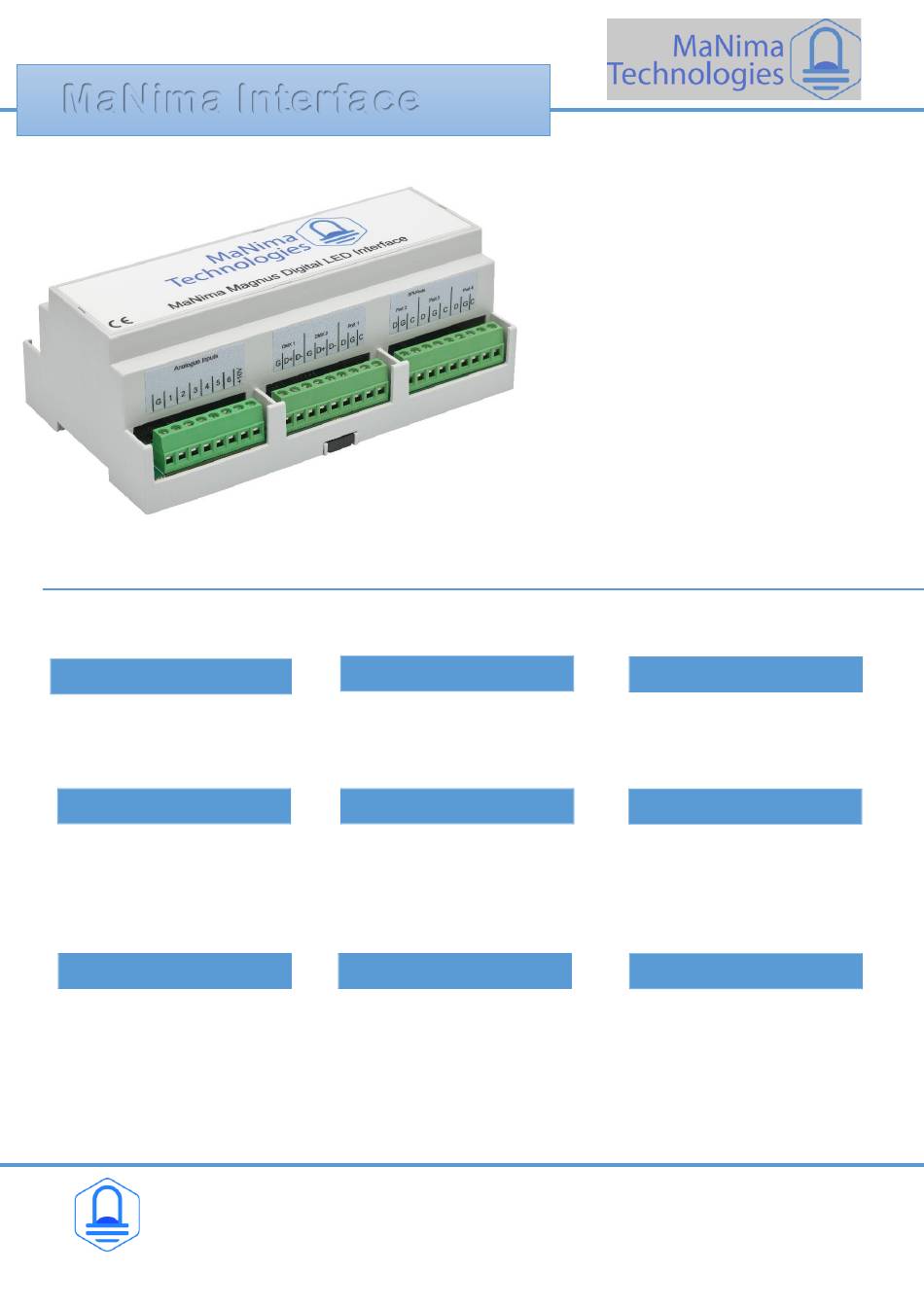

MaNima Interface

The State of the Art LED Interface

Recording and Playing

The MaNima Magnus is able to record

and play up to 26 universes according to

the WYSIWYG principle.

ArtNet

The MaNima Magnus can be controlled

via ArtNet V1.4. The interface is easy to

find and use thanks to the ArtPoll

system to configure.

External Inputs

Scenes can be started via external

inputs. These are digital inputs or

analogue inputs; 4-20mA or 0-10V. And

UDP commands.

Reliable and Stable

The MaNima Magnus has been proven

to be a reliable and stable product when

used for high-end LED projects.

Stackable

Connect dozens of MaNima interfaces

together to create huge LED projects

with the least amount of parts.

Synchronization

Multiple MaNima interfaces can

synchronize when playing scenes

through a master- slave setup.

MaNima Magnus

Manual V3.8

EMC Proof Product

All of MaNima's products are EMC proof

and are an ideal choice for use near

EMC vulnerable systems.

Easy-to-use GUI

The settings of the MaNima Magnus can

easily be changed by a user via the

MaNima LED interface configurator.

Multiple Protocols at once

Due to the available multiple ports,

there is also the possibility of sending

different protocols over different ports.

MaNima Technologies

Hastelweg 260B

5652CN Eindhoven

Table of Contents

Need help?

Do you have a question about the Magnus and is the answer not in the manual?

Questions and answers

Summary of Contents for MaNima Technologies Magnus

Page 1 Recording and Playing The MaNima Magnus has been proven All of MaNima’s products are EMC proof The MaNima Magnus is able to record to be a reliable and stable product when and are an ideal choice for use near and play up to 26 universes according to used for high-end LED projects.
Page 2: Table Of Contents
Setting Digital/Analog Inputs ................... 28 Reset & Indications ......................29 Master-Slave Function ......................30 List of Supported ICs ......................31 MaNima Interface Models ....................32 MaNima Network Overview ....................34 YouTube Tutorials ......................... 35 Contact Info ..........................36 MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 3: Foreword
First of all, thank you for using the MaNima Magnus Digital LED Interface! The MaNima Magnus Digital LED Interface is a very powerful product. With the ability of recording and playing up to 26 universes at once (depending on your license), it is the most powerful LED Safety InstructionsForeword interface on the market.
Page 4: Technical Specifications
Do not use more than one power source for the MaNima Magnus. The MaNima ConfiguratorTechnical SpecificationsSafety To turn-off the MaNima Magnus, it must be disconnected from the power source. The MaNima Magnus must be protected against wet environments. Any moist will Instructions damage the product.
Page 5 47+ SPI protocols (supported IC’s list) | DMX512 (2 outputs) | SPI (6 outputs) | ArtNet Directives CE, RoHs Operating temperature 10°C ~ 60°C Storage temperature 10°C ~ 60°C Warranty 5 Years MaNima Configurator MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 6: The Manima Configurator
The MaNima Configurator - Opening the MCThe MaNima Magnus. The MC must be installed on a computer on the same network where the MaNima Magnus is connected to. To work with the MC, it is recommended to install the MaNima Magnus Configurator first and connect it to the network, since most (if not all) options won’t be available without a...
Page 7: Opening The Mc
The MaNima Configurator - Opening the MC The MaNima Configurator can be downloaded here: Downloads | MaNima Technologies (manima-technologies.com) The MaNima Configurator- The UI (User Interface)The The MC is opened by adding the “GUI” file to the computer. In this file the user will find all of the files needed to use this program.
Page 8 The MaNima Configurator- The UI (User Interface) On the left side of the MC window there are multiple tabs which are used to configure the MaNima Magnus. A short explanation is given to each tab below: The MaNima Configurator- The UI (User Interface)
Page 9: Scanner
The scanner is the tab used to search for different MaNima LED Interfaces. Follow the instructions below to configure your own device. Make sure your computer and MaNima Magnus are connected to the same Ethernet/Wi-Fi network! The interface should be in the scanner no matter what IP-adress it has.
Page 10 MaNima Magnus cannot be configurated without a SD-card. Failure to Connect If the MC is unable to find the MaNima Magnus, there are multiple things that may have gone wrong. So, make sure the following is correct: 1. The MaNima Magnus is connected to the same network as the computer.
Page 11: Network Configurator
The MaNima Configurator - Network Configurator DHCP = turn off and on using the switch Turning off DHCP enables the manual configuration of the network settings. The MaNima Configurator - Network Configurator The MaNima Configurator - Network Configurator MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 12: Port Configurator
The MaNima Configurator – Port Configurator The mapping tab is used to configure the SPI-output ports on the MaNima Magnus. The name of the SPI Remove universes by The MaNima Configurator – Port Configurator output port selecting the universes below and pressing the ´-´...
Page 13: Scenes
The MaNima Configurator – DMX Input / Output The DMX tab is used to configure the MaNima Magnus between three different DMX modes. These modes are: Disabled: The interface will not be or be affected by different interfaces and will operate by itself.
Page 14 Change the saved on the SD-card on the Enable the ‘Synchronized The file is now saved on the SD-card of the MaNima Magnus and can be selected. To test if the scene, press the “Stop” This opens a party LED editor. To end recording and save...
Page 15 The duration parameter sets the time until the IF may start searching for an identical frame. The equality parameter gives the minimum frame equality between the two frames. If the IF can’t find an equal frame, set a lower parameter. MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 16 The fade effect is an effect which will slowly dim the recording at the beginning and/or end. Fade and bounce: The fade effect is an effect where the ending and/or beginning of a scene are fading in/out. After the fading, the scene will be reversed. MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 17 The recorded scenes can be started by external inputs or DMX channels configured as an DMX port input. ArtNet The MaNima Magnus can be controlled via ArtNet V1.4. The interface is easy to find and use thanks to the ArtPoll system. Live Playing The MaNima Magnus is able to instantly receive ArtNet and send a SPI protocol to the digital LEDs.
Page 18: Groups
When a certain set of interfaces is set under a certain group, a synchronised recording won’t allow for other interfaces (outside the group) to be recording. Analog/digital Inputs/Output Set a group here. Only grouped Interfaces are able to see each other The MaNima Configurator – Analog/digital Inputs/Output MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 19: Connecting The Manima Pollux
The MaNima Configurator – Connecting the MaNima Pollux Connecting a MaNima Pollux to the MaNima Magnus enables the use of dimming with sensor inputs. The MaNima Configurator – Connecting the MaNima Pollux Press the ‘extension’ button on the scanner tab to view the available options.
Page 20 Global Dimming Inputs/Outpu The MaNima Analog/digita The Global dimming function enables the automatic dimming of the MaNima Magnus. To Configurator configure the parameters of the NTC sensors, select the MaNima Pollux in the scanner. Consult Set a group here. Only the MaNima Pollux manual for more information.
Page 21 2. Press ´Add channel´ on the bottom of the screen. 3. Set the channel to the corresponding connector (see chapter ‘Installation and wiring - port descriptions’). 4. Select the action you want to happen when the input is triggered. 5. Done. MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 22 6 channels or 2 RGB LEDs can be controlled with all the analog inputs together. The amount of light depends on the amount of volt or ampere, with 0V being 0% light (0/255) and 7V being 70% (179/255) light. MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 23: Installation & Wiring
MaNima Interface. Also make sure the latest version of the MaNima Configurator is installed. Make sure that the downloaded file has the correct license. A Magnus 8 update file can’t be used on a Magnus 14 Interface.
Page 24 Installation & Wiring In this chapter there will be a description about every available port on the MaNima Magnus. For additional wiring diagrams, visit the MaNima website → support and download the wiring diagrams. Installation & Wiring - Port DescriptionsInstallation & Wiring Installation &...
Page 25: Port Descriptions
12/48V input: Connect 12/48 Volts to this connector to power the MaNima Magnus. Digital inputs: Digital inputs are inputs used to control the MaNima LED Magnus with voltages between +3,3V and +12V. Inputs can be configured using the ‘Inputs’ tab.
Page 26: Spi-Ports
Installation & Wiring – SPI-Ports There are six SPI-ports on the MaNima Magnus. These ports are used as outputs for the Data (D) Ground (G) and the Clock (C). Every port has a D, G and a C output. These ports make sure the LEDs will receive the digital signal.
Page 27: Dmx-Ports
Installation & Wiring – DMX-Ports There are two different DMX ports on the MaNima Magnus. Each DMX port has three different connections: Installation & Wiring – Setting Digital/Analog -GND: Ground -D+: Data + InputsInstallation & Wiring – DMX-Ports -D-: Data –...
Page 28 These digital inputs need the same positive voltage from the Wiring – Setting Digital/Analog Inputs same power supply as the MaNima Magnus. Or you can use the +10V from the analog input side, which is recommended. There are five digital inputs, all of which are configurable in the Installation &...
Page 29: Reset & Indications
LED of the row of indication LEDs. The LED is turned off when the IP: 192.168.0.185 protocolsMaste MaNima Magnus is functioning normally. This LED is red (or starts flashing red) when the frame DHCP: OFF Slave rate will be too high or when the amount of data is too much for the IF to handle.
Page 30: List Of Supported Ics
4. Start the recording as usual, make sure the LEDs are working. 5. Stop recording to save the recording. There should now be a file on every MaNima Magnus that is on the same network and group as the master.
Page 31: Manima Interface Models
SM16703, SM16716, SM16726 MaNima Interface ModelsList of Supported ICs TM1803, TM1804_400kHz, TM1804_800kHz, TM1809, TM1812, TM1814, TM1914A UCS1903_400kHz, UCS1903_800kHz, UCS1904, UCS2903, UCS2904, UCS2912, UCS512B3, UCS5603A, UCS8904, UCS9812 WES9412, WES943 WS2803, WS2811_400kHZ, WS2811_800kHz, WS2812, WS2812B, WS2812S, WS2813, WS2818 MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 32 MaNima Interface Models MaNima Interface Models MaNima Interface Models MaNima Interface Models MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 33: Manima Network Overview
Overview MaNima Network OverviewOverview MaNima Magnus Overview MaNima Network Overview MaNima Network OverviewOverview MaNima Network OverviewOverview MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 34 26 SPI and 2 4 Digital outputs DMX universes MaNima Magnus: The MaNima Magnus Architectural LED Interface is a professional LED controller with an industrial design made for operating digital LED installations. The interface is also able to control multiple protocols at once.
Page 35: Youtube Tutorials
MaNima Tutorial 11 Configuring NTC inputs - YouTube MaNima Tutorial 12 Current and Failure handlers - YouTube MaNima Tutorial 13 Inputs and Outputs - YouTube MaNima Tutorial 14 Installing the MaNima HMI Touchscreen - YouTube MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
Page 36 The MaNima Configurator – Extensions T: 040 202 49 04 Chamber of Commerce registration number: 71614605 The MaNima Configurator – ExtensionsContact Info YouTube Link: MaNima Technologies - YouTube The MaNima Configurator – ExtensionsContact Info MaNima Technologies Hastelweg 260B 5652CN Eindhoven...
