Mesqool CR1009Pro Quick Start Manual

CR1009Pro meets the NWS evaluation criteria for NWR All Hazards logo use

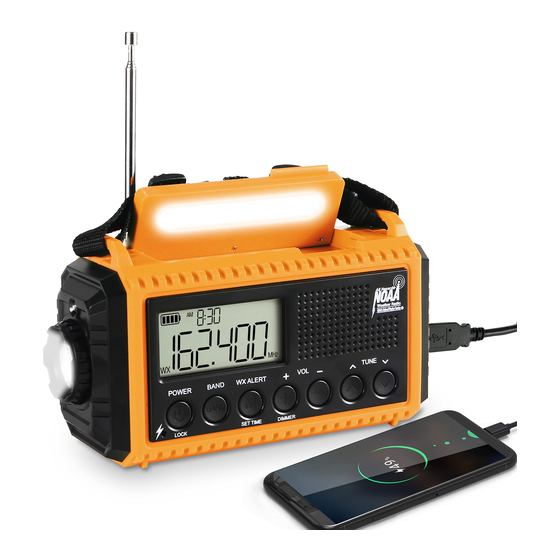

Emergency Alert Radio
CR1009
Pro
with AM/FM/SW/NOAA weather/Solar/Hand Crank
Chapter 1 LOCATION OF CONTROLS
4
3
5
2
6
1
7
27 28
29 30
1. USB Output Charging Port 2. 3.5mm headphone jack
4. Carry Strap Holder 5. Flashlight Button
8. Telescopic Antenna
7. SOS Control Button
11.Time Display
10. Battery Indicator
14. Headphone Indicator
13. Lock Indicator
17. Power/Lock Button
16. Power Indicator
20. Vol+/Backlight
19.
WX Alert/Set Time Button
23. Tune- / Next Button
22.Tune+ / Previous Button
26. Flashlight
25. Red Alert Light
29. Solar Panel
28. Battery Compartment
32. Crank Handle
31.
AAA Battery Compartment
Working/Fully Charged
Green
Red
Low Battery Power
Flash
Weather Alert Indicator
Li-ion Battery Indicator
8
9 1011 1213 14 15
24
25
26
16 171819202122 23
31 32
3.
Micro USB Input charging Port
6. Reading Lamp Button
9. Band Indicator
12. Weather Alert Indicator
15. Frequency Indicator
18. Band button
21. Vol- Button
24. Speaker
27. Rechargeable Battery
30. Reading Lamp
Battery Charging
Red
Button Lock Indicator
Headphone Indicator
AAA Battery Indicator
- 01 -
Contact our Expert:
Amazon.ca: help@mesqool.com
Amazon.com: support@mesqool.com
http://www.mesqool.com
Chapter 2 POWER SUPPLY MODE
5
3
5 ways to power the radio:
1. Hand Crank Power
(1) Unfold the crank handle from the backside and rotate it in either any direction.
(2) Rotate the crank handle, It will generate 300-350mA electricity to charge
build-in Li-ion rechargeable battery.
Note: Rotate the crank handle at the speed of 2 laps per second.
It will generate 300-350mA electricity.
2. Solar Power
(1) Expose the solar panel to sunlight, don't charge indoors.
(2) It will generate 30-50mA electricity to charge build-in Li-ion rechargeable
battery.
Note: Solar panel will generate 30-50mA electricity when exposed to sunlight.
It is difficult to fully charge the Li-ion rechargeable battery with solar panel,
which is mostly used for maintaining the rechargeable battery.
3. AC Adapter Power Supply
Connect the power plug (5V 2A) with the included micro usb cable,then plug into a
110V-220V standard outlet.
Note: (1)Ensure power plug standard is 5V,or it will damage this radio.
(2)Power plug is not included in the package.
4. Li-ion Rechargeable Battery
The radio contains a 5000mAh Li-ion rechargeable battery.
5. AAA Batteries
(1) Open the battery compartment on the back of the unit and insert 3 AAA
batteries making sure the polarity is correct.
(2) When Li-ion Rechargeable Battery power is low, the power source will be
switched to AAA batteries power mode automatically.
Made in China
2
- 02 -
Version 1.6
1
4
