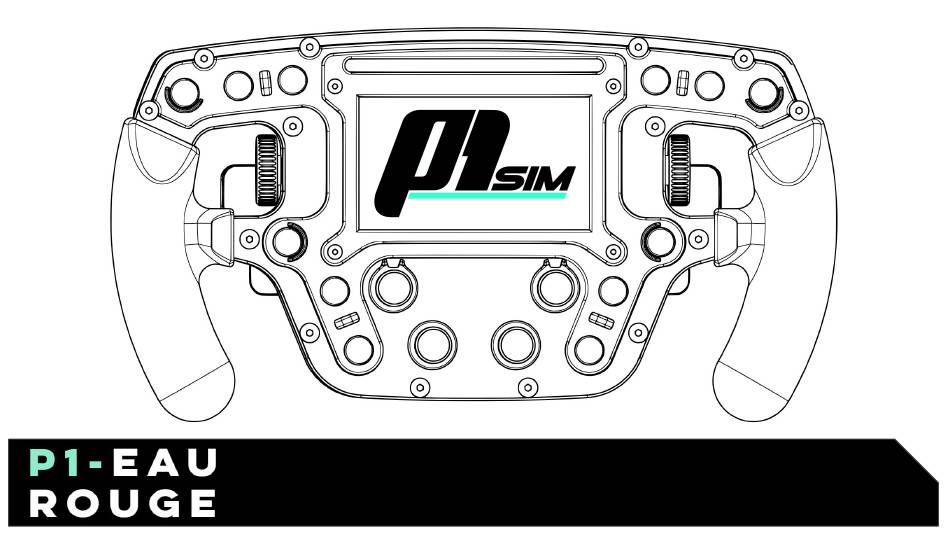

Summary of Contents for P1 Sim P1-EAU ROUGE
- Page 1 User Manual...
- Page 2 User Manual...
-
Page 3: Safety Notice
Safety Notice Please read the Manual carefully before you use the wheel. In the event of a malfunction do not open the product and contact us (contact@p1sim.fr), otherwise we will not provide warranty service. This product is not waterproof, please keep it away from rain, moisture and other items containing liquid such as vape, cup ect... -
Page 4: What's Included
What’s included P1Sim_EauRouge steering wheel Coiled USB cable Set of stickers Awesome true racing experience!! - Page 5 USB Layout Side rotary 1 Side rotary 2...
- Page 6 Paddles adjustment All 4 paddles are adjustable via 2 M3 screws, as shown below.
-
Page 7: Wheel Installation
Wheel installation The wheel hub comes with two different diameters to allow compatibility with almost any quick releases or bases. It is recommended to use all 6 screws to perfectly secure the wheel. (Screws provided with the wheel) Note: For Fanatec Podium users, it is mandatory to use the podium hub. -
Page 8: Usb Connection
USB Connection Make sure to align connector’s Keys Fully insert connector in the wheel Fasten securely the locking thread Connect USB side to your PC or USB Extension. Tips: To increase longevity of the cable and its connector, it is recommended to secure the connector once and unplug the USB side whenever needed. - Page 9 Wheel set up 1/3 1- Download and install SimHub https://www.simhubdash.com/ 2- Insert licence key (If you need one, ask us) 3- Download the LCD and LED configuration from P1 website https://www.p1sim.fr/media 4- Unzip files, copy and paste on your computer in following file: C:\Program Files (x86)\SimHub\NextionTemplate 5- Connect The wheel to your PC and check COM port number...
- Page 10 Wheel set up 2/3 6- Open simhub, to nextion display tab 7- Select Nextion 1 8- Change LCD config to P1 Sim Eau Rouge...
- Page 11 Wheel set up 3/3 9- Change led number to 16 9- Click on edit led layout, then profile manager, then import LED config to the wheel 10- Check that a green light comes up on the wheel, You’re all set! Enjoy!
- Page 12 Bite Point Setup Procedure At any moment, it is possible to fine tune the bite point following this procedure: Push simultaneously buttons 6 and 7 for 3 seconds Setup mode appears on LEDs bar Rotate rotary X to select the right setup Push simultaneously buttons 15 and 16 for 3 seconds to exit setup Note: The set value corresponds to the right paddle,...
- Page 13 Manufactured by Designed and developed by P1 Sim SAS E-mail: Contact@p1sim.fr website:www.p1sim.fr Version 1...
