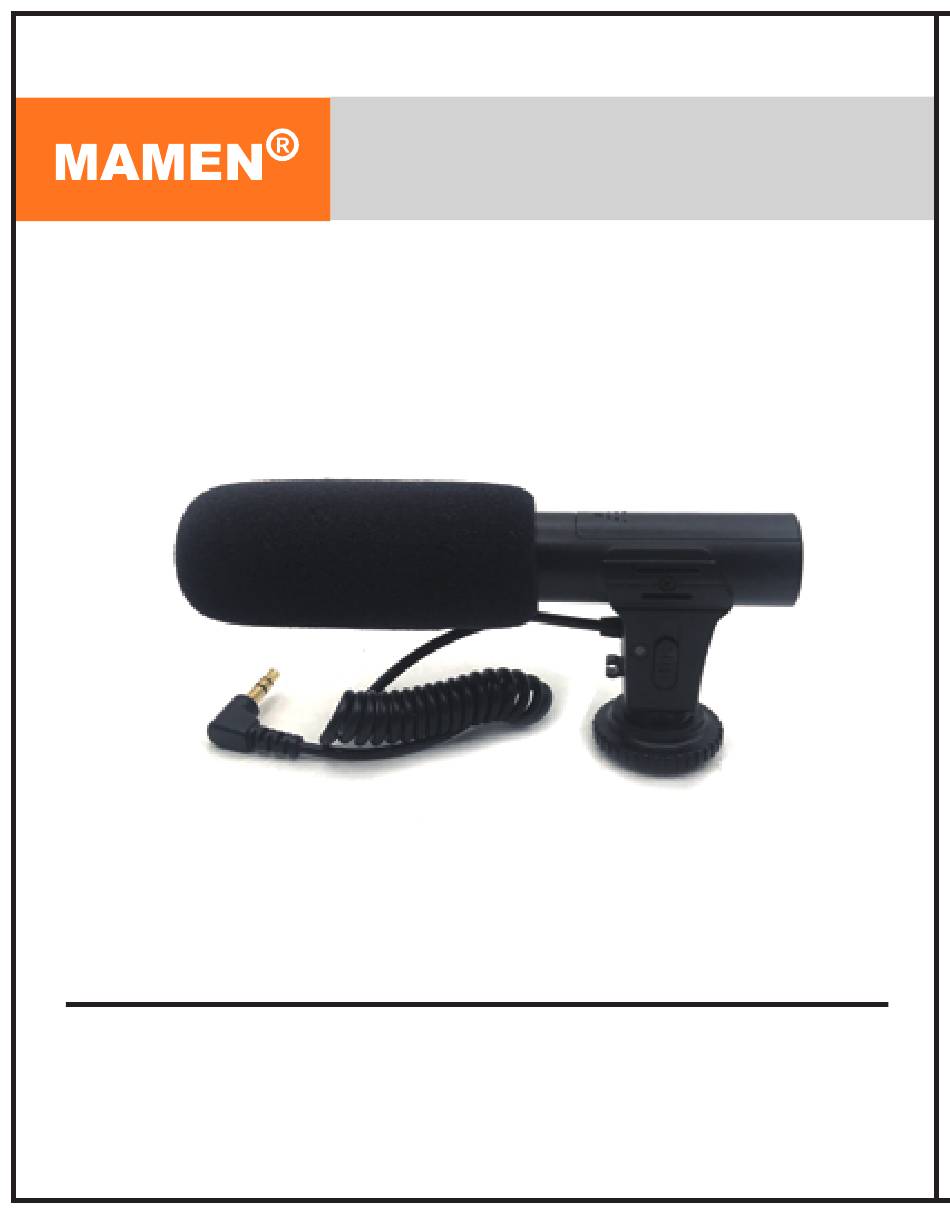

- Page 1 MIC-05 Mikrofon Video Buku Manual Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.
- Page 2 Pengenalan Welcome to MIC-05 Photo Recording Microphone, this product is specially designed for photography, interview and other professional fields.Designed to fit common mid- to high-end cameras and SLR cameras, and is convenient and fast Installed on the camera. Built-in professional high-performance...
- Page 3 Fungsi dan Bagian 1. Combination switch: “OFF” power is off; when the switch is pulled to “0dB”, it is normal pickup state;“+20dB” is a sensitivity-enhanced pickup for long-distance pickup. 2. Power indicator: The power on is green, indicating that the microphone has entered the pickup state;...
- Page 4 Spesifikasi Monomer: Electrostatic Capacitor Head Pointing to the features: Super heart pointing Frequency response: 50Hz-16kHz Sensitivity enhancement：+ 20dB ±2dB Sensitivity: -45dB±3dB (0dB=1V/Pa at 1kHz) Equivalent noise level：24 dB A Maximum sound pressure level：130dB(THD≤1.5% at 1KHz) Output impedance:200Ω±30% (at 1kHz) Channel: mono Use voltage: AAA 1.5V alkaline battery Power consumption ≤...
- Page 5 Cara Pemasangan Baterai Isi dalam Paket Camera recording microphone: one Windproof cotton : one AAA 1.5V alkaline battery: one Manual: One Catatan 1, the microphone built-in professional condenser microphone core, high sensitivity, need to pay attention not to fall or strong Impact. 2.
