VEEZOOM WS-N151HB User Manual

Poe camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
VEEZOOM PoE Camera
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-N151HB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VEEZOOM WS-N151HB

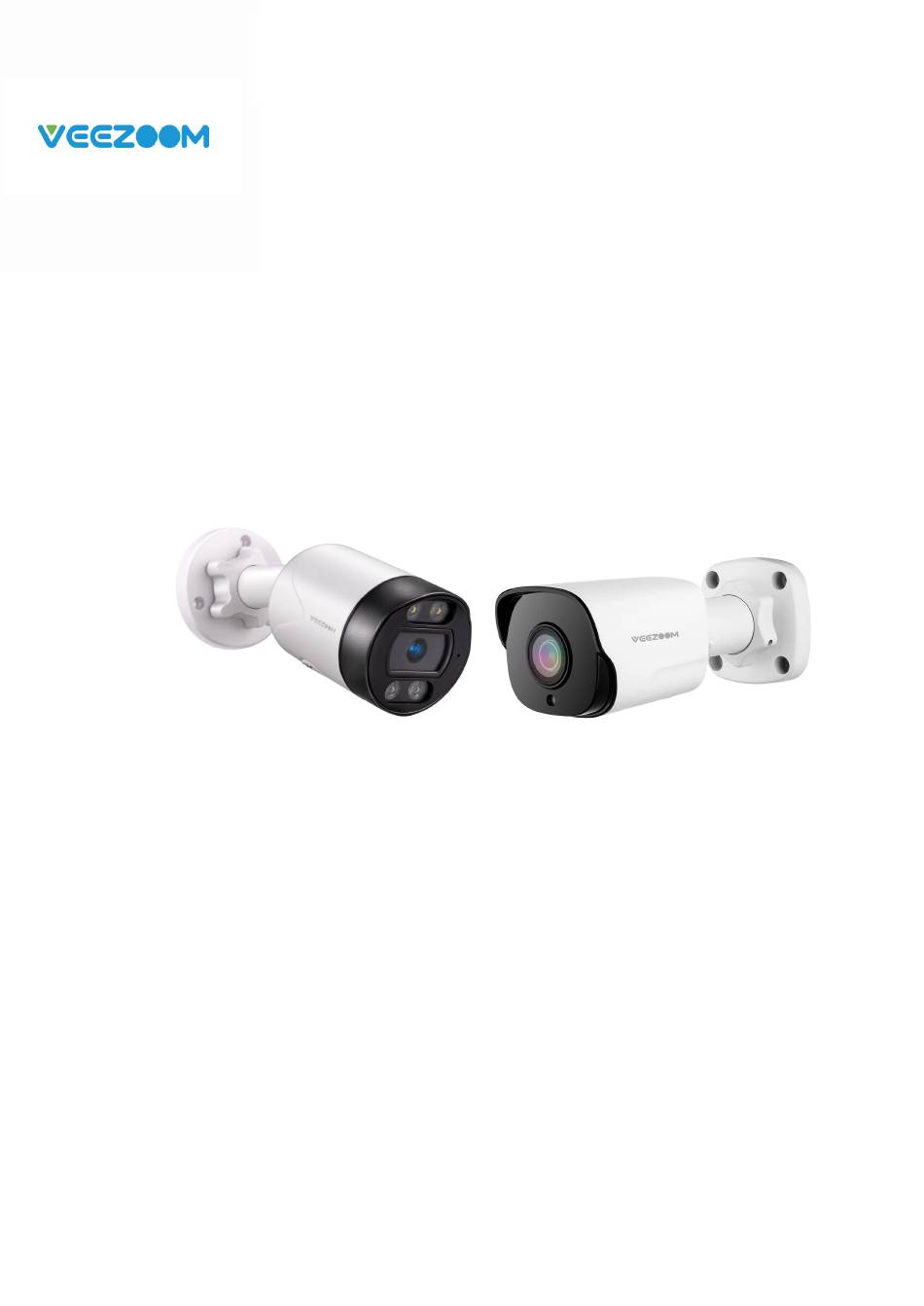

  • Page 1 User Manual VEEZOOM PoE Camera V1.0...

  • Page 2: About This Document

    User Manual About This Document Purpose This document describes how to use the web management system, including network access, network configuration, and troubleshooting. Symbol Conventions The symbols that may be found in this document are defined as follows. Calls attention to important information, best practices and tips.

  • Page 3: Table Of Contents

    User Manual Contents About This Document........................ii Purpose..................................ii Symbol Conventions..............................ii Important Statement..............................ii Contents............................iii 1 Camera Introduction........................１ 1.1 Device Overview..............................１ 1.2 Device Interface..............................２ 2 Setup and Installation......................３ 3 Install the Camera........................４ 4 Set up PoE Cameras on Veezoompro APP................５ 4.1 Download Veezoompro APP..........................５...

  • Page 5: Camera Introduction

    Camera Introduction 1.1 Device Overview WS-N151HB/WS-N151BS: Boasting a high resolution of 2560x1920 with 5 million pixels, security IP camera can capture crystal clear video with fine details. With the built-in microphone, it also picks up ambient sound for an extra layer of security. 5MP is with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and...

  • Page 6: Device Interface

    Camera Introduction User Manual 1.2 Device Interface WS-N151BS WS-N151HB V1.0 ２...

  • Page 7: Setup And Installation

    Setup and Installation Power on PoE Cameras You may power on VEEZOOM PoE cameras via PoE injector/switch or PoE NVR directly, or by using the power adapter. Mode 1: Connect the camera to VEEZOOM NVR or third-party NVR that supports ONVIF protocol.

  • Page 8: Install The Camera

    Install the Camera User Manual Install the Camera V1.0 ４...

  • Page 9: Set Up Poe Cameras On Veezoompro App

    User Manual Set up PoE Cameras on Veezoompro APP 4.1 Download Veezoompro APP There are two ways to set up the camera on Veezoompro APP: scan QR code on the camera and auto search. 4.2 Registered Account You can follow up the steps below to register a Veezoompro Account. And enter your email address and password to sign up.

  • Page 10: Account Login

    If you want to add the camera in LAN, we recommend that you enable the Add Devices Automatically option. Once your smart phone and camera are connected to the same network, the Veezoompro APP can find the VEEZOOM device automatically in LAN. V1.0...
  • Page 11 User Manual Mode 2: Scanning the Camera QR Code Please click the add button on Veezoompro APP and scan the QR code on the camera body to add the camera. V1.0 ７...
  • Page 12 Set up PoE Cameras on Veezoompro APP User Manual V1.0 ８...

  • Page 13: View Your Camera

    User Manual View Your Camera 5.1 Live View The live view screen may vary for different models. Icon Meaning Device name Return to main page Device configuration page entry HD/SD video stream switching Audio monitor enable Screen mode switch Screen suspension V1.0 ９...

  • Page 14: Display Settings

    View Your Camera User Manual Full screen Capture Voice intercom Video recording 5.2 Display Settings 5.2.1 Multiple Views If you have several cameras added in your Veezoompro APP, you can view multiple streams at the same time on Veezoompro APP. 5.2.2 Two-Way Audio Click to talk,to enter into the two-way audio page.
  • Page 15 User Manual Two-way audio is only available for WS-N151HB. V1.0 １１...
  • Page 16 View Your Camera User Manual 5.2.3 HD/SD switching 5.2.4 Audio monitoring - hear the audio input on the device side V1.0 １２...
  • Page 17 User Manual 5.2.5 Image size - switching between normal mode and full mode 5.2.5.1 5.2.6 Full Screen - Live full screen playback V1.0 １３...
  • Page 18 View Your Camera User Manual 5.2.7 Capture - capture a live frame to the local gallery 5.2.7.1 5.2.8 Video - record live one frame to the local gallery V1.0 １４...
  • Page 19 User Manual 5.2.9 Playback - Playback the video recorded in the Micro SD card of the camera 5.2.10 Local viewing - take pictures and video preview V1.0 １５...
  • Page 20 View Your Camera User Manual 5.2.11 Privacy Mode - Enable camera privacy mode - stop live video in this mode 5.2.12 WDR- turn on the wide dynamic function of the camera 5.2.12.1 V1.0 １６...

  • Page 21: Lights And Led

    User Manual It is recommended to enable it when there is a large difference in brightness between indoor and outdoor images in the monitoring area. 5.3 Lights and LED 5.3.1 infrared mode Night Mode On: The infrared lights will turn on automatically and capture Black&White videos night and day. Night Mode Off: The infrared lights will turn off and capture normal videos at daytime but nothing at night.

  • Page 22: Set Up Motion Detection

    View Your Camera User Manual The“Smart Mode” is only available for WS-N151HB. 5.4 Set up Motion Detection The VEEZOOM camera uses humanoid motion detection to test triggering alarms. Not affected by ambient brightness, leaves, mosquitoes, rain and snow. V1.0 １８...
  • Page 23 User Manual 5.4.1 Set humanoid Motion Detection 5.4.2 Detection Zone Detection Alarm > Activity Area> Create a zone over the area you want to receive alerts about. 5.4.3 Sensitivity Sensitivity can be set for motion detection and smart detection. V1.0 １９...
  • Page 24 View Your Camera User Manual Set the bar to adjust the sensitivity from low, mid to high. For the sensitivity of motion detection, You can also add sensitivity schedule. 5.4.4 Set up Motion Alerts Push Notification When the camera detects motion, it will send a push notification, which pops up on your mobile phone. Tap on Enable Notifications to enable this function.

  • Page 25: Recording And Playback

    When the camera detects a motion, it can record and save motion recordings to Micro SD card automatically. You need to install a Micro SD card to the camera. VEEZOOM PoE cameras support both motion recordings and continuous recordings. And recordings can be saved into micro Micro SD cards.

  • Page 26: Replay And Download Recordings

    Recording and Playback User Manual 6.2 Replay and Download Recordings 6.2.1 Replay Recordings 1. Open live view of the camera. Then tap on Playback on the bottom. 2. Select a date to search the recordings. Slide through the timeline to find the recordings you want to replay, tap on the selected recording and it’ll automatically starts to play.

  • Page 27: App Settings

    Download icon. VEEZOOM cameras don’t support deleting selected recordings. The camera will automatically delete and overwrite the older recordings when the Micro SD card is full. Or you can manually format the Micro SD card to delete all recordings.
  • Page 28 APP Settings User Manual 6. "Home Location" will be set according to the location of your mobile phone, you can also manually set the home coordinate point to change the "Home Location", click "Confirm" after confirming the address. 7. You can choose the default "room name" of the system, or click "Add another room" to customize the room (the room name can be entered with up to 25 characters).

  • Page 29: Environmental Information

    User Manual 12. The added members will receive a pop-up reminder in the APP, you can choose "Accept" or "Reject". At the same time, you will also receive reminders in the message center. 7.2 Environmental information After completing the family information and positioning, "weather and environmental information" will be displayed at the top of the device list page, click to view the specific environmental information.

  • Page 30: Camera Settings

    Class 10 or higher/≥26Mbps Format FAT32 8.2.2 Install the Micro Micro SD card Bullet Cameras WS-N151HB Step 1. Find the micro Micro SD card slot at the back of the camera and unscrew the screws to open it. V1.0 ２６...
  • Page 31 User Manual Step 2. Insert the micro Micro SD card just like the way in the picture below, please use your fingernail (or use the provided reset needle) to push the micro Micro SD card in until it is locked, and you will hear a click sound and the micro Micro SD card will not pop out if it is inserted in properly.
  • Page 32 Camera Settings User Manual Bullet Cameras WS-N151BS Step 1. Find the micro Micro SD card slot at the top of the camera and unscrew the screws to open it. Step 2. Insert the micro Micro SD card just like the way in the picture below, please use your fingernail (or use the provided reset needle) to push the micro Micro SD card in until it is locked, and you will hear a click sound and the micro Micro SD card will not pop out if it is inserted in properly.

  • Page 33: Remove The Micro Micro Sd Card

    User Manual Step 3. Screw the screws to close the cover tightly. 8.3 Remove the Micro Micro SD card Please refer to the steps below to remove the Micro SD card from your camera . Before uninstalling the Micro SD card, please power off the camera first, in case it will damage the Micro SD card.
  • Page 34 Camera Settings User Manual 1.Check the Micro Micro SD card Status ...Device Info page. 2. Tap Storage, and you can see the Micro SD card used space/total storage space. Tap Format to format the Micro SD card. V1.0 ３０...

  • Page 35: Device Information

    User Manual 8.4 Device Information From device information page, you can check the basic information about your camera include Model No., UID, and Firmware Version. Launch the Veezoompro APP then tap ..., then go to Device Info. V1.0 ３１...

  • Page 36: Remove Device

    Camera Settings User Manual 8.5 Remove Device Launch the Veezoompro APP and setting> Remove Device. Here you can choose to reboot the camera or remove the camera on the APP. 8.6 Firmware OTA and automatic firmware upgrade 1 Click "Device Upgrade" on the device management page. 2 You can choose to open the "Automatically keep the device up-to-date"...
  • Page 37 User Manual V1.0 ３３...

  • Page 38: Faqs And Troubleshooting

    Please make sure that the PoE injector/switch is 802.3af compliant (48V) and supports active mode. Q3: Can Two Cameras be Connected via One Cable? A:VEEZOOM PoE cameras can be powered over the Ethernet cable, and the Ethernet cable can transmit both data and power.

  • Page 39: Troubleshooting

    Q6: Can I Download All Recordings at Once on Veezoompro APP? A: No,VEEZOOM APP only supports downloading one file at once. And the video is cut into a moderate length by default. You can customize the video length (up to 120 seconds).
  • Page 40 VEEZOOM IP cameras are ONVIF17.06 compliant, which means they can be added to some third-party surveillance software for monitoring and recording. For the surveillance software you mentioned, sorry that we’re not able to assure you that it will be fully compatible with VEEZOOM cameras as we didn’t test it or made any adaptations.
