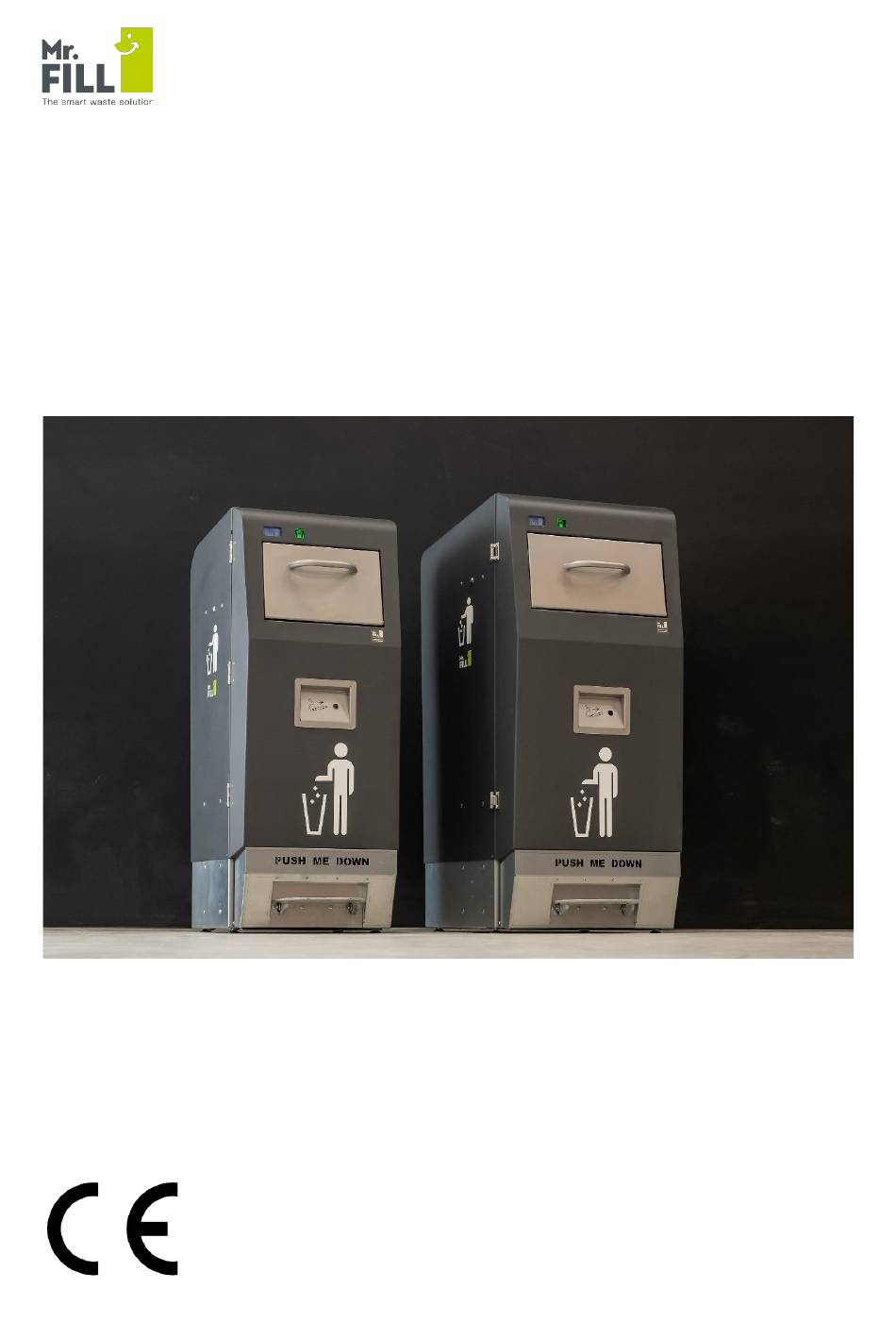

- Page 1 INSTRUCTION MANUAL FOR USERS Ultra-Fill 120L / 240L Manufacturer: Mr. Fill Publication date: 01-10-2020 Description: Self-compressing waste container Publication version: Types: Ultra Fill 120L Publisher: Mr. Fill Ultra Fill 240L Original user manual...
-
Page 2: Product Information
Pascalweg 16 4104 BG Culemborg The Netherlands PRODUCT INFORMATION Manufacturer: Mr. Fill Description: Self-compressing waste container Types: Ultra Fill 120L Ultra Fill 240L Job title: Self-compressing waste container for compacting waste CE marking: Production date: 2017 CONTACT DETAILS Manufacturer: Mr. Fill... -
Page 3: Foreword
The self-compressing waste containers by Mr. Fill are created, designed and developed in the Netherlands. The entire process at Mr. Fill is done locally and in-house from A to Z, ensuring the quality of Mr. Fill products is optimal and consistent. -
Page 4: Table Of Contents
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands TABLE OF CONTENTS Product information ..........................2 Contact details ............................2 Foreword..............................3 Table of contents ............................. 4 Introduction ............................7 Intended use of the product ..................... 7 Consequences for safety and warranty after making alterations to the product ..... 7 Most important product specifications .................. - Page 5 Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Transport attachments ......................15 Climate/atmosphere conditions for transport ................. 16 Methods to prevent any needless damage ................16 Storage ..........................16 Assembly and installation ......................17 Safe removal of the packaging and the preservatives ............17 Checklist contents .........................
- Page 6 Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Taking out of service (temporarily) .................... 30 10.1 Precautions and technical/administrative actions..............30 10.2 Procedures ..........................30 10.3 Safety Precautions and Regulations ..................30 10.4 Specific safety requirements ....................30 10.5 Local and statutory regulations....................
-
Page 7: Introduction
The Netherlands INTRODUCTION This introduction is intended as an introduction to the products Ultra Fill 120L and Ultra Fill 240L, referred to in this manual as the Ultra Fill. The following sections briefly describe the most important aspects of the products. For example, the product specifications and the lifespan of the product. -
Page 8: The Product
Ultra Fill 240L. The functionality and operation is identical for both types. The difference between the Ultra Fill 120L and the Ultra Fill 240L are the dimensions of the product and the capacity of the internal roll container. See section 1.3 for the capacities of the Ultra Fill 120L and Ultra Fill 240L. -
Page 9: Description And Operation
Make sure users of this product are instructed; • Always keep a clean and tidy area; • Make sure there are no objects on or around the product. Figure 3 - The components of Mr. Fill Position Description Position Description... -
Page 10: Door
If the flap is locked, this will be shown on the E- paper information display. If the cover is open and it is subsequently locked from the internet platform, Mr. Fill and the customer receive a notification via email and a push message on the phone. Built-in ashtray and mini container A built-in ashtray is fitted in the door for the collection of smoking-related waste. -
Page 11: Control Module
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Control module The control module contains the control software. The module is programmed to control the systems in the Ultra Fill based on data, for example, from sensors. For example, the press. -
Page 12: Safety
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands SAFETY This chapter is essential for safe use of the product. Please read this carefully and follow all warnings. General The Ultra Fill was designed and built for collecting and compacting litter. Use of the product involving things such as emptying, maintenance and installation may only be carried out by personnel who have been instructed to do so. -
Page 13: Safety Signs
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Wear protective Users must wear protective work gloves during emptying or other gloves work to protect their hands from debris or sharp parts. Wear safety shoes Users must wear safety shoes when emptying the product or during other work to protect their feet from debris or sharp parts. -
Page 14: Transport And Storage
For the most important transportation information of the product, such as dimensions and mass, see section 1.3. Figure 4 -Center of gravity of Mr. Fill\ WARNING! The product is top heavy. This may cause the product to tip over during transportation and installation. Failure to observe the instructions may result in people getting injured. -
Page 15: Transport Attachments
Allen key. 5. Tighten the lifting eyes with lifting ropes. 6. 6.Raise the waste container. Figure 5 - Attachment points on Mr. Fill Transport attachments If the product is transported over a longer distance, the supplied transport brackets must be used. As... -
Page 16: Climate/Atmosphere Conditions For Transport
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Climate/atmosphere conditions for transport The recommendation for climate/atmosphere conditions during transport serves as a guideline to ensure that transport takes place as safely as possible. This way the product also retains its quality for the longest possible timeframe. -
Page 17: Assembly And Installation
All the following steps for assembly and installation should be carried out by qualified personnel. If anything is unclear, please contact the technical department of Mr. Fill. Safe removal of the packaging and the preservatives When removing the packaging and the preservatives, make sure that this is done with care. -
Page 18: Requirements For Positioning The Product
The product needs to get enough sunlight so that it will stay charged. If it is not possible to meet this condition, please get in touch with Mr. Fill. See the following illustrations for clarification. It is also important not to install the product in a place where it may pose a danger. For example, placing it near an intersection can make the traffic situation unclear. -
Page 19: Special Tools/Equipment That Are Required
Hexagonal bolts M10x30 (4x) Sealing washers M10 (4x) Sealing washers M10 (4x) Sealing washers M10 (4x) Smartphone with Mr. Fill app Smartphone with Mr. Fill app Smartphone with Mr. Fill app Installation When it comes to placing it, you can choose between installing it on the pavement, on a concrete foundation block or on a foundation plate. -
Page 20: Installing The Product
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands WARNING! The product is top-heavy. This can cause the product to tip over during transport and installation. Failing to follow the instructions may result in people being injured. The product or other objects nearby could also be damaged then. -
Page 21: Disposal Of Industrial Materials
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 1. Make sure the work environment is clean and tidy. 2. Wear the correct PPE, see section 5.4 3. Place the concrete foundation block on the existing pavement. This may only be done by qualified personnel. -
Page 22: Putting Into Operation
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands PUTTING INTO OPERATION Putting it into operation can be seen as a continuation of chapter 5 ´Assembly and Installation´. This chapter describes how the product can be prepared for putting it into operation. -
Page 23: Operation
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands OPERATION This section covers all aspects relating to the correct operation of the product. Always follow these instructions carefully to avoid causing any damage or injuries. Specific risks and hazards If a person shorter than 100 cm in height and weighing more than 25 kg operates the product using the foot pedal, there is a risk of head injury. -
Page 24: Uses
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands • The modem signal (rssi) • System notifications (expressed in E) Default screen of the display: Start screen A thank you message will appear as soon as someone has disposed of their... -
Page 25: Maintenance
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands MAINTENANCE This chapter deals with maintenance. This may only be carried out by qualified personnel who have received training for this purpose. This manual should be strictly adhered to in order to avoid any further (technical) difficulties. -
Page 26: Cleaning
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands The following is a list of maintenance activities which should be performed. The user (consumer) is not permitted to carry out maintenance or service activities. These should only be done by qualified personnel as defined in this manual. -
Page 27: Fault Finding
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands FAULT FINDING This section lists some basic faults, so that users can fix faults. This depends of course on the nature of the fault. The following table lists what action should be taken. -
Page 28: Error Message E24 - Replace Battery
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Error message E24 – Replace battery If the battery voltage is too low, the battery might need changing. This is done as follows. Figure 12 - Changing the battery 1. Open the door using the key supplied. -
Page 29: Fault E60-E74-E75 - Explanation
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Fault E60-E74-E75 – Explanation Figure 14 - Explanation of error messages E60-E74-E75 INSTRUCTION MANUAL Ultra Fill... -
Page 30: Taking Out Of Service (Temporarily)
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 10 TAKING OUT OF SERVICE (TEMPORARILY) Special precautions are needed to take the item (temporarily) out of service. Some familiarity with the device is important. Safety is of the utmost importance when taking out of service. -
Page 31: Internet Platform
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 11 INTERNET PLATFORM Smart City Manager is a management and monitoring system which records status and usage data from the waste bin and notifies staff accordingly. Smart City Manager will give you plenty of notice when the bin needs emptying, by SMS or email to a PC, tablet or smartphone. -
Page 32: Dashboard
11.2 Dashboard Figure 16 - Internet platform dashboard After logging in, the dashboard will appear. Hovering over a Mr. Fill location displays the name and fill level (as a percentage). See Figure 16 - Internet platform dashboard Bin not full... -
Page 33: Bins
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 11.3 Bins Figure 17 - List showing waste bins in service Open the “Container details” screen by clicking on the relevant line on this screen (or on an Ultra Fill icon in Figure 16 - Internet platform dashboard). See Figure 18 – Container details 11.4 Container details... - Page 34 Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Figure 19 – Graph The graph shows information about battery charge, fill level, crush cycles and how many times the chute flap has been opened. You can filter this graph by week.
- Page 35 Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Figure 22 – Setting the locks It is also possible to take any Ultra Fill out of service via the platform on a specific day from a certain time, and then put it back into service in the same way.
-
Page 36: Logs
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Figure 25 – History The history lists all communication between the Ultra Fill and Smart City Manager. 11.5 Logs Figure 26 - The log files screen Figure 24 shows a list of all logs created, with the relevant status which the administrator can monitor and edit. -
Page 37: Settings
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 11.6 Settings Figure 28 - Edit settings The required email notifications can be set in the screen above. Figure 29 – Setting a new password This is where users can choose their own password. (Change password) Figure 30 - Editing email frequency Email frequency can be adjusted using the function “Add moment to receiver email”. -
Page 38: Users
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 11.7 Users Figure 31 - User list Administrators are able to set up new users, and also assign different roles. Users can be set up via the “Add user” button. Figure 32 - Edit user settings New user details can be entered in the screen below. -
Page 39: Districts
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 11.8 Districts Figure 34 - Districts list Administrators can configure districts. This can improve the information on the containers list, but also gives the option to link one or more districts to email notifications. -
Page 40: Dismantling
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands Disposal Disposal instructions are provided to make it clear to the user what needs to be done to ensure that the equipment (or equipment part) end-of-life phase runs smoothly. 11.9 Dismantling Before starting to dismantle, it should be decided whether the equipment will be used again at some point? If this is the case, parts should be dismantled carefully and clearly identified. -
Page 41: Ec Declaration
Mr. Fill Pascalweg 16 4104 BG Culemborg The Netherlands 12 EC DECLARATION INSTRUCTION MANUAL Ultra Fill...
