Summary of Contents for FRANKLINWH CSR2100
- Page 1 Title Franklin Home Power User Manual Date August 10, 2021 Doc. No. FD21081001 Revision Franklin Home Power User Manual © 2021. FranklinWH Technologies Co., Ltd. Page 1 Total 31...
- Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design, and manufacturing. FranklinWH shall have no liability for any error or damage of any kind resulting from the use of this document. Trademark All trademarks mentioned herein are the property of their respective owners.
-
Page 3: Revision
Title Franklin Home Power User Manual Date August 10, 2021 Doc. No. FD21081001 Revision Revision Descriptions Date Remark Pre-Release August 10, 2021 © 2021. FranklinWH Technologies Co., Ltd. Page 3 Total 31... -
Page 4: Table Of Contents
System operation ..............................24 Main UI ................................24 APP menu ................................ 25 Mode UI ................................25 Self-consumption ............................ 25 ① Load shifting ............................26 ② Reserved energy for grid outage ......................26 ③ © 2021. FranklinWH Technologies Co., Ltd. Page 4 Total 31... - Page 5 What to do in an emergency case ......................... 31 In case of flooding ..............................31 In case of fire ................................31 In case of smoking or unusual smell ......................... 31 © 2021. FranklinWH Technologies Co., Ltd. Page 5 Total 31...
-
Page 6: Take Care Of Safety Instructions Importantly
Do not abuse use the battery and observe proper precautions. Danger! FHP installation must be carried out only by FrnaklinWH trained and authorized installers with utility © 2021. FranklinWH Technologies Co., Ltd. Page 6 Total 31... - Page 7 Danger! Please do not abuse the products with huge loads when the grid-off. It is not warranted! Danger! Ensure use carbon dioxide fire extinguisher or aerosol extinguisher, etc. to put out the fire. © 2021. FranklinWH Technologies Co., Ltd. Page 7 Total 31...
- Page 8 Away from heat, sparks, and sunlight radiation Away from dust, corrosive and explosive gases, oil, and smoke, gas exhaust. Far away from the vibration Far away from failing or moving objects. © 2021. FranklinWH Technologies Co., Ltd. Page 8 Total 31...
-
Page 9: Abbreviations
LFP—Lithium Iron Phosphate battery PCS—Power converters system PE—Power element, PCS in a PE box pcs—pieces EPO—Emergency power off VPP—Virtual Power Plant TOU—Time of use © 2021. FranklinWH Technologies Co., Ltd. Page 9 Total 31... -
Page 10: 1， What's Franklin Home Power (Fhp)
Friendly Easy Installation Smart Circuits Safer Lithium Iron Phosphate Battery Simple Mounting EV Charger Ready Ultra-Silence up to 30dB(A) Fast Wiring Scalability up to 15 Units Seamless Power Transfer, <16ms © 2021. FranklinWH Technologies Co., Ltd. Page 10 Total 31... -
Page 11: Whole-Home Loads Backup
The essential home loads include the device of light, communication, computer, refrigerators, electrical heat and/or air conditioner. The installer will confirm with you what type loads will be connected into your backup loads panel. © 2021. FranklinWH Technologies Co., Ltd. Page 11 Total 31... -
Page 12: 2， Warranty
3， Product’s overview 3.1 System elements FHP is a home energy management and storage system for residential and light commercial uses which consists of 3 parts, aPower, aGate, and FranklinWH App. Figure FHP system elements units aGate aGate is a console of energy control and management and connection center for inputs of the grid, solar, optional generator and whole-home load, smart circuit backup loads, connectivity of Ethernet, WIFI, 4G. -

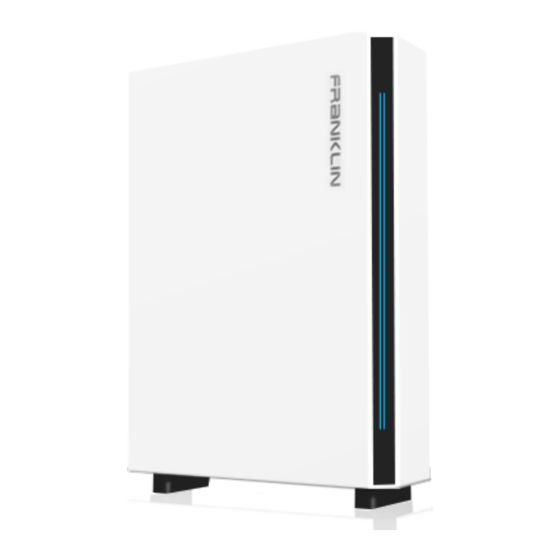

Page 13: Apower
The battery pack has a heatsink and fans cooling at the unit back The PE unit has a heatsink at the top of the unit. Air vent inlet At the back bottom Mounting hook Legs support © 2021. FranklinWH Technologies Co., Ltd. Page 13 Total 31... -
Page 14: Apower Led Indicating
4 seconds. Discharge and Ready status Sections of SOC is on and solid With communication Energy empty/remote All LED sections off With communication off/fault © 2021. FranklinWH Technologies Co., Ltd. Page 14 Total 31... -
Page 15: Agate
Solar breaker, 2P, L1/L2 Maximum 80A Blanked, configured by installer aPower breaker, 2P, L1/L2 Maximum 100A Blanked, configured by installer Load 1 breaker, 2P, L1/L2, Maximum 80A Blanked, configured by installer © 2021. FranklinWH Technologies Co., Ltd. Page 15 Total 31... - Page 16 Eaton#Circuit Breaker;2-Pole, 10kAIC, 50A/240V For solar, aPower BR260 Eaton#Circuit Breaker;2-Pole, 10kAIC, 60A/240V For solar, aPower BR270 Eaton#Circuit Breaker;2-Pole, 10kAIC, 70A/240V For solar, aPower BR280 Eaton#Circuit Breaker;2-Pole, 10kAIC, 80A/240V For solar, aPower © 2021. FranklinWH Technologies Co., Ltd. Page 16 Total 31...
-
Page 17: Emu Interface
Otherwise, it will cause the unit broken. Table EMU interfaces Port Remark CT10 For Smart Circuit CT Reserved For generator start signal, NO Reserved © 2021. FranklinWH Technologies Co., Ltd. Page 17 Total 31... -
Page 18: Agate Optional
RS485 Connect to AC meter in aGate 3.6 aGate optional Figure Optional generator circuit relay 1) Optional generator circuit relay The generator circuit connection is blanked by default. The © 2021. FranklinWH Technologies Co., Ltd. Page 18 Total 31... -
Page 19: Optional Epo Button
EPO button will be the wall mount type and it will mount on the wall near the aGate or somewhere more convenient. The EPO type is NC (normal close). © 2021. FranklinWH Technologies Co., Ltd. Page 19 Total 31... -
Page 20: 4， Datasheet
At 25℃ (77℉) 2.5kW charge/discharge power AC to battery to AC at beginning of life The net weight doesn’t include the installation bracket. 6，Performance will be derated when the operation temperature >45℃ © 2021. FranklinWH Technologies Co., Ltd. Page 20 Total 31... -
Page 21: Agate Datasheet
80A Max. Enclosure Type Type 3R Genset Overcurrent Protection Device 200A Max. (Optional) Smart Circuit Protection Device 1*80A Max.@240V (Optional) 2*50A Max.@120V Scalability Up to 15 aPowers Warranty 12 years © 2021. FranklinWH Technologies Co., Ltd. Page 21 Total 31... - Page 22 Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. © 2021. FranklinWH Technologies Co., Ltd. Page 22 Total 31...
-
Page 23: 5， System Care
2) The aGate system information is in the nameplate on the aGate inner panel. 7， Monitoring and management You can monitor and visually review your system and modify your system settings by FranklinWH APP. Instructions to activate your FranlinWH account are sent to you at the email address provided to FrnaklinWH by your installer. -
Page 24: 8， System Operation
FD21081001 Revision 8， System operation FranklinWH APP is configured to monitor and manage your home loads. This section guide you to understand your FranklinWH APP operation. First, you’d register and apply for a user account. The installer will help •... -
Page 25: App Menu
Smart Circuits, Backup, Bill, Others. 3) Mode UI FranklinWH APP provide you many types control modes, such as the self-consumption, load shifting, backup standby, emergency backup as well as the smart circuit, etc. In this section, you will select the battery advanced work modes and setting the running parameters. -
Page 26: ② Load Shifting
The advance of preferring aPowers discharge when outage and then start generator when aPowers usage less 25% until aPowers’ usage up to 90%. It improves the generator efficiency among home loads and aPowers charging, reduces the generator noise. © 2021. FranklinWH Technologies Co., Ltd. Page 26 Total 31... -
Page 27: ⑦ Vpp
AC meter in aGate Solar board in aGate Smart circuit Board CTs in aGate 10， Troubleshooting Please be sure of the following steps if the system is not working normally. © 2021. FranklinWH Technologies Co., Ltd. Page 27 Total 31... -
Page 28: Troubleshooting
4, Check if the aPowers on/off button push off to cause the aPower off 5, Check if aPower breakers are off 6, Check if VCC connection failed in aGate © 2021. FranklinWH Technologies Co., Ltd. Page 28 Total 31... -
Page 29: Fault Alarm List
0x100E No can signal received at 5 aPower off Apply the service seconds SOC lower alarm 0x100F SOC<0.3% aPower shift to Ready SOC resume >0.3% status and stop the output © 2021. FranklinWH Technologies Co., Ltd. Page 29 Total 31... -
Page 30: Power Map
3) Turn on the solar system and the breaker to aGate 4) Turn on the generator breaker to aGate 10.6 Technology support Please contact your installer or FrnaklinWH service team at your local as well as the email address © 2021. FranklinWH Technologies Co., Ltd. Page 30 Total 31... -
Page 31: 11， What To Do In An Emergency Case
In case of smoking or unusual smell Turn off the aPower on/off button, then the AC breakers to aGate as well as the solar system. Ensure nothing is in contact with aPowers. --Close— © 2021. FranklinWH Technologies Co., Ltd. Page 31 Total 31...
