Summary of Contents for ANYKIT NTS500
- Page 1 Industrial Borescope User Manual...

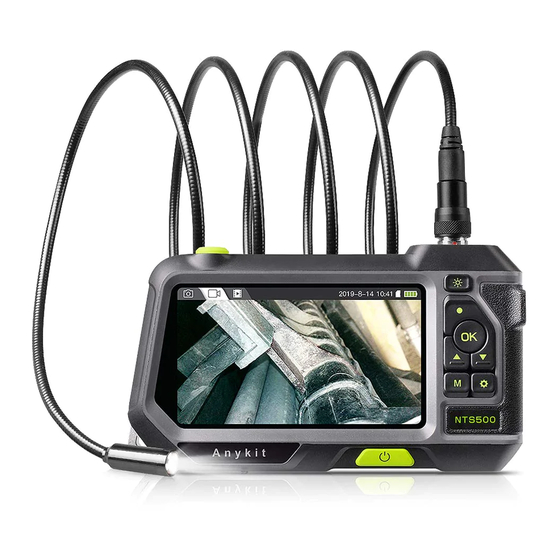

- Page 2 Product Manual The NTS500 is a high performance industrial borescope with a 5-inch high definition color LCD, It is ergonomically designed so that the main function buttons can be controlled with one hand. The snapshot and recording functions are supported, while the photos and videos are saved to a TF memory card (micro-SD card).
- Page 3 Functions Camera probe connector Light control button: Adjust the LEDs brightness of the camera Snap button: Take a photo or start/end video recording Enter button: Conf irm selection/Freeze screen Up and down selection button Switch between three modes: Photo taking, Video recording and Playback Settings button: Enter/exit settings menu Power button: Long press to turn on/off...
- Page 4 Flashlight Microphone Flashlight On/Off Switch Reset Speaker Instructions Turn ON/OFF Connect the cable to the monitor (Make (Press and hold the POWER button sure the camera is properly connected to for a few seconds) prevent noisy image on the screen) - 03 -...
- Page 5 The device is equipped with a TF memory card (inserted). Gently press to eject the card a. Power off the device first before inserting TF card. b. Make sure the orientation of the TF card is correct before inserting. c. Do not use excessive pressure when inserting or removing the TF card. d.
- Page 6 Language Settings The default language is English, and the system supports English, Chinese, German, French, Spanish, Italian, Russian and Japanese. Setting path: 1. Press the button twice to enter setting page 2. Select second item (Language) on settings page 3. Press up and down keys to select the language 4.
- Page 7 Specifications Screen Screen: 5 inches color LCD Screen resolution (pixels): 1280x720 Probe resolution (pixels): 1280x720 Image resolution (pixels): 1920x1080 Video recording resolution (pixels): 1280x720 Port: Micro USB charging port, TF memory card slot Camera Diameter: 7.9mm or optional Cable Length: optional Resolution: 1.0 Megapixel Viewing Angle: 70°...
