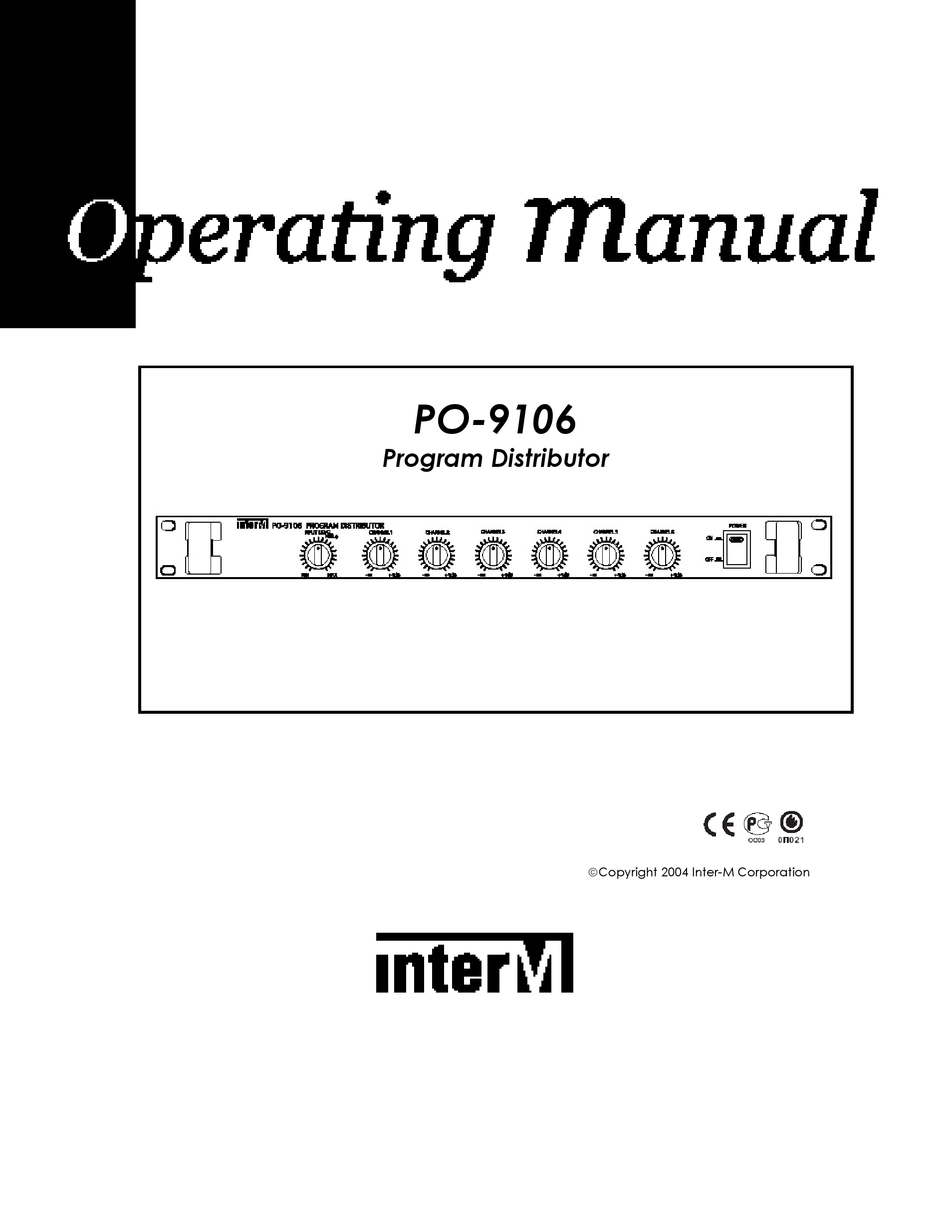

Page 1: Program Distributor
PO-9106 Program Distributor Copyright 2004 Inter-M Corporation... -
Page 2: Table Of Contents
Welcome ... 3 Unpacking ... 3 Warnings ... 3 Operation... 5 Program Distributor... 6 Features ... 6 Front Panel Controls... 7 Rear Panel Controls ... 8 Connections... 9 Specifications... 10 Contents... -
Page 3: Welcome
A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value. - Page 4 PO-9106 Program Distributor 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades, with one wider than the other.
-
Page 5: Operation
PO-9106 Program Distributor Operation Make certain that speakers and input sources are properly connected before switching Keep volume levels at minimum gain before switching on. NOTE: The system’s operation is delayed by approximately three seconds after pressing the power switch. This is due to the built-in protection circuitry, designed to protect... -
Page 6: Program Distributor
PO-9106 Program Distributor Features Convenient and Easy to Operate • Distributes a single channel input to six outputs for signal transmission. Easy Level Adjustment • Front-panel input and output level adjustment. Input Monitoring • Input Peak LED monitoring. -
Page 7: Front Panel Controls
Front Panel Controls 1. Input Peak Indicator This LED lights to indicate too hot an input level. 2. Input Level Control This knob controls the input level. 3. Output Level Control This knob controls the output level for each of the six outputs. 4. -
Page 8: Rear Panel Controls
Rear Panel Controls 7. Line Input Line-level input on balanced XLR connector. 8. Line Outputs 1-6 Line-level outputs on balanced XLR connectors. 9. DC Power Input These terminals are provided for the connection of DC battery power. Connect a 24VDC battery source to these terminals. Make certain the red terminal is connected to the battery’s positive (+) side, and the black terminal to the battery’s negative (-) side. -
Page 9: Connections
Connect a signal source such as the Inter-M EQ-9232 to the Line Inputs. • Connect multiple outputs such as Inter-M PA-9312 and PA-9324 amplifiers to the Line Outputs. • Connect a DC power source such as the Inter-M PD-9212 to the DC Power Inputs. -
Page 10: Specifications
Specifications ELECTRICAL Channels Frequency Response T.H.D at 1kHz, Rated Output Input Sensitivity/Impedance Output Level/Impedance Signal to Noise Ratio GENERAL Power Source Power Consumption Weight Dimensions Specifications and design subject to change without notice for improvements. 1 Input, 6 Outputs 20Hz-20kHz Less than 0.1% 1V/600Ω... - Page 11 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
