Turfmatic TM380-1800 Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

ARTIFICIAL GRASS

SWEEPER

TM380-1800

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the TM380-1800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turfmatic TM380-1800

Page 1 ARTIFICIAL GRASS SWEEPER TM380-1800 INSTRUCTION MANUAL...
Page 2: Table Of Contents
Contents Product overview Packaging Technical Specifications Introduction Features Symbol Purpose of use Assembly Instructions Setting Up Product Operation Replacing Brush Head Safety Instructions Maintenance Warnings Disposal www.turfmatic.info Page No. 01...
Page 3 Thank You! DEAR CUSTOMER Thank you for purchasing Turfmatic™ 380 Artificial Grass Sweeper 2 in 1 machine. We always endeavor to bring you technology superior appliances, designed to let you live life on your terms. Before you start working with the machine, read the following safety and usage instructions in this manual.
Page 4: Product Overview

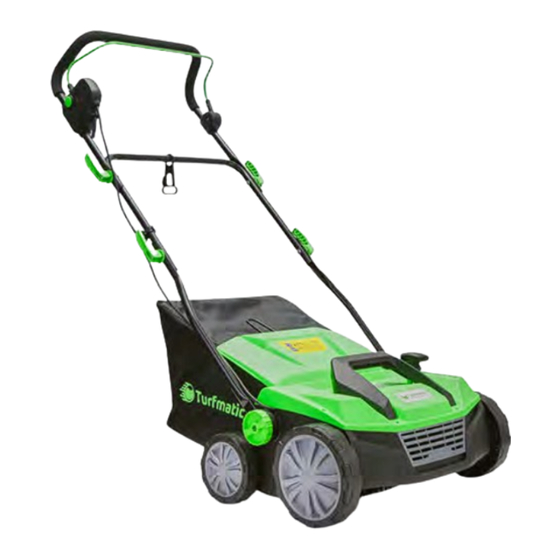

Cable Retaining Clip Power Cord Retainer Hook Quick Release Top Section of Handle Bottom Handle Screw Middle Section of Handle Middle Handle Screw Bottom Section of handle Handle Angle Adjust Brush Depth Level Control Handle Washer Collection Basket www.turfmatic.info Page No. 03...
Page 5: Packaging
The product is packed in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling. Technical Specifications: Electric Sweeper Turfmatic 380-1800 Rated Power 1800W Working Brush Width 38cm Working Depth...
Page 6: Introduction
The Turfmatic™ 380 Artificial Grass Sweeper is exclusively designed for seasonal maintenance of Artificial Grass. It uses 380mm brush head (built with Turfmatic™ Astrospiral Nylon) 4 height settings that allow the machine to be set for all styles of fake grass. It can easily pick up twigs, leaves, weeds, and items even as small as sunflower seeds while lifting any flattened area.
Page 7: Symbol
If the electric power cable has become jammed or is damaged, always turn off and pull the plug out of the electric power sockets! While working use protective aids. Before performing work on the machine, pull the power cord out of the electrical power socket. www.turfmatic.info Page No. 06...
Page 8: Purpose Of Use
Purpose of Use: The TM380-1800 is designed for sweeping lawns and grass areas in private gardens and yards. It is not intended for use in public facilities, parks, sports fields, on roads, or any agriculture uses. ATTENTION! To prevent injury, the electric sweeper must not be used on garden borders, hedges, and bushes.
Page 9 Screw on the handle’s middle part with the power cord safety retainer clamp (4) attached using the quick release coupling and the handle screw (13). Screw on the handle’s top part as shown in the figure below; www.turfmatic.info Page No. 08...
Page 10 Place the steel frame (10) into the textile collection basket (9) and attach all fasteners to the left, right, and rear poles of the frame. Make sure that all fasteners are secured correctly as shown in the figure below; www.turfmatic.info Page No. 09...
Page 11 Use the lowest possible brush height setting without over stressing the motor. It is recommended that run time does not exceed 20 minutes of continuous use. www.turfmatic.info Page No. 10...
Page 12: Setting Up
The more intensively the sweeper is used, the greater the wear on the brush head. The sweeper brush head is replaceable part and is covered as part of any warranty on the machine. www.turfmatic.info Page No. 11...
Page 13: Product Operation
Do not turn on and off in rapid succession. Starting: 1. Press and hold the safety button1. Pull the starting lever 2 towards the handle. 2. Release the safety button. Turning off: Release the starting lever 2 www.turfmatic.info Page No. 12...
Page 14 In the event that the machine turns off again, raise the height of brush depth again, which in turn will reduce the load on the motor further. www.turfmatic.info Page No. 13...
Page 15: Replacing Brush Head
When replacing the brush head, wear heavy-duty gloves. Screw out bolt 1 on the underside of the chassis. Lift the brush at an angle and pull it out. www.turfmatic.info Page No. 14...
Page 16 Slide the replacement brush on to the drive shaft so that pin 5 fits into the respective part of the drive shaft 4. Retighten screw 1 to secure the brush. www.turfmatic.info Page No. 15...
Page 17: Safety Instructions
Be careful when changing direction on a sloped area. • Read all warnings and instructions in this manual as not following the instructions may lead to injury by electrical shock, a fire, and/or other serious injuries. www.turfmatic.info Page No. 16...
Page 18 Please consult your electrician. • It is necessary to use connecting accessories for the extension cord. • For portable equipment used outdoors, we recommend the use of a residual current device with a maximum current rating of 30 mA. www.turfmatic.info Page No. 17...
Page 19: Maintenance
Do not use hard or pointed items for cleaning the sweeper. • Regularly remove accumulated debris from the wheels, brush head cylinder, and cover. • Regularly check the electric sweeper for foreign object damage and have it repaired if necessary. www.turfmatic.info Page No. 18...
Page 20: Warnings
The warranty begins from the date of purchase. For the first year, coverage is for both parts and labour on warranty repair services. Note: Customers have to provide proof of purchase to initiate the repair work under warranty. We strongly recommend keeping the original receipt. www.turfmatic.info Page No. 19...
Page 21 The warranty is void if the unit has been altered or an unauthorized person has damaged the unit while attempting repair work. We reserve the right to retain and discards any part or accessories that have been found damaged upon replacement and repair. www.turfmatic.info Page No. 20...
Page 22: Disposal
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design, and technical specifications may be made without prior notice and we reserve the right to make these changes. www.turfmatic.info Page No. 21...
