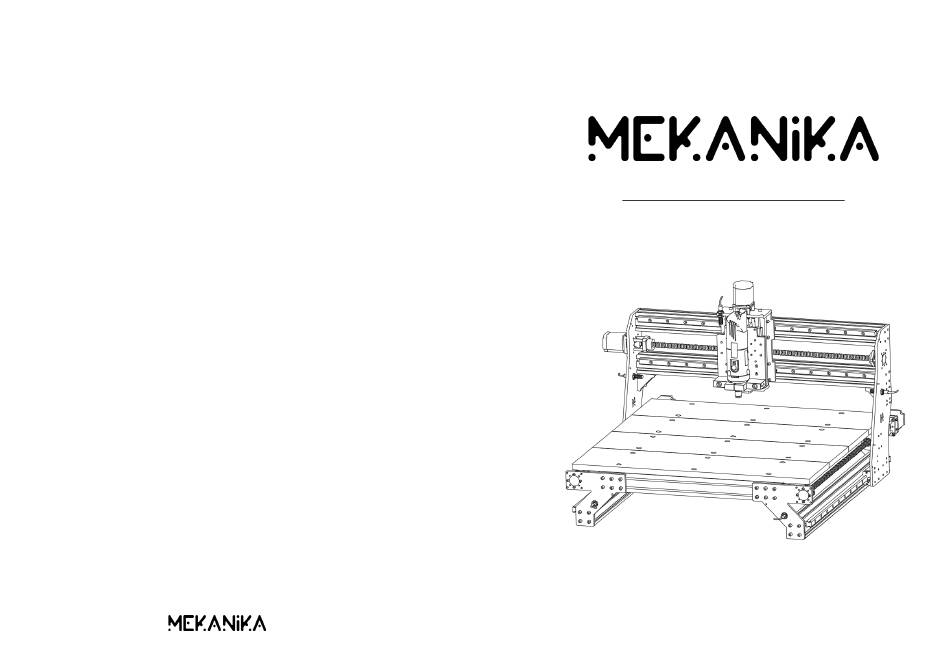

- Page 1 CNC MILLING MACHINE PRO-SERIES - USER MANUAL www.mekanika.io...
- Page 2 MAINTENANCE GENERAL INFORMATION Prior to commissioning the Mekanika Pro CNC Milling Machine, it has to be ensured that the machine is in a technically perfect and well-maintained condition. Always ensure that the machine is not powered if you want to perform adjustment or maintenance works. For this purpose, disconnect the power plug.
-
Page 3: Table Of Contents
TRANSPORTATION & STORAGE TABLE OF CONTENT TRANSPORT GENERAL INFORMATION Contact for Customer Information Notice If you want to transport the machine, please pay special attention to its dimensions. You might need additional Meaning of Terms Used people for transportation. Never lift heavy loads above people! Avoid a unilateral load of the machine frame! GENERAL INSTRUCTIONS Foreword... -
Page 4: General Information
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Mekanika SRL. Please visit www.mekanika.io on your product page to access up-to-date informations and documents. Working Area 630 x 630mm | 630 x 1030mm | 1030 x 1030mm... -
Page 5: General Instructions
FOREWORD The machine and all connected components have to be wired correctly and be in perfect condition. These operating instructions explain how the Mekanika Pro CNC Milling Machine works and inform you about the correct handling of the machine. The operator must have completely read and understood the entire documentation of the relevant machine model and its corresponding instructions. - Page 6 RECOMMENDED WORKPLACE LAYOUT Keep work area clean and well lit. Cluttered or dark areas are prone to ac- NOTICE cidents. Operate the machine only in interior spaces on a solid, horizontal table or NOTICE workbench. MAINTENANCE & SETUP AREA Keep children and bystanders at a distance while operating a power tool. CAUTION Distractions can cause you to lose control and can result in accidents.
- Page 7 Clean the spindle’s air vents every four hours by using compressed air. MACHINE REFERENCES NOTICE Excessive accumulation of chips and dust inside the motor housing may cause electrical failures. AXES TERMINOLOGY Do not reach in the area of the rotating tool. The proximity of the rotating CAUTION tool to your hand may not always be obvious.
-
Page 8: Protective Measures
840 mm. For a torsion-free stand, the surface of the machine stand The Mekanika Pro CNC Machine has been designed for advanced users and is only to be operated by technically needs to be solid and even. The machine is to be secured in a way that it cannot shift or fall down. -
Page 9: Personal Protective Equipment
The Mekanika Pro CNC Milling Machine is constructed for a permanent and regular application for profession- als. Due to the machine stiffness, a variety of different materials, such as wood and non-ferrous metals, can be Never hold the workpiece with your hands. -
Page 10: Check-List For Safety When Using The Machine
CHECKLIST FOR A SAFE USE OF THE MACHINE BE PREPARED WORK SAFE FINISH RIGHT The Mekanika Pro CNC Milling Machine is a digitally controlled milling machine, which can be used for a regular processing of wood, plastics and non-ferrous metals. • Use appropriate personal •...
