VANQ VQ-VD Series Manual

Lighting controller
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

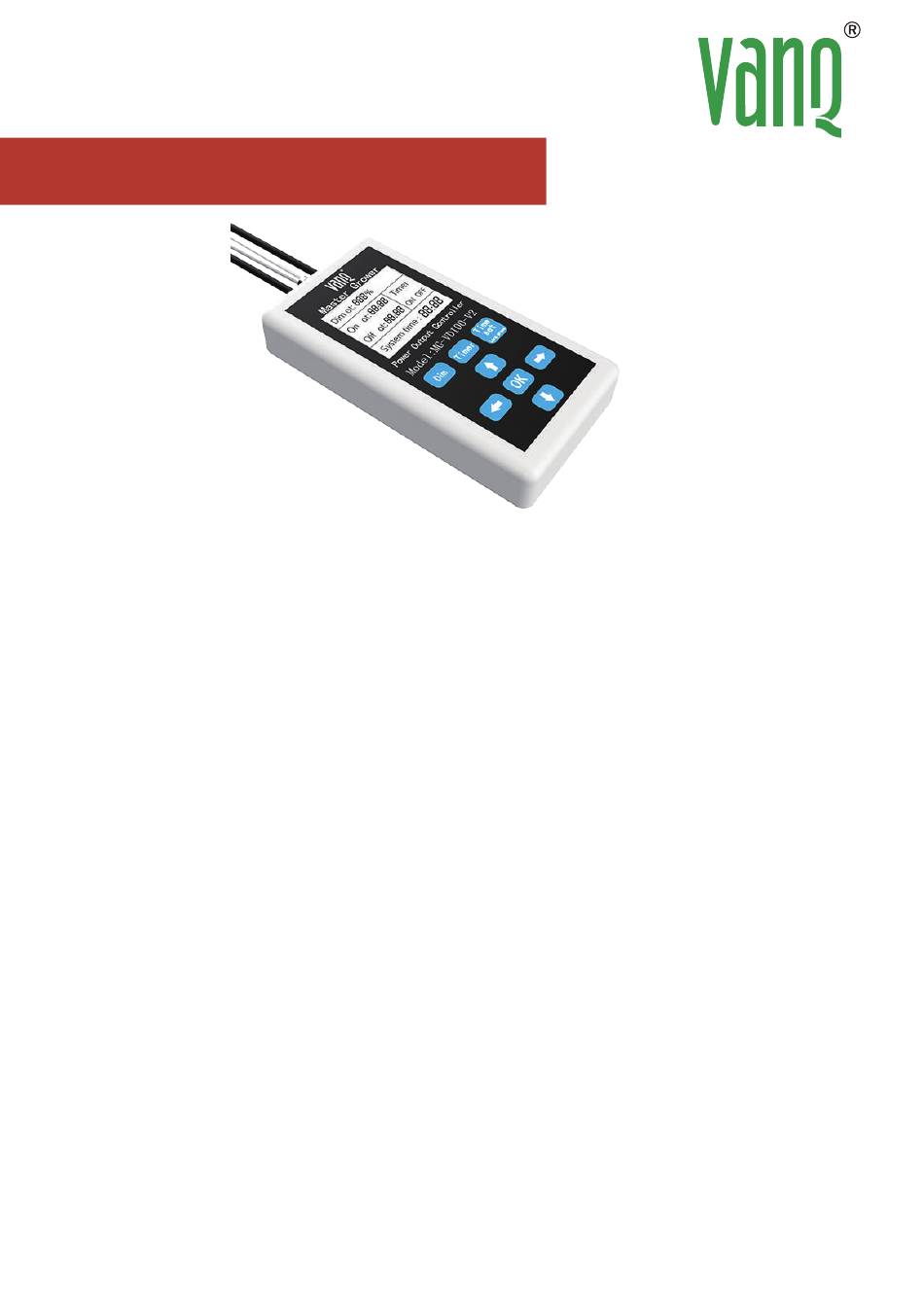

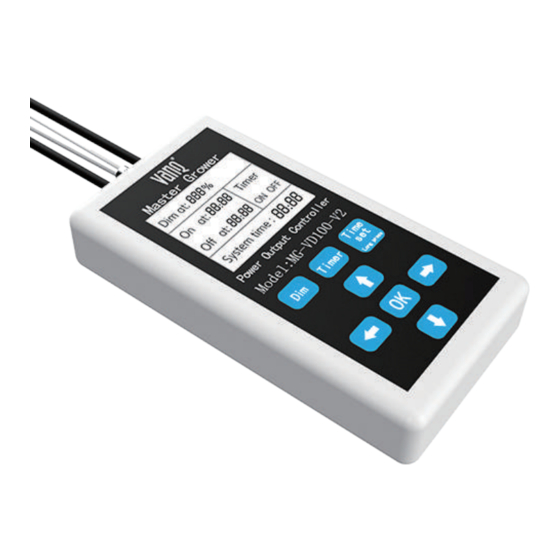

VQ-VD Series Controller
1
Introduction
Thank you for purchasing VANQ Lighting Controller . It is intended to be used in horticulture
lighting system.
This manual describes the installation and connection of the product and also describes how to
use the product. Please read and understand this manual completely before using the product.
Only use the product as specified in this manual.
2
Functions
① 0-10V single-channel dimming, 11 gears in total
② Memorize function of last setting
③ Matchable with all CC/CV 0-10V Dimmable Led Grow Light
④ Screen auto sleep if long time no operation to prevent false triggering
⑤ High precision power regulation
⑥ Timing dimming, dimming value can be set once within 24 hours
⑦ Default sunrise and sunset mode, gradually adjust to the set power 15 minutes before the timing
Start or ends;
Lighting Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VQ-VD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for VANQ VQ-VD Series

  • Page 1 VQ-VD Series Controller Lighting Controller Introduction Thank you for purchasing VANQ Lighting Controller . It is intended to be used in horticulture lighting system. This manual describes the installation and connection of the product and also describes how to use the product. Please read and understand this manual completely before using the product.
  • Page 2 Product Information & Specififications General Information Product Name VANQ Brand VD Series Controller Manufacturer Shenzhen VANQ Technology Co., Ltd. Model No. VD100-V1 VD100-V2 VD500 Power Plug Type US/EU/UK/AU/JP US/EU/UK/AU/JP Dimming RJ11/RJ12/RJ19/RJ45 RJ11/RJ12/RJ19/RJ45 RJ11/RJ12/RJ19/RJ45 Connector Type /M12 /M12 /M12 Input Voltage...

  • Page 3: Safety Precautions And Warnings

    Environment The product is intended to be used in indoor growing environments. The product can be used in wet environments. Working temperature is between -20°C ~ 40°C | -4°F ~ 104°F. Safety Precautions & Warnings Warning! Carefully read the warnings below before using or working with the product! DO NOT connect to live power until installation is complete.

  • Page 4: How To Use

    How To Use Connecting Controller to grow light as below instructions : Using a daisy chain setup, a maximum lights can be connected to one controller. The controller can dim the LED light from 0 to 100%. • Connect the dimming cable to the dimming port on the first LED light. •...
  • Page 5 Timer Turn on and turn off When the turn-on time and turn-off time are the same or turn-on time is smaller than the turn-off time, the timer will automatically turn off, and no manual operation is required. Set the system time Long press the "Time set"...

  • Page 6: Inspection, Maintenance And Repair

    (3) years from the original date of purchase. If the product shows any defects within this period and that defect is not due to user error or improper use, VANQ technology shall, at its discretion, either replace or repair the product using suitable new or reconditioned products or parts. In case VANQ technology decides to replace the entire product, this limited warranty shall apply to the replacement product for the remaining initial warranty period, i.e.

This manual is also suitable for:

Vd100-v1Vd100-v2Vd500
