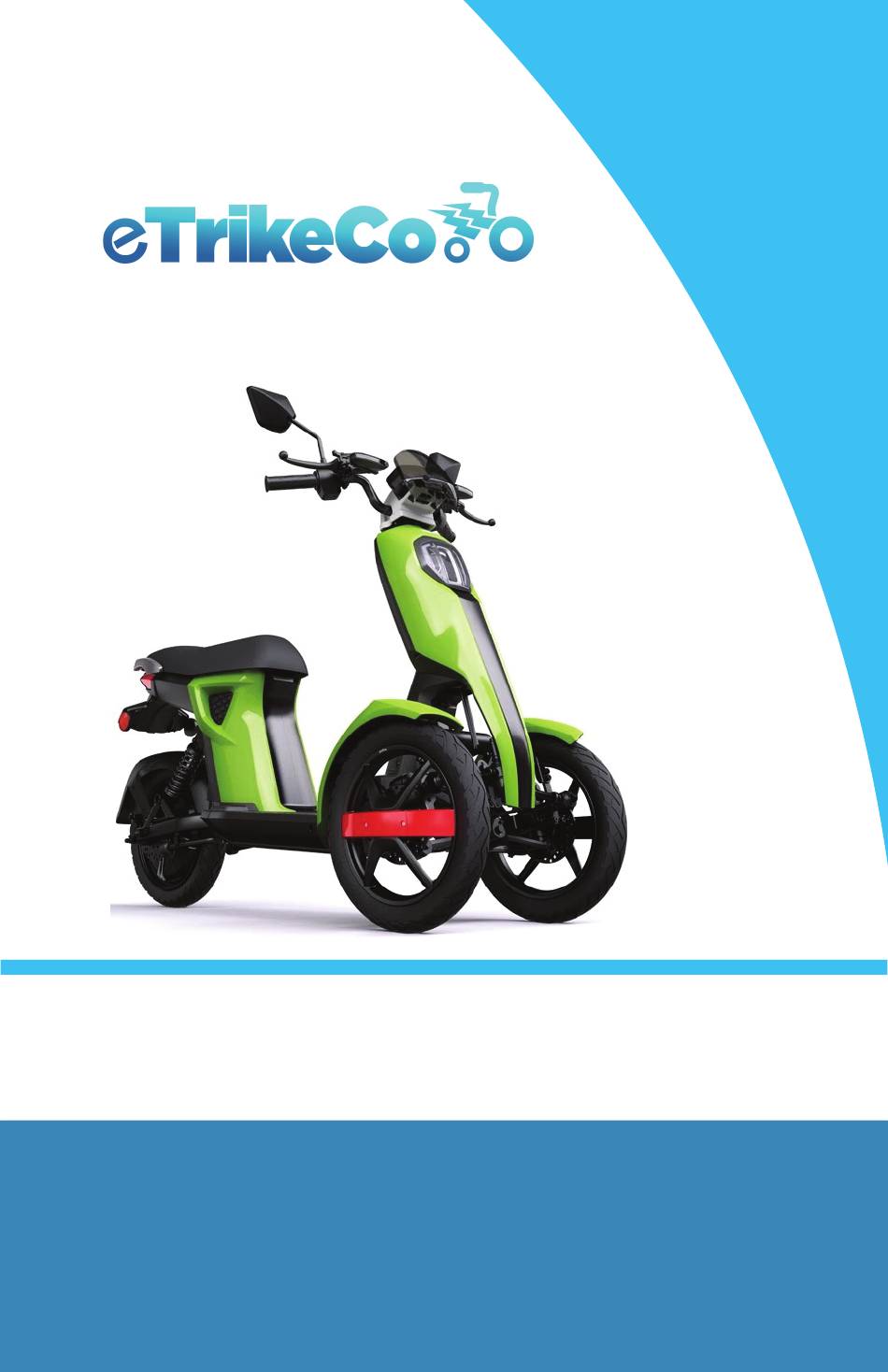

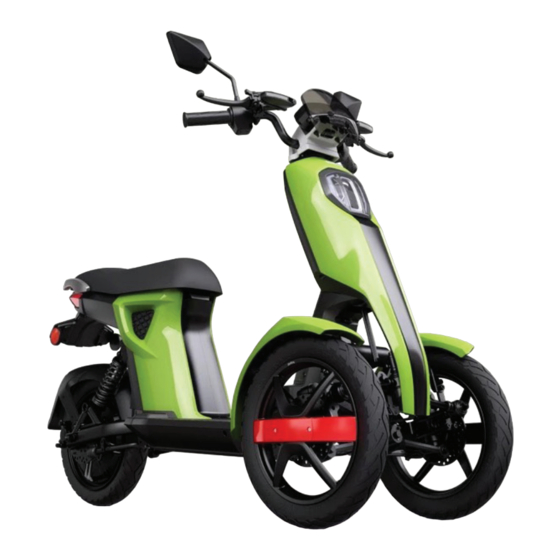

  • Page 1 Go Where There Are No Limits DO GOOD WHILE YOU GO OWNER’S MANUAL ETRiTANGO...

  • Page 2: Table Of Contents

    Introduc�on General Warning Technical parameters: Parts Descrip�on Rear mirror & wind board installa�on Remote control and keyless start bu�on Roll-lock and an� the� lock Dashboard and combina�on switch 8.Ba�ery using instruc�on 9. Troubleshoo�ng 10. Maintenance and repair 11. Vehicles Storage 12.

  • Page 3: Introduc�On

    INTRODUCTION Congratula�ons on the purchase of your new eTrike. This manual is designed to give you the informa�on that you need for the safe opera�on and maintenance of your eTrike. Please read it thoroughly before riding your eTrike. Your eTrike’s serial number is adhered underneath the VIN cap in the front interior panel.

  • Page 4: General Warning

    GENERAL WARNING Dear iTango users, please detail read the user manual carefully in order to ensure safety of you and others, to ensure high performance and stable driving of iTango before driving. 1.Instructions Please comply with the city traffic laws and regulations, you are not allowed to carry people;...
  • Page 5 Max loading weight 200kg Braking ≤2m(20km/h) Capacity 2 people distance (Dry ground) ≤3.5m(30km/h) Standard power Braking ≤3m(20km/h) 4KWh/100km(20km/h) consumption distance (Dry ground) ≤4m(30km/h) Frame Front shock absorber Rear shock absorbar Front Tyre Rear Tyre Front tire pressure 225±10 Rear tire pressure 225±10 Rim type(Aluminum) Front:1.4-12 Aluminum rim...
  • Page 6 Maximum steering angle ≤32⁰ Turning radius 2.50m Maximum drop height of 180mm front wheel Battery Battery type 18650 lithium batter Voltage DH-05-10 20AH Capacity DH-05-12 26AH AC 220V or 110V(optional) Charge Input voltage Charge output voltage Standard charge current 3A (iTango Classic) 5A (iTango HO) Standard charge time DH-05-10...
  • Page 7 range, battery storage Ambient temperature 0⁰C to 45⁰C range, battery charging Battery protection system Over discharge protection, short-circuit protection, temperature protection, overcharge protection, over current protection, balance protection of battery Others USB charge 5V 1A Speed meter Fuse specifications(A) Headlamp sepecification 12V LED Front position lamp 12V LED...

  • Page 8: Parts Descrip�On

    3. Parts Description Rear mirror Left combination switch Cushion Tail light Cushion keyhole Main stand Right combination switch Wind board Anti-theft keyhole Head light Rear handrail Side reflector Rear reflector...

  • Page 9: Rear Mirror & Wind Board Installa�On

    4. Rear mirror & wind board installation 1. Tighten the rear view mirror as clockwish 2. Tighten the bolt with 14# wrench 1. Install the wind board 2. Put the screws into the rubber flat gasket 3. Tighte the screws as clockwish by screwdriver...

  • Page 10: Remote Control And Keyless Start Bu�On

    5. Remote control and keyless start button Keyless start button ENGINE START STOP Locking button 1. When you stop driving. Press the keyless start button, the vehicle is locked, and iTango will automatically enter into the primary mode of anti-theft; 2.

  • Page 11: Dashboard And Combina�On Switch

    7. Dashboard and combination switch Light se nsor Width indicator light Low beam indicator light Always on when startup the low beam light is on-slate Parking indicator light High beam indicator light On when parking the high beam light is on-state Left-turning indicator light Right-turning indicator light the left-turning light is on-state...
  • Page 12 Current gear Charging state reverse gear, Forward gear 1, forward gear 2 Battery power display Fault code F: Full charge/ E: power empty Current Speed Accumulated mileage Remeining electricity / Remaining charging time High beam Low beam Passing lamp Turn light Left combination switch: 1 headlamp high switch: Press the “...
  • Page 13 Right combination switch: Gear switch Headlight switch Smart button ‘Hi’ 1. gear switch Smooth to functions interchange for Gear 1, 2 and reverse gear. 2 headlight switch: There are three positions in the headlight switch: : On this position, turn on the headlamp, position lights, taillights and instrument lights.

  • Page 14: Ba�Ery Using Instruc�On

    8.Battery using instruction Indicator light Power display button Charge connector Battery power indicator light : 1. Charging state, the indicator light flashes and shows current power level All lights on and no longer flash if full charging. 2. Uncharged state, press the button of power display: •...
  • Page 15 Vehicle charging mode Rotate and open the charging connector of vehicles, first insert the charger plug into the charging connector of vehicles, when you hear "ka", it means that the charger plug is connected with the connector. •Then connect the charger plug with power socket of room, it begins charging when the indicator light turns green to red.
  • Page 16 Battery service environment • Please use battery under ambient temperature between -10 and 45 degrees centigrade • Please avoid water, beverage and corrosive liquid into the battery • Please avoid the battery near the heat source, open flame, flammable and explosive gas, liquid. •...

  • Page 17: Troubleshoo�Ng

    7. At low temperatures, the capacity of lithium batteries will capacity fading in varying degrees: the available capacity for reference: -10 °C is 70%, 0°C is 85%, and 25 °C is 100%. 8. The most suitable storage capacity of the battery is 50%., long-term storage will lead to irreversible capacity fading of the battery if less than 10% or higher than 90% of the power, If long-term storage of batteries, please keep the battery at -10°C-to 30°C, and to minimize capacity...

  • Page 18: Maintenance And Repair

    temperature is too low. and phenomenon the charge-discharge of the battery capacity is weaken The battery is The charger plug is not well Check whether the plug is not charged connect with the battery loose, and replace the socket, and the charger is charger damaged Stop...

  • Page 19: Vehicles Storage

    Regular maintenance The first maintenance should be implemented after one month or 500km based on sales date After that, complete inspection and maintenance should be implemented with every six months or 3000km in order to keep your vehicles in the best security state and ensure safety of driver.
