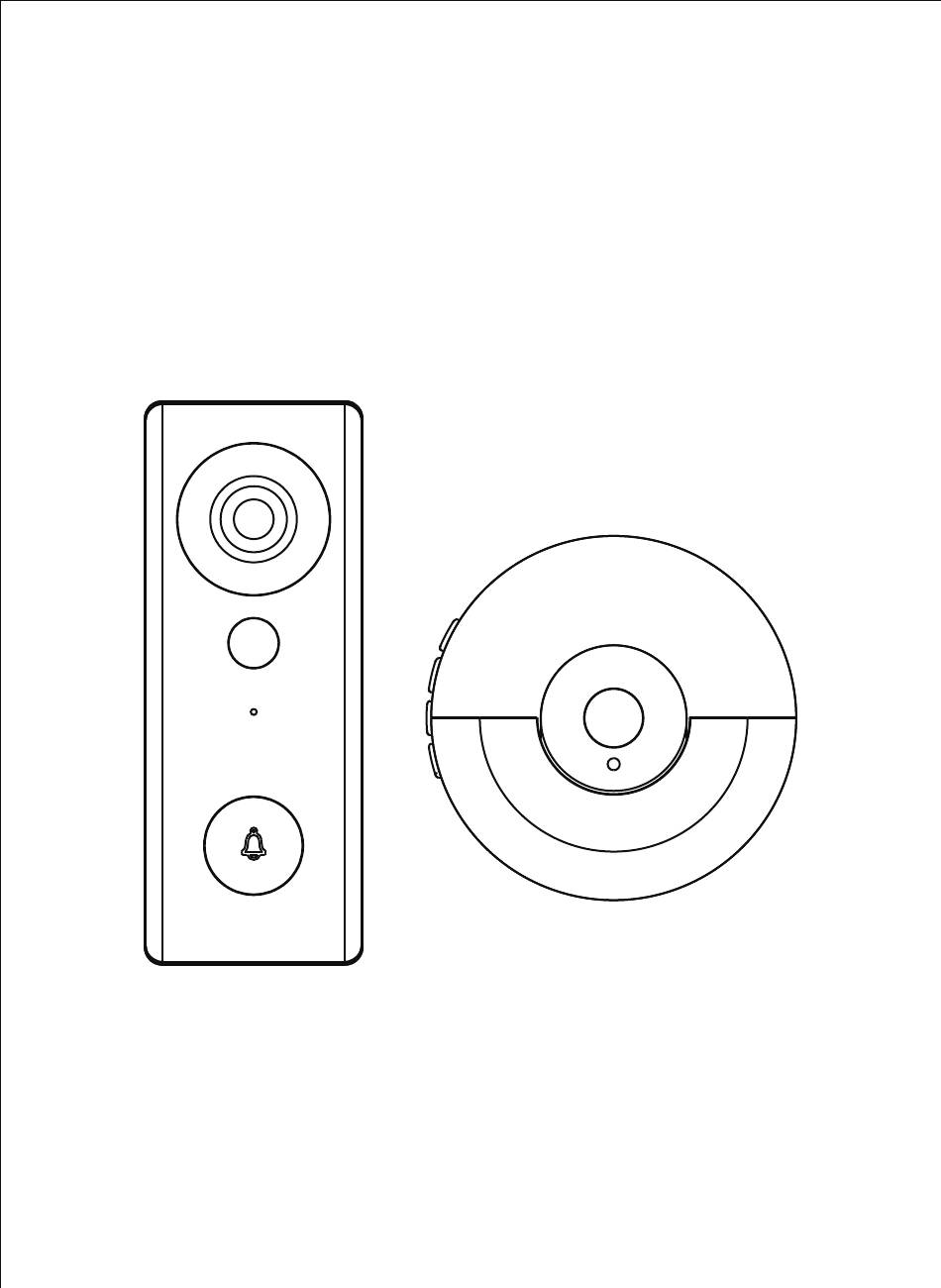

VIDEO DOORBELL
User Manual
Please read the user manual before use
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF006-718D and is the answer not in the manual?

Questions and answers

Related Manuals for Yiroka WF006-718D

Summary of Contents for Yiroka WF006-718D

  • Page 1 VIDEO DOORBELL User Manual Please read the user manual before use Made in China...

  • Page 2: Table Of Contents

    CONTENTS 1. Product Description ........ 2. Paired with Door Chime ......3. Download APP and Connect....4. Setting ............ 5. Share Device .......... 6. Remove Device ........7. More Service........... 9-10 8. How to Connect Doorbell with Google Assistant........10-11 9.

  • Page 3: Product Description

    1. Product Description Camera External Power Port IR Lamp (AC&DC12-24V/1A) Indicator Light Ring Button Speaker Anti-theft Hole (camera can be locked by a screw) Reset TF Card Slot USB Port Technical Parameters Tuya Smart Power Supply External power input: AC&DC12-24V/1A Press the button to activate the doorbell Doorbell Button Red light solids on: the camera network is...
  • Page 4 " Sensor Type CMOS 2-mega pixel Pixel Min color 0.01Lux@F1.2 Min Illuminance Color 0.01Lux@F1.2 Black and white 0.001Lux@F1.2 Viewing Angle 130° Shutter 1/25~1/100,000 per second High power LED with ICR Video Compression H.264/H.265 Standard Compression 32Kbps~2Mbps Output Bit Rate Maximum Image 1920 X 1080 Resolution 1~25 per second...

  • Page 5: Paired With Door Chime

    2. Paired with Door Chime Volume Previous Music PIR Motion Sensor Next Music Indicator Light (blue) Night Light (white) Video doorbell is turned on before pairing with the door chime: Video doorbell can be used with door chime (products already have been paired in factory).

  • Page 6: Download App And Connect

    3. Download APP and Connect Tuya Smart is available for both IOS and Android. Search the name " Tuya Smart " in APP store or scan the QR-code to download the APP. Support Android Download APP(IOS&Android) Set Up Router This device only supports 2.4GHz WiFi router, does not support 5GHz router, please set the relevant parameters of the router before WiFi configuration.
  • Page 7 Connect Click " Add Device " or " + " icon to add camera. Click " Security & Video Surveillance " >> " Smart Camera(Wi-Fi) " or " Smart Doorbell ". my home In "Add Device" interface, click "Next" icon, then enter WiFi name and password.
  • Page 8 Use video doorbell to scan the QR code in the mobile phone (please place the mobile phone QR code facing the video doorbell about 15-20cm) until hear doorbell " dong dong dong " sound prompt and doorbell indicator flashes blue. Then click "I Heard a Prompt" icon. When connecting, please make sure your router, mobile phone and doorbell are as close as possible.

  • Page 9: Setting

    4. Setting In the "Smart Doorbell" interface, you can click " " icon to set the doorbell basic functions. Smart Doorbell 5. Share Device In "Smart Doorbell" setting interface, you can click "Share Device" icon, then chick "Add Sharing" icon and enter their phone number or email to share the device.

  • Page 10: Remove Device

    6. Remove Device In "Home" interface, press "Smart Doorbell" icon for 1s, then select the smart doorbell and click "Remove Device" to remove it.

  • Page 11: More Service

    In "Smart Doorbell" interface, click" " icon, and click "Remove Device" at the end of setting interface to remove it. Remove Shared Device If you don't need to share the device, you can click the shared account, swipe left to click "Delete", and no more share the device.

  • Page 12: How To Connect Doorbell With Google Assistant

    ******** 8. How to Connect Doorbell with Google Assistant 1. Set Up Google Assistant Device 1) Power on the Google Assistant device (like Google Home or Google Next Hub etc.) and connect to same wifi network with doorbell camera. 2) Download and open the Google Home app, click "get started" icon and log in your google account, then finish the related setting as per instruction.
  • Page 13 2. Connect Tuya Smart with Google Assistant 1) Click "+" icon in the upper left corner, then click "Set up device", then click "Works with Google". 2) Search and click "Tuya Smart" in the add devices, remove it to the room you need and finish the setting. 3) Control the doorbell by Google Assistant After setting done, you can control your Tuya Smart doorbell by giving voice commands to Google Assistant.

  • Page 14: How To Connect Doorbell With Alexa

    9. How to Connect Doorbell with Alexa 1. Set Up Alexa Device 1) Power on the Alexa device (like Amazon Echo Show or Amazon Echo Spot etc.) and connect to same wifi network with doorbell camera. 2) Download and open the Amazon Alexa app, log in your Amazon account.
  • Page 15 2. Connect Tuya Smart with Alexa 1) Click " " icon in the bottom right corner, then click "Skills & Games". 2) Search and click " Tuya Smart ", then click "Enable To Use" and finish the setting. 3. Control The Doorbell by Alexa After setting done, you can control your Tuya Smart doorbell by giving voice commands to Alexa.

  • Page 16: Product Installation

    10. Product Installation Before installation, please complete the operation as per user manual and place the doorbell in the installation location to test doorbell work well or not. Note: Don’t install the doorbell on the metal door to avoid metal door shield the wifi signal.
  • Page 17 2) Power Cable Connection & Doorbell Installation: ① ② Fix the power cable to doorbell Open the 2 connector upwards, fix back side with screw. the power cable other side to the power cable connector and close the connector downwards. wall wall w a ll...

  • Page 18: Functions

    11. Functions Two Way Audio When the visitor push the doorbell button, you will get a call notification. You can see and hear the visitor if get through the call in your APP. Motion Detection Call notification will be sent to your phone APP when movement is detected.

  • Page 19: Faq

    13. FAQ 12. FAQ What should I pay attention to when testing? Please read our manual carefully before testing, if any questions, please check with our factory. Most importantly, when speak with visitor in front of doorbell, pls place the phone at least 5m away from the doorbell, which won’t cause signal interference or noise.
  • Page 20 Why Can’t I receive the push message notification by phone APP? Please confirm that the APP has been running well on the phone, and relevant reminder function has been opened like message notification and authority confirmation in the phone system. Why doesn’t the device identify the SD card? Please insert the SD card before doorbell powered on.
