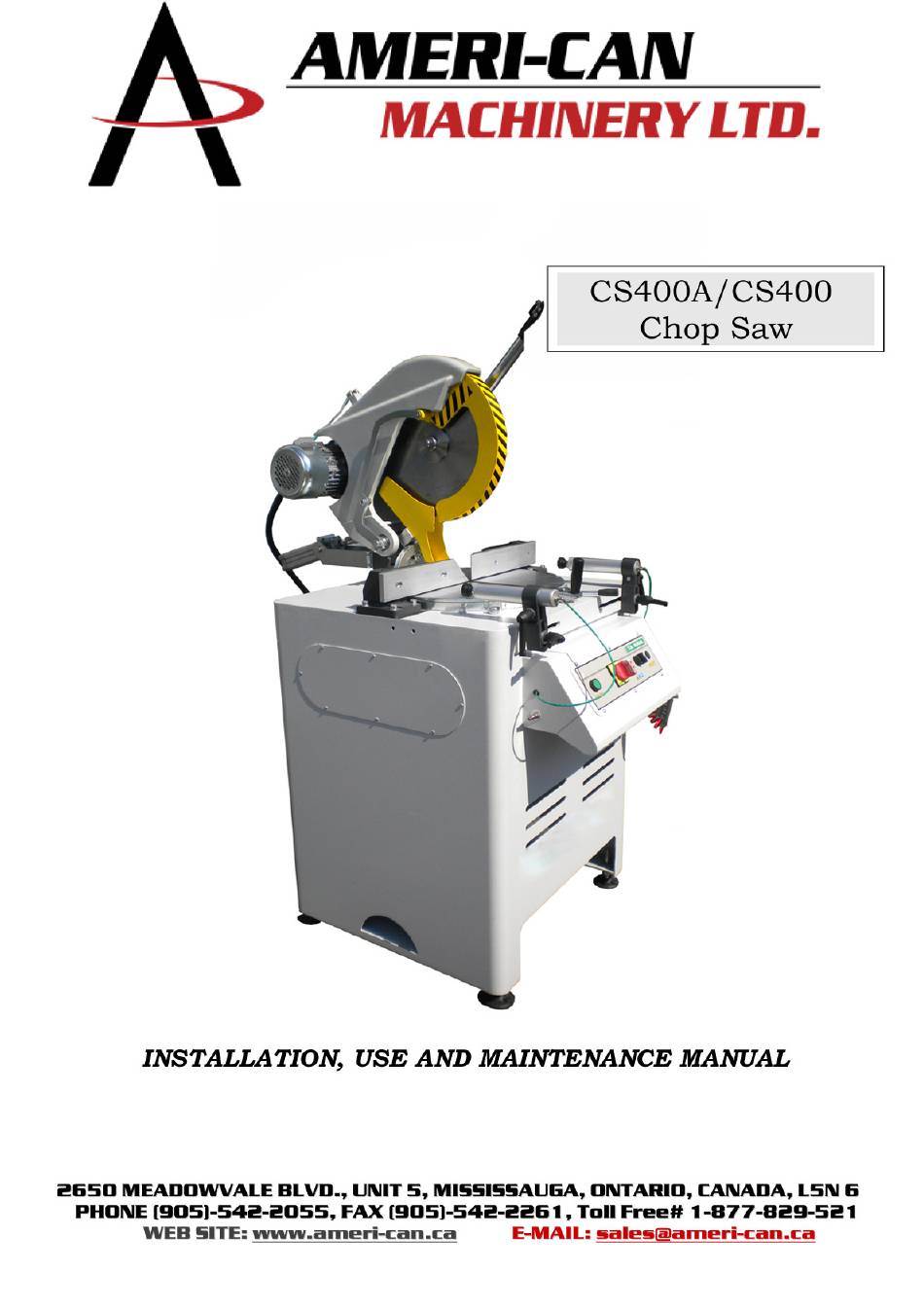

  • Page 2 1. MANUAL USE AND CONSERVATION WHO IS IT FOR This manual is intended for the machine user and for the persons in charge of moving, installation, using, surveillance, maintenance and final dismantling of the machine. AIMS OF THE MANUAL The manual explains the correct use of the equipment, as foreseen at the design stage and in the technical data. It includes instructions for moving the machine as well as for its correct and safe installation, assembly, adjustment and use, as well as supplying information concerning maintenance interventions and how to order replacement parts.
  • Page 3 new owner in order to facilitate the sending of any additional parts to be integrated into the manual. For further information or clarifications, it is possible to contact the Assistance Service (see section 13.2) The Manufacturer declines all responsibility in the event of the following: Incorrect use of the machine ■...

  • Page 4: Installation

    WARNING!! Once the packing has been removed, the machine may only be moved using a suitable truck. 4. OPERATION NECESSARY FOR THE INSTALLATION All stages of installation must be carried out by qualified personnel 4.1 POSITIONING It is necessary to make sure that the machine is correctly positioned in order to guarantee its stability and to ensure the correctness of the operator's working position.
  • Page 5 WARNINGI BEFORE SUPPLYING POWER TO THE MACHINE, MAKE SURE THAT THE CONNECTIONS HAVE BEEN MADE CORRECTLY ORDER PREVENT THE OCCURRENCE OF SITUATIONS THAT MAY ENDANGER THE OPERATOR. WARNING! CHECK ROTATION BALDE.VERIFICARE IL SENSO DI ROTAZIONE DELLA LAMA. IN CASE THE ROTATION WOULD RESULT ON THE CONTRARY DIRECTION THEN INVERT TWO OF THE THREE CABLES L1/L2/L3 5.
  • Page 6 5.3 FORBIDDEN USE The machine has not been designed and built to carry out any machining other than that described in this manual. The operator must avoid carrying out any unsafe operations or operations that are not foreseen as part of machine use and which could compromise personal safely.
  • Page 7 MACHINE COMPONENTS LIST...
  • Page 8 DESCENDING CUTTING OFF MACHINE PROTECTION COVER GENERAL ELECTRIC SWITCH HORIZZONTAL CLAMPS HORIZZONTAL GONIOMETER VERTICAL SQUARE START BUTTON A ROTATING WORKING TABLE START BUTTON B ROTATION HANDLE OPEN/ CLOSE CLAMPS BUTTON TABLE ROTATION LOCKING RETURN CYLINDER AIR PLUG LEGS BLADE LOCKING NUT ROLLING TABLE PREDISPOSITION CONTROL PANEL VERTICAL GONIOMETER...

  • Page 9: How To Use

    START BUTTON B HOW TO USE 7.1 PRELIMINARY WORK SEQUENCE To turn on the cutting off machine the switch must be activated (A)
  • Page 10 Then it is necessary to close the clamps otherwise the blade motor will not run. To close the clamps the CLAMPS CLOSING BUTTON must be pressed. IMPORTANT!!! Start the work sequences below only after a complete reading of this manual and the consciousness that you understand the correct use of the machine.
  • Page 11 CLAMPS After the clamps are closed and the switch is activated, it will be possible to start the blade motor. Press both the (13) and (12) buttons to start working. If one of the two buttons is released the blade will stop and return to the original position. This is necessary because the machine must stop if both the hands are not used.
  • Page 12 As previously said, for security reasons, it is not possible to start the machine if the clamps are not closed. WARNING!!! BE SURE IN EVERY WAY OF THE CORRECT POSITIONING OF THE PROFILE BETWEEN WORKING TABLE AND CLAMPS. CLAMPS REGULATIONS 9 9.1 VERTICAL CLAMPS REGULATION: : To regulate the vertical clamp movement :...
  • Page 13 WORKING TABLE REGULATION Example. Rotate the table till it is positioned to the 45°reference (B) if you need a 45° cutting. To cut at intermediate angles just leave the table in the intermediate position then turn the lever (A) in the arrow direction.

  • Page 14: Technical Data

    REPLACING BLADE To replace the blade follow these instructions: Be sure that the head is in the original position (the (A) cylinder must be closed) and the main switch must be turned off. - Remove the locking sieger (D) of the lever so the blade protection cover (C) will be free to enter inside the head and a passage will opened for the blade.
  • Page 15 CUTTING DIAGRAMS...

  • Page 16: For Maintenance

    INSTRUCTIONS MAINTENANCE WARNING!! It is important that qualified personnel carry out periodical maintenance, inspections and servicing of the unit used in order to avoid those breakdowns that may, directly or indirectly, cause damage to people, animals or property. 14.1 SETTING UP FOR MAINTENANCE Before proceeding to carry out any maintenance, it is necessary to cut off the electrical and pneumatic supplies to the machine ( remove the plug from the mains electricity and remove the pneumatic supply pipe).
  • Page 17 HOW TO SOLVE ORDINARY PROBLEMS 15.1 COMMON PROBLEM LIST PROBLEMS CAUSE SOLUTION THE MACHINE DOES NOT START Main switch not enabled Enable switch Missing phase THE MACHINE STOPS DURING Enable phase OPERATIONS Thermal overload Find the cause and eliminate it Worn blade BAD CUTTING Replace blade...

  • Page 18: Electric Diagram

    WARNING!! WHEN THE MACHINE IS TO BE DECOMMISSIONED BECAUSE IT HAS BECOME OBSOLETE OR IT HAS IRREMEDIABLY BROKEN DOWN, IT MUST FIRST OF ALL BE PUT OUT OF SERVICE BY BEING RENDERED INOPERATIVE AND ANY DANGERS REMOVED. DISCONNECT THE MACHINE FROM THE MAINS ELECTRICITY, DISCONNECT THE AIR PIPES AND REMOVE ALL TOOLS AND ADDITIONAL PARTS.

  • Page 19: Pneumatic Diagram

    PNEUMATIC DIAGRAM...
