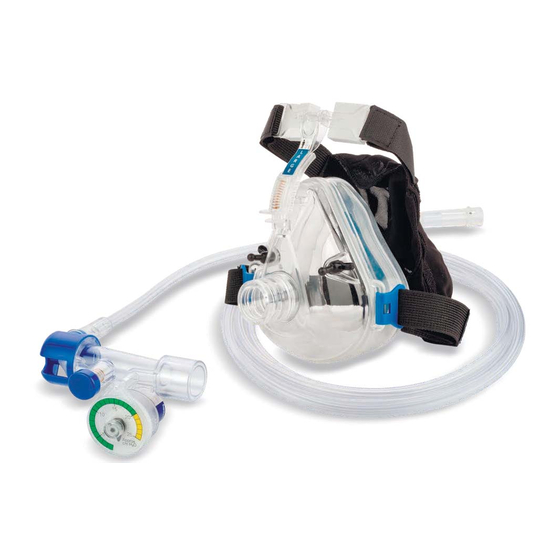

Mercury Medical FLOW SAFE II Quick Start

QUICK START
1. Select appropriate mask size using Sizing Chart -
Large Adult, Small Adult or Child.
2. Connect oxygen tubing to flowmeter or regulator.
3. Adjust oxygen flow as indicated on yellow sticker
(Diagram 2)
attached to oxygen tubing
per hospital/system protocol.
*Manometer will not register until placed on patient.
4. Place mask on patient's face and adjust with
Velcro strap on each of 4 points.
5. Squeeze forehead adjustment tabs to adjust mask.
(Diagram 4)
· Quick release clips allow fast access to remove mask.
· Spring action forehead pads allow adjustment of
mask on bridge of nose.
6. Check manometer and adjust flow to achieve desired
pressure.

CPAP with Nebulizer

7. Place T-Piece between Mask and CPAP Valve.
8. Place medication in medication bowl.
9. Attach second gas source to nebulizer.
10. Adjust second gas source to manufacturer's
recommended flow rate.
11300 - 49th Street North • Clearwater, Florida 33762-4807 USA
Your Need ... Our Innovation
(Diagram 1)
or adjust flow
(Diagram 2)
(Diagram 3)
(Diagram 5)
