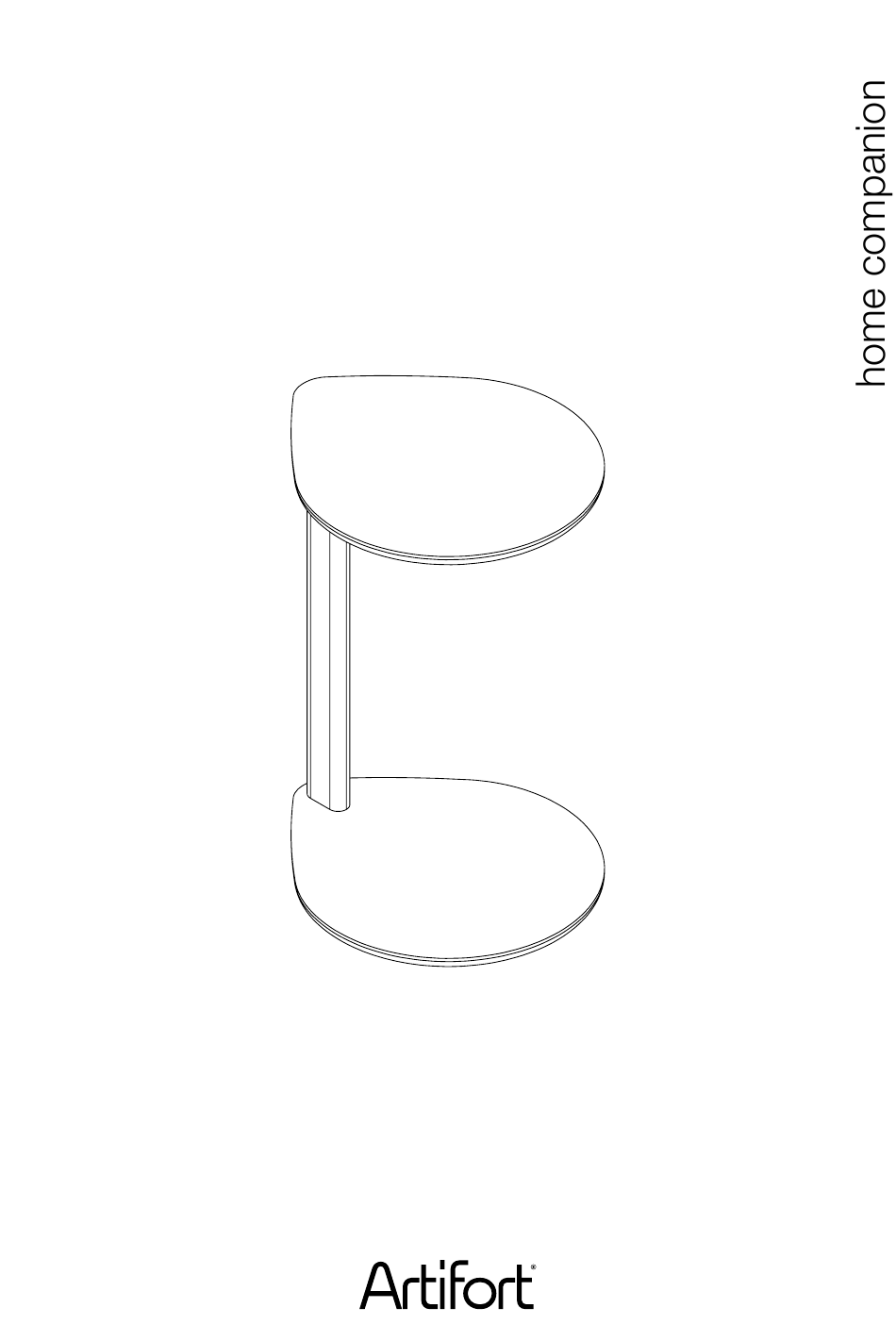

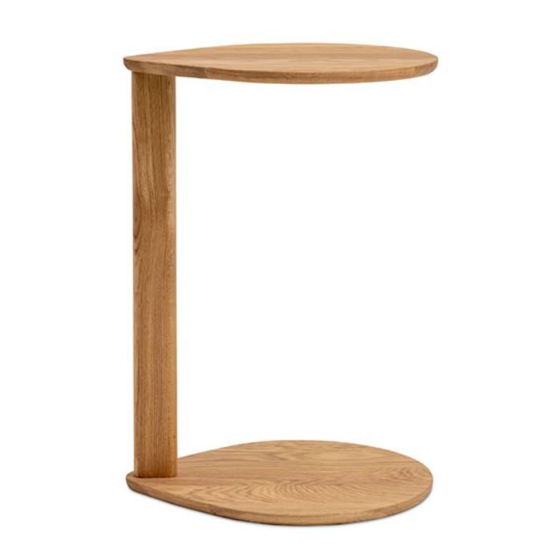

- Page 1 Compass Assembly guide Compass | Mike&Maaike...
- Page 2 Index Mounting materials Tools Table parts Assembling instructions...
-
Page 3: Mounting Materials
Mounting materials M5x12 M6x50 Felt base stickers Tools Allen key Allen key size 4 size 3... - Page 4 Table parts Wooden base with mounting plate Mounting plate for wooden top Wooden beam Side table | 53 cm Work table | 61 cm Wooden top (upside down)
-
Page 5: Unpack The Parts
Unpack the parts Put the wooden top upside down. Unscrew the mounting plate. Make sure to place the wooden parts on a clean surface to prevent damage. The mounting plate is fixed with a single bolt in the wooden top to make sure it can be transportated safely. -
Page 6: Assembling The Table
Assembling the table Place the mounting plate on the wooden beam. Align the connection point of the wooden beam with the sunken holes in the mounting plate. Fixate the plate with two bolts and tighten carefully. Sunken side up Do not overtighten the bolts. This may damage the wood. - Page 7 Assembling the table top Place the beam with the mounting top onto the wooden top. Align the holes in the mounting plate onto the connection point in the recess of the wooden top. Fixate the plate with five bolts and tighten carefully. Do not overtighten the bolts.
- Page 8 Assembling the table base Place the wooden base on the wooden beam and align the holes from the wooden base with the beam. Fixate the wooden base with two bolts and tighten carefully. Make sure the metal mounting place is facing up.
- Page 9 Assembling the table base If required, place the five felt stickers underneath the wooden base on the markers. Felt base stickers...
- Page 10 Turn the table around Tested for normal side table or laptop use. Tested for max 15 KG. Do not sit on this product. Your Compass is ready for use.
- Page 11 Artifort is a Lande Group brand | P.O. Box 115 | 5480 AC Schijndel | The Netherlands T +31 73 658 0040 | info@artifort.com | www.artifort.com /weloveartifort /artifort /artifort /artifort_furniture /company/artifort...
