Summary of Contents for R&T V2600

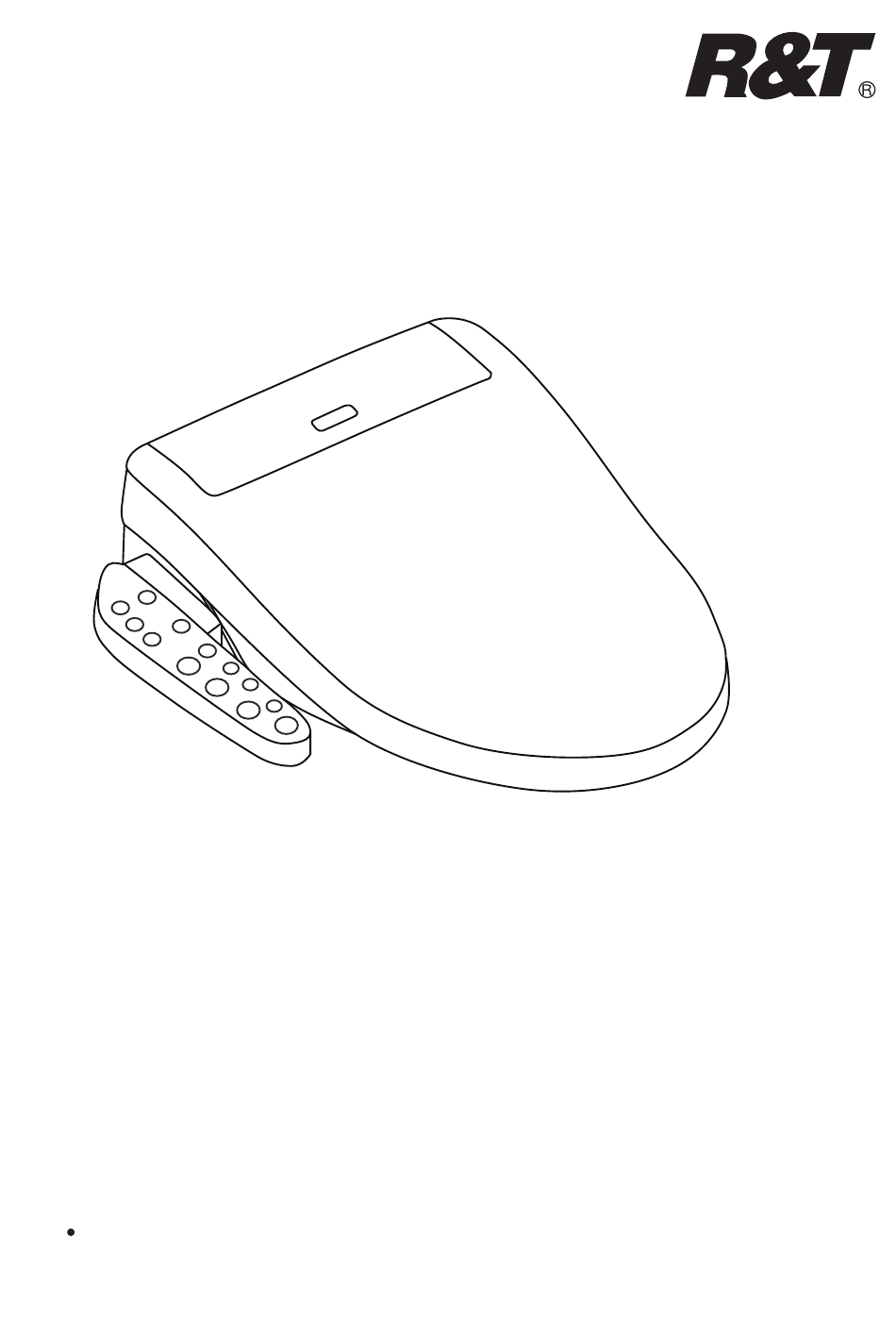

- Page 1 V2600/V2601 Installation Manual Thank you for choosing our products.Please read the instructions carefully before installation and keep it available for future maintenance or reference.
-
Page 2: Table Of Contents
Content Important safeguards Technical specification List of packing Parts identification Installation instructions 1.Installation dimension 2.Installation of mounting plate 3.Installation and disassembly of main unit 4.Connecting the water supply pipe Usage instruction 1.Checking the power and water supply 2.Function illustration of keys in main unit and actuator Daily maintenance 1.Main unit maintenance 2.Spray nozzle maintenance... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 4 IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc. 2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place where is not easily got wet.
-
Page 5: Technical Specification
Technical Specification Model V2600 V2601 Rating pressure 110-120V, 50/60Hz Rating power 1050-1250 0 W Main Unit Water pressure Minimum water pressure 0.07MPa (20L/min. flowing pressure). range Maximum water pressure 0.8MPa (Hydrostatic pressure) Electrical wire length is about 1.0m Container capacity... -
Page 6: List Of Packing
Packaging List Base plate Base Plate Parts Water Supply Assembly T-connector (1pcs) Installtion Manual Installtion Manual Installtion Installation paperboard Manual Installation Installation paperboard paperboard Main Unit... -
Page 7: Parts Identification
Main unit identification Water discharging cover Control panel Main unit Water inlet disassembly connector button Socket REMETTRE RESET TEST WARNING: TEST BEFORE EACH USE 1. PLUG INTO RECEPTACLE 2. PRESS RESET BUTTON: VISUAL INDICATOR APPEARS. 3. PRESS TEST BUTTON: VISUAL INDICATOR DISAPPEARS. 4. -
Page 8: Installation Instructions
Installation lnstruction Installation dimension Note: Please check if the installation dimension matching the user’s toilet. Installation of mounting plate Press the expansion nuts into the installation holes in the toilet, then install the base plate, plastic plates, flat washers and bolt as per the drawing and tighten the bolts. Bolt The black pin frontward and groove upwards. -
Page 9: Installation And Disassembly Of Main Unit
Installation and disassembly of main unit Disassembly Installation Press the “removal button” ,until a “click” Place the toilet seat on the base plate is heard, and pull it out. until a "click" is heard. click click Installation Disassembly Note: Before pulling out the seat, release hand from “removal button”. Connecting the water supply pipe 1. -
Page 10: Usage Instruction
Installation instruction Checking the power and water supply 2. Insert power plug into power socket, press protection switch. Indicator light is on which 1. Connect the water supply hose and turn on the means there is electricity. (Prior to usage, press angle valve. - Page 11 Control panel introduction Cancel all actions/functions including rear cleaning, Stop front cleaning and drying. When seated, short press “Rear/Massage” to wash hip; short press “Rear/Massage” again to start massage function. Hip wash shall automatically switch to drying if remain seated. The drying action will also finish Rear/ automatically.
-
Page 12: Daily Maintenance
Daily maintenance Main unit maintenance 1. Shut of power supply at maintenance. 2. Turn the seat upward open, press down the button located on the right side of main unit and pull out the seat.Wipe the stain with a soft damp cloth. 3. -
Page 13: Inlet Filter Cleaning
Inlet filter cleaning 1. Pull out electrical plug, then shut off water supply valve and remove water supply hose. 2. Remove the filter. Use the brush to clean the filter. 3. Put the filter back into inlet after cleaning. Then connect the water supply pipe. Remove the filter. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution Water supply hose buckling Solve the buckling causes block No flushing Turn on the fill valve Fill valve is off Connect water supply and Water supply is cut off wait for the water Water supply hose buckling Solve the buckling causes partial block Fill valve is not fully turned on... - Page 16 Xiamen R&T Plumbing Technology Co.,Ltd. Add: No. 18, Houxiang Road, Haicang District, Xiamen, China Tel: 86-0592-6539788 Fax: 86-0592-6539723 E-mail: rt@rtplumbing.com Http: //www.rtplumbing.com The picture of product may not entirely consistent with actual appearance and color because of products improvement, please in kind prevail. ASVFA26000002A-1.9...
