Summary of Contents for LEFEET S1 PRO
- Page 1 Hello LEFEET S1 PRO Water Scooter User Manual...

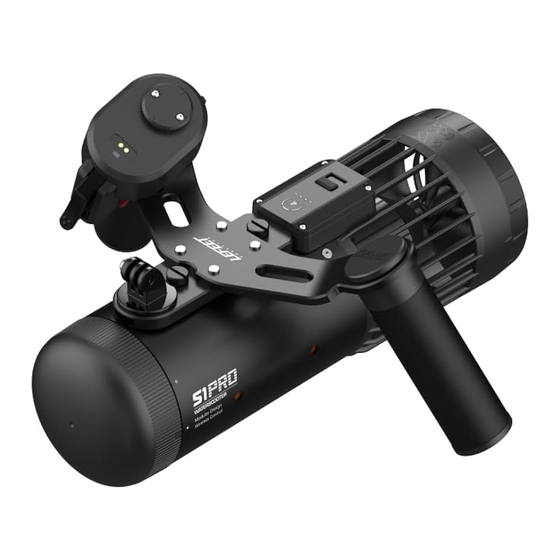

- Page 3 LEFEET S1 PRO is a hi-tech water scooter which provides power propulsion to freedivers and SCUBA divers. LEFEET S1 PRO is easier to carry and use due to its compact and lightweight design, with 3-speed settings to meet your needs. The modular design provides for diversi cation of use and a safer overall experience for you.
-
Page 4: Table Of Contents
I - GENERAL INFORMATION V - HOW TO USE 1.1 What’s in the box? ..........4 5.1 How to use your LEFEET S1 PRO ........14 1.2 Safety warnings ............. 5 5.2 How to pair with the main unit and the remote control .............. -
Page 5: I - General Information
Please read all instructions before using LEFEET S1 PRO. This manual will guide you to understand the function, use and proper maintenance of LEFEET S1 PRO. If you have any questions or cannot nd the information you need in the manual, please feel free to contact us via the following method: service@lefeet.com. -
Page 6: What's In The Box
O Ring (Spare) x 1 Remote Control Charge Cable x 1 Lost-prevention Strap x 1 Quality Certi cate x 1 Hello Hello User Manual x 1 LEFEET S1 PRO Water Scooter LEFEET S1 PRO Water Scooter User Manual User Manual Fig. 1... -
Page 7: Safety Warnings
PRO, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or other serious injuries. Use the LEFEET S1 PRO at your own risk. We are not responsible for mishaps due to lack of common . To better ensure your safety, ALWAYS USE APPROPRIATE PROTECTIVE GEAR, read and follow all instructions and warnings in the user manual. - Page 8 This product only can be used in water. Please don't operate LEFEET S1 PRO in the air, avoid long hair or clothes involved in the propeller.
-
Page 9: Product Features
II - PRODUCT FEATURES 2.1 PRODUCT DIAGRAM Trigger Remote Control Handle Bracket Charging Port Remote Switch / Sports Camera Mount Speed Switch Key Main Unit Cover Handle Quick-Disassemble Main Unit Switch/ Screw x 2 Speed Switch Key Main Unit State Indicator Handle Propeller Cover Main Unit... -
Page 10: Remote Control Diagram
2.2 REMOTE CONTROL DIAGRAM Remote Control Charging Port Remote Indicator Remote Switch / Speed Switch Key Trigger Trigger Lock Fig. 3... -
Page 11: Assembling
III - ASSEMBLING 3.1 HANDLE ASSEMBLY Before using the LEFEET S1 PRO, make sure the Handles are tightened with Handle Knob and Remote Control. · · The instructions of this step are only for right-handed users.The left and right positions of the Remote Control can be adjusted according to user’s preference. -
Page 12: Main Unit
3.2 ASSEMBLING THE HANDLE BRACKET ONTO THE MAIN UNIT Screw x 2 Track Track Hole Fig. 6 STEP 1. Align the track on the Main Unit and STEP 2. Take out two Quick-Disassemble the track hole on the Handle Bracket. Screws and fasten them to the Main Slide the Handle Bracket onto the Unit (install with screw driver or coins). -
Page 13: Install And Remove The Battery
3.3 INSTALL AND REMOVE THE BATTERY Open the Battery Cover, and insert the battery STEP 1. into the compartment (Fig. 7). STEP 2. Carefully align the Battery Pins on the battery, then t them together (Fig. 7). Fig. 7 Make sure the Battery Cover is properly pressed STEP 3. -
Page 14: Charging
· Please make sure the Main Unit is turned o before you remove the battery (see section 3.3). · Please unplug the Battery Charger when it is not being charged. 4.1 HOW TO CHARGE THE LEFEET S1 PRO In The Charging Fully Charged STEP 1. -
Page 15: How To Charge The Remote Control
· Do not under any circumstances use the Remote Control while it is charging or connected to the adapter. · Please clean the water or dirt at the contact before charging. STEP 1. Using the LEFEET magnetic charging cable, align the metal contacts on the handle and start charging, the light will ash when charging. STEP 2. -
Page 16: How To Use
STEP 5. Press both Switch/ Speed Switch Key on Remote Control and Main Unit for 2 s to power o your LEFEET S1 PRO. If the Main Unit have no response in 30 minutes, Remote Control have no response in 30 minutes,... -
Page 17: How To Pair With The Main Unit And The Remote Control
5.2 HOW TO PAIR WITH THE MAIN UNIT AND THE REMOTE CONTROL The Remote Control and Main Unit are paired by default in factory setting. If not, please follow the steps as below. Long press the Remote Switch/Speed Switch Key on Remote Remote Switch/ STEP 1. -
Page 18: Maintenance
In order to maintain good performance, please refer to the following steps for maintenance after each use: STEP 1. Immerse the LEFEET S1 PRO in a container full of clean fresh water (not seawater) for 30 minutes. STEP 2. Hold the Handles with both hands and turn it on with slow speed for one minute and repeat it for 2~3 times while the product is completely immersed into water. -
Page 19: Clean Issues
· Avoid damaging the propeller while cleaning as it is a necessary part of the scooter. STEP 1. Rotate the Propeller Cover on the bottom of LEFEET S1 PRO clockwise and pull out the cover (please be careful of your intensity in case of damage). -
Page 20: Storage
6.2 STORAGE · Please do not store LEFEET S1 PRO in too high or too low temperature, too dry or too wet, direct sunlight and dust environment, which may cause damage over time. · Please fully charge LEFEET S1 PRO before storing to prevent over discharge when it is not in use. -
Page 21: Lefeet S1 Pro Speci Cations
Note: Main Unit Net Weight 5.51lb ±2% 1. As the battery power is used up, the power of LEFEET S1 PRO will gradually ) (Including Battery) Dimensions 11.8 x 11.8 x 6.3 in 32°F ~ weaken, and there will be an automatic speed reduction and speed shift. -
Page 22: Warranty Service
In order to achieve these aims, you authorize LEFEET to transfer your information to any country where we do business and to provide it to entities acting on our behalf. We may also disclose... - Page 23 2) Special, incidental, punitive, indirect or consequential damages, including but not limited to lost pro ts, business revenue, goodwill or anticipated savings. In no case shall the total liability of LEFEET, its a liates, suppliers, dealers, or service providers for damages from any cause exceed the amount of actual direct damages, not to exceed the amount paid for the product.
- Page 26 Designed by LEFEET...
