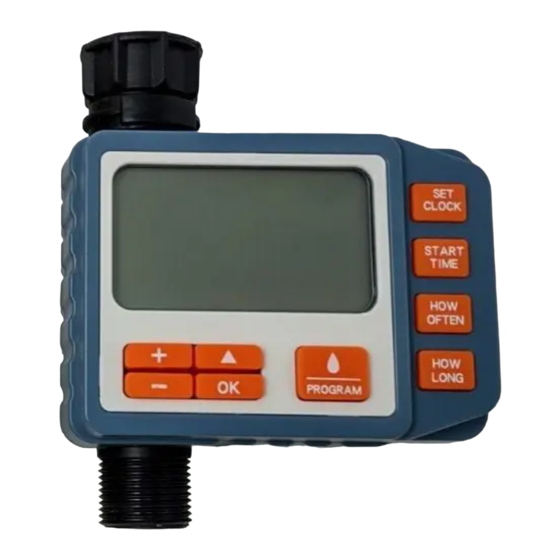

Summary of Contents for Handife BX-6811

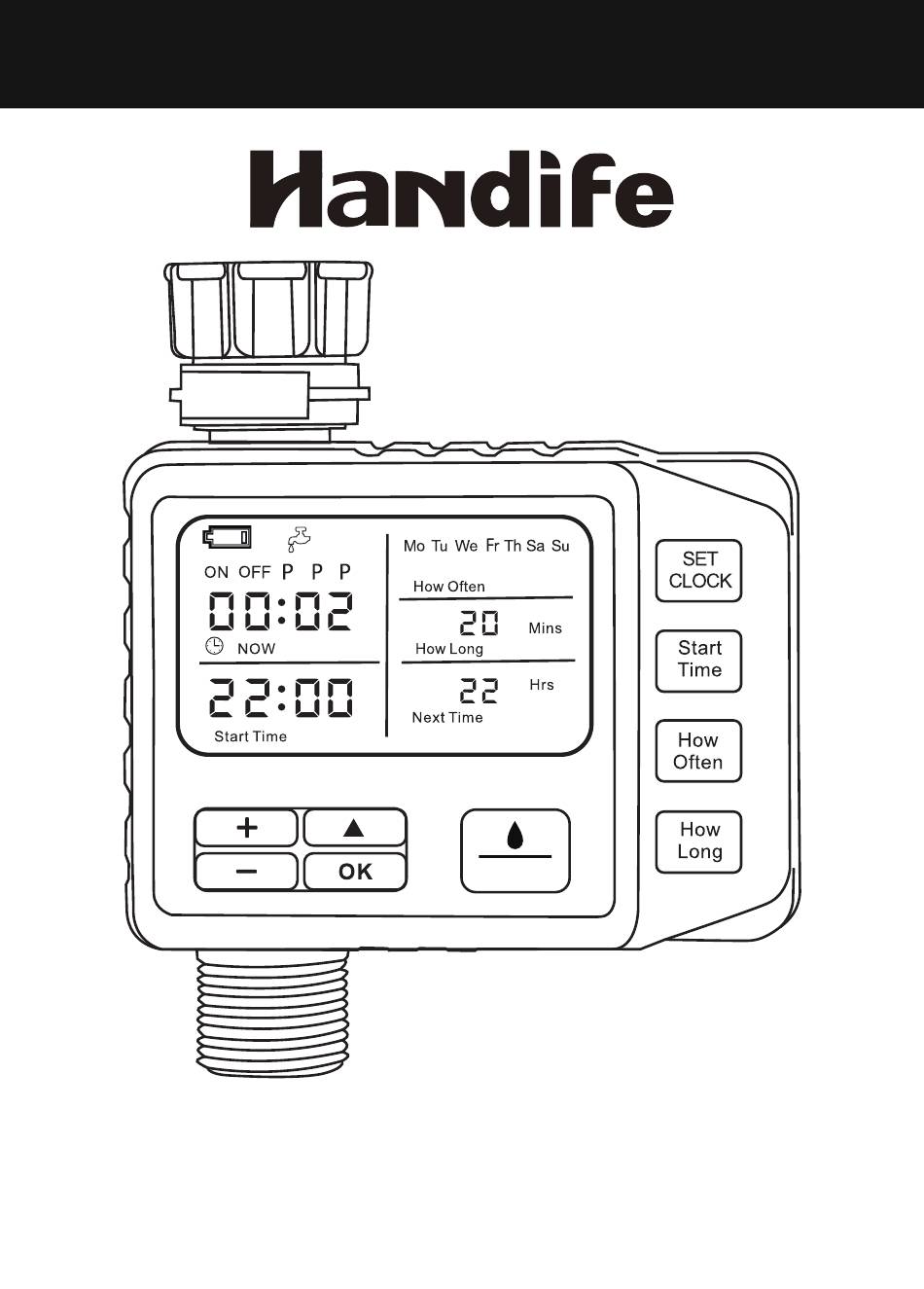

- Page 1 N S T R U C T O N M A N U A L PROGRAM DIGITAL HOSE END TIMER BX-6811...
- Page 2 PRODUCT OVERVIEW Local time Set start time of watering Set watering frequency Set time of watering Adjustment button +/- PROGRAM Confirm the setting Setting cycle Show watering/do not show stop watering P1P2P3 Three watering plans battery power Day of the week ON/OFF Execute/stop current time Watering continues...
- Page 3 INSTALLING THE BATTERY 2 X AA ALKALINE BATTERIES ARE RECOMMENDED (Batteries not included) Remove the battery cover-keep the battery compartment dry-install the 2XAA Battery by lining up the connections. Place the battery inside the compartment and reinstall the battery cover. NOTE: When installing the battery, press the battery cover to the end.
- Page 4 SET CLOCK: SETTING DAY&TIME Set the current time. Step 1: Press to wake up the screen and display all the information. PROGRAM Step 2: Press Set the current hour: 00 (Flashing), Press +/- to adjust to the exact hour: (0-23 hours) NOTE: Long press +/- to quickly increase/decrease the value.
- Page 5 Step 2: Press Choose ON/OFF.(ON: The valve is opened and the watering plan is executed, OFF: the valve is closed, and the watering plan is not executed.) NOTE: If you need to close the P3 plan ,but P1 and P2 are executed normally, Press to“P3”;...
- Page 6 SETTING HOW LONG NOTE If the screen goes off，Press to wake up the screen and display all the ■ PROGRAM information，Press repeatedly , Choose a watering plan: P1 PROGRAM “ON P1” show in screen. ■ Step 1: Press ,Choose how long to water，Press ,Choose Secs/Mins/Hrs；...
- Page 7 WARNING ① Maximum working pressure of sprinkler timer: 120PSI (8.2bar) for irrigation only! ② Please do not use water above 120°F (50°C) or below 38°F (3°C)! ③ Do not subject the sprinkler timer to excessive external force impact! ④ To avoid damaging your sprinkler timer, tighten the interface by hand. Tightening with tools can easily damage the product! ⑤ Before installation, please make sure to set a gasket in the top connector to prevent leakage, add a rubber gasket and threaded sealing tape if necessary!
- Page 8 -Thanks for choosing Handife- Company: Shenzhen Zestnation Technology Co.,Ltd. Address: 202, 2/F, West Block, Laobing hengfang Industrial Park, Xingye Road, Laodong Community, Xixiang Subdistr, Bao'an District, Shenzhen Email: warranty@handife.com MADE IN CHINA...
