Portable Label Printer
Label Printer PT-50DC
PT-50DC
User's Guide
Read this manual carefully before starting and keep the manual
in a handy place for future reference.

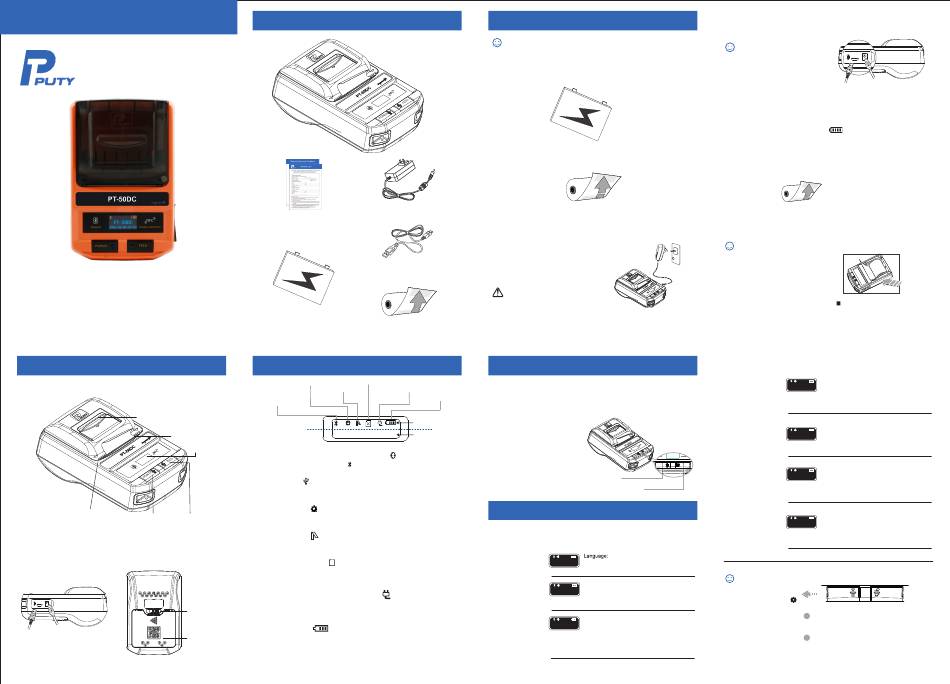

Printer Parts

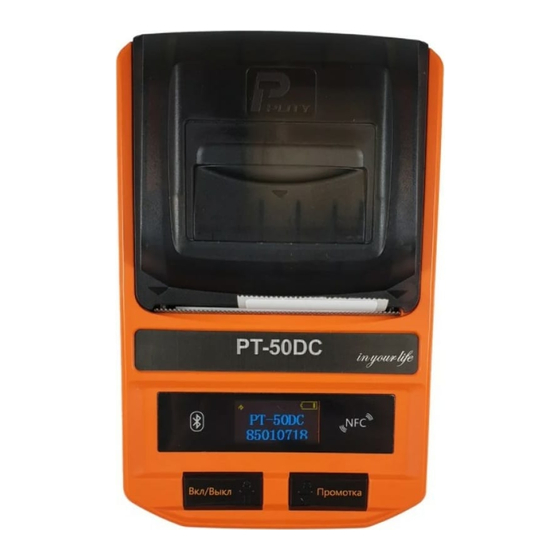

Front
Cassette Cover
Tape Exit Slot
LCD Display
L bel
a
Cutter
Power Key/
Feeding Key/
Function Key
Setting Key
Rear
Profile
Battery Cover
Lock
DC Power Port
USB Port
Battery Cover
Confirm the Packing List
PT-50DC printer (one set)
Power adapter (one pc )
User's guide, warranty card
USB cable
Battery(one cell)
(Pre - installed in the printer)
Label paper (one roll)
Display Status
Out of Paper State
Setting Mode/USB Mode
External Power Supply Indicator
Unlocked State
Wireless Communication/
Power Level Indicator
Bluetooth
Icon Area
Text Area
Wireless Communication/Bluetooth
Sign of connected through bluetooth.
USB Mode
Sign of connected through USB.
Setting Mode
Indicates the printer is in setting mode.
Unlock State
Indicates the print head is unlocked.
Out of Paper State
X
Out of Paper Error. When paper is run out or loaded incorrectly, this sign will
be indicated.
External Power Supply Indicator
Indicates an external power supply is connected. when inserting the external
power supply, it appears. By taking out the external power supply, it disappears.
Battery Level
While charging this sign flashes. Please charge up at low battery.
Text Area
The area shows some text information.
Before Using
Note
Make sure you fully charge the battery before you first using PT-50DC. In order to
ensure the best effect of the battery, please charge it fully when it is not in use for long.
Battery
Steps before using, including ribbon loading, battery charging and paper placing.
Label paper
220V
Battery Charging
power supply
Insert the AC adapter plug into the electrical
outlet, while inserting the DC adapter plug
into the DC connector of the printer.
AC:100V~240V(50-60HZ)
Warning
Please use the original adapter only,
otherwise it may damage the printer.
Basic Functions
Turn On
Press and hold POWER button for 2 seconds to turn on the printer
Power Off
Press the POWER button for 2
seconds, to turn off the printer
Feed Paper
Press the FEED button, take a piece
of paper.
Auto Power Off
Main for functional option
The printer will turn off automatically
after a standby period.
Main for setting
Setting
Initial Settings
You will enter the user's setting interface when the printer turns on.
POWER button:
Toggle Option
Press the FEED button
Language
Language
to set the language of
English/中文
English
the operation interface
Toggle Option
Shutdown
Press the FEED button to
Shutdown Mode
Shutdown mode
Mode
adjust the mode of shutdown:
Never
10 minutes/20 minutes/30
minutes/never
Toggle Option
Paper
Label
Press the FEED
Paper Type
Papertype
Type
button to adjust
Normal
Label paper
paper type. Black
BlackMark
Mark and Label
with re-calibration
function
Attention
The printer still works during charging.
Don't remove the battery during charging.
USB port
DC power port
Charging: The power indicator icon flashes
End of charge
: The power indicator icon is
full and stops flashing.
Label Roll Loading
PT-50DC label printer material:
width:12-52mm
the maximum diameter:50mm
Note
1.Use only PUTY tapes with this
machine. Don't use tapes
without PUTY mark.
2.Adjust the catch according to
the label width and push the
Insert the label roll as shown
ribbon lock to the locked position.
(with the side to be printed
3.Please close the cassette cover
on facing down)
after installing the label.
Toggle Option
Automatic
Press the FEED button to
AutoCalibration
Automatic
calibration
automatically calibrate Black
Gap
Calibration
Mark and Label only
Toggle Option
MAC
Press the POWER button
MAC Address
MAC Address
address
to show the MAC address
DCOD:30:05:A6:03
of this printer
Toggle Option
Print
Press the FEED button to
Print SelfTest
SelfTest
show the printer's
PrintSelftest
information and the print
test
Toggle Option
Restore
Press the FEED button to
Restoreto
Factory Settings
factory
restore factory settings
FactorySettings
settings
Attention:
You can adjust the printer
POWER
FEED
when you see this icon
on the upper left screen.
POWER button: Short press to enter the setting
1
interface after turning on.
2
FEED button: Press it to check that paper can be
printed correctly by the printer. If not, make sure
that it snaps into place.
