Summary of Contents for Tracksolid AT1

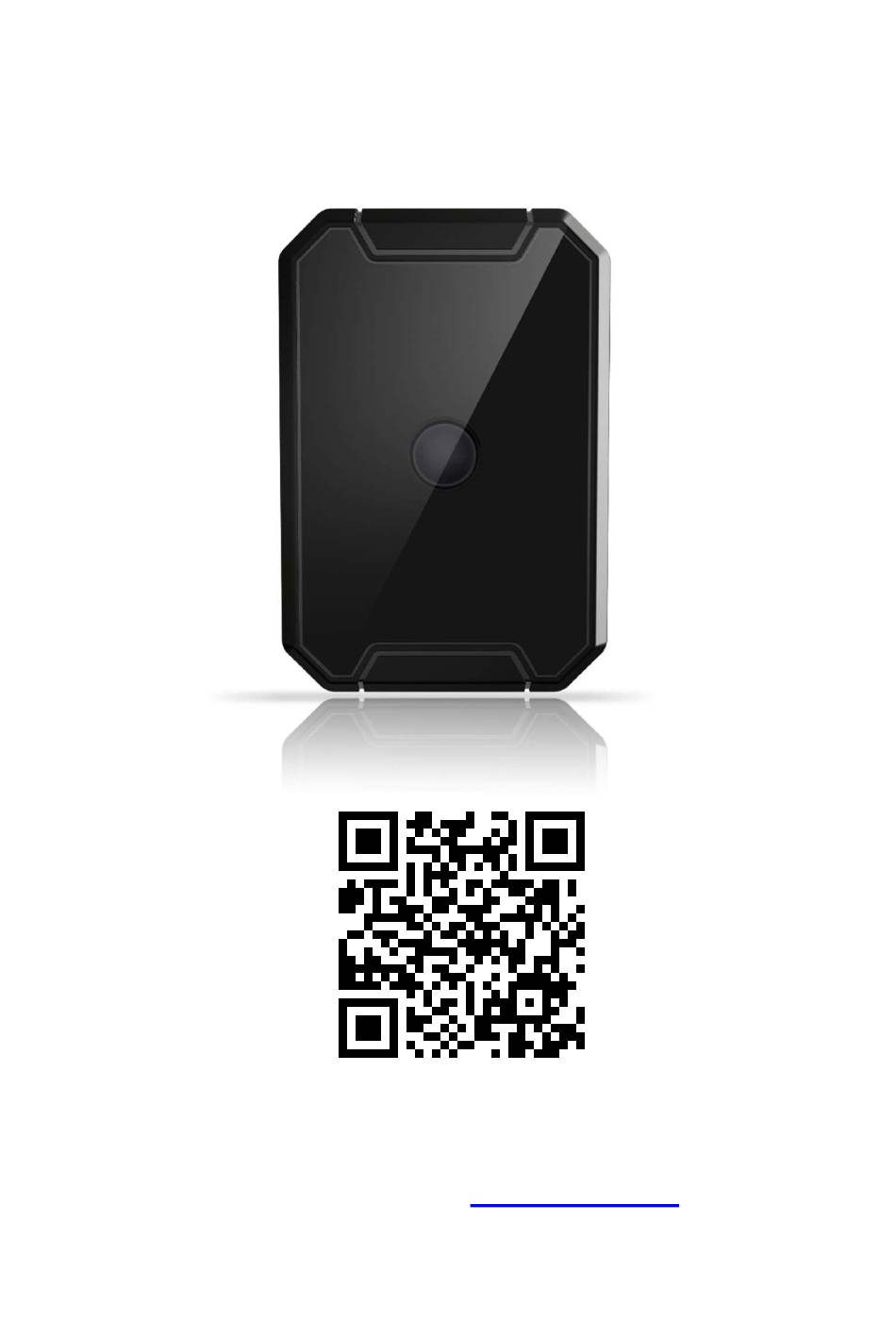

- Page 1 AT1 Magnetic GPS Tracker (User Manual) Tracking App Tracking Website: Tracksolid.com...
-
Page 2: Table Of Contents
Quick Setup ................5 Charging ......................5 Insert SIM card....................6 Power ON / OFF .................... 7 Download Tracksolid App ................8 Sign up & Login ..................... 8 Bind Device ....................9 Ensure Device Online ............... 11 Status Indicator ................... -
Page 3: Appearance
Appearance GSM LED Power LED GPS LED On/Off Button Tamper Alarm Button Notch Waterproof Mic Charging Port Charging Contact Magnetic Connector... -
Page 4: Accessories
IMEI Number Accessories Magnetic 5V/2A USB Magnetic Cover Adaptor Cable Screws Screwdriver User Manual * Note: A 2G SIM card is necessary to use the GPS locator. Please prepare a SIM card that supports the following frequency bands before starting to configure the device: Quad-band 850/900/1800/1900 MHz... -
Page 5: Quick Setup
Quick Setup Charging Insert SIM Power on Bind Device Sign up & Login Download App Charging Charging the device with original adapter and cable before use. The red LED is always on when charging, and it flashes slowly when it is full. -
Page 6: Insert Sim Card
Insert SIM Card Unscrew the existing screws from the back cover using the screwdriver. (To simplify the steps, only two screws installed during production) Insert Nano SIM Card in correct direction. SIM Card Slot... -
Page 7: Power On / Off
What SIM Card should I to Choose? Frequency Band Quad-band 850/900/1800/1900 MHz Network 2G (GSM) 2G Data Required (At least 20-30Mb/Month) 2G SMS Required 2G Voice Call Optional (For Voice Monitor) SIM Type Nano Size Power ON / OFF 1. -
Page 8: Download Tracksolid App
Download Tracksolid App Search “Tracksolid” in App Store or Google Play to download. Scan the QR down below to download. Sign up & Login ① ② ③ ④ ⑤ ⑦ ⑥ ① Input your email ② Click ‘->’ to get verification code ③... -
Page 9: Bind Device
Bind Device Add Device Scan Barcode Find the IMEI barcode on package or device 1. Click the ‘+’ on the top right to add device. 2. Scan or type in the IMEI barcode on the package or device body. 3. - Page 10 Edit basic info about this device, or click on ‘Save’ directly to skip this step. You can come back and edit the info anytime in the ‘Detail’ Page. Edit...
-
Page 11: Ensure Device Online
Ensure Device Online 1. Go to ‘List’, you will see the AT1 you just bind. 2. You can tell the status of the device via the color of the icons. 3. To get a location or send any command, the device must be online. -
Page 12: Set Sos Number
Set SOS number After device is online, you can set an SOS number to receive SMS alert or trigger a voice monitor call. 1. Find your device in the list page, click on the icon. 2. Go to ‘Command’ page to set the SOS number. ... -
Page 13: Troubleshooting
Troubleshooting LED Indicators Status Meaning Quick Solution Always On Charging Recharge the device. No Battery / Malfunction Or try charging Flicker Quickly Low Battery with another (Every 0.3 seconds) charging cable Flicker Slowly Fully Charged / Device (1s on; 3s off) Working Flicker Quickly GPS Signal is poor... -
Page 14: Set Up Apn
Step 2 - Insert the SIM card into your smartphone and disable the PIN code. Step 3 - Get the APN name from carrier or Google it. Step 4 - Insert SIM back into the device and power on AT1, then send an SMS command (APN,APNname#) to the SIM card. -
Page 15: Get Help
APN name: mobilenet Then send the command: APN,mobilenet# (No spaces between the commands) Step 5 – Reboot the device and find it online. Get Help customer-service@jimilab.com Email us: Messenger us on Facebook: M.Me/FosinTrust Live chat via WhatsApp: +86 13423860204... -
Page 16: Install Magnetic Base
Check if the device can work normally before installing the magnetic base. Make sure the SIM card is insert correctly Check whether the device is online in the Tracksolid. Please contact and get help if the device is inactive or offline. -
Page 17: Remove The Magnetic Base
Remove the Magnetic Base Pull out the buckle and pushing the base from bottom to top simultaneously to remove the magnetic base. Lift the buckle outward Push... -
Page 18: Main Functions
Main Functions Bottom Menu Map Page Device List Alerts Report Account Setting Console Menu 1. Tapping the icon to check the device. 2. Tapping the button to expand the menu. Device Status Last Location Console Menu Note: If there is no map display, please install Google Maps app. -
Page 19: Real Time Tracking
Real Time Tracking Tapping on ‘Tracking’ to enter tracking page. Map Type Show Traffic Street View Locate AT1 Show the Address Share Location Device Status... -
Page 20: History Playback
History Playback Select the time period and click "OK" Click ‘Playback’ to search the track among the past 6 months. Calendar Report Play & Pause Speed up Hide & Show the line Choose another period... -
Page 21: Geo Fence
Geo Fence Add Fence Click ‘Geo Fence’ to manage your customized fences. Search Landmark Set Radius Rename Fence Alert Trigger Option Confirm Create Fence... -
Page 22: Set Work Mode
Set Work Mode Find your device in the list page, click on the icon. Go to ‘Command’ page to set a work mode based on different situations, to get a more accurate location or longer standby time. ... -
Page 23: Voice Monitor
Voice Monitor Preset at least one SOS number refer to Set SOS Number. Send SMS command to receive a voice call: MONITOR# Command List Command can be send via SMS Send online command via ‘User-Defined’ in the Command Page Function Command Explanation... -
Page 24: Specifications
Specifications Positioning Positioning system GPS+WiFi+LBS Frequency Track accuracy ≤10m Network Communication network Frequency Quad-band 850/900/1800/1900 MHz Power & Function Battery 6,000mAh/3.7V Li-Polymer battery Mode 1: Regular-upload mode Working modes Mode 2: Tracking mode Mode 3: Power-saving mode Data storage 32+32Mb Tamper proof Light sensor...
