Summary of Contents for BOOMLIGHTS SB-1
- Page 1 SB-1 STOMP BOX USER MANUAL © BOOMLIGHTS 265 McNeilly Road Stoney Creek, ON L8E 5H2 Canada © 2021 BOOMLIGHTS. All rights reserved. Page 1 of 7...
- Page 2 CONTENTS WARNING ..........................3 WHAT’S INCLUDED ......................3 SAFETY INSTRUCTIONS ...................... 3 1.0 INTRODUCTION ......................3 1.1 Overview ........................3 1.2 Features ........................4 2.0 OPERATION ........................5 2.1 Getting Started ......................5 2.2 Colour Control Knob ....................5 2.3 Bright / Speed Control Knob ................... 5 2.4 Momentary Mode vs Latched Mode ...............

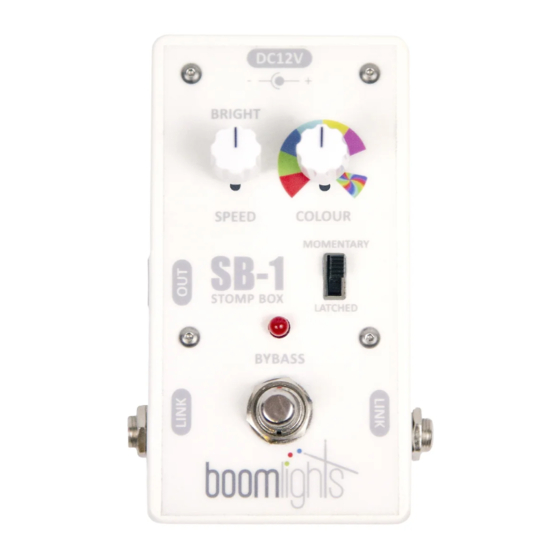

- Page 3 Housed within a traditional guitar stomp box that can be discreetly added to any pedal board, the SB-1 offers manual lighting control directly from the stage. With a kick of the switch, you become your own lighting designer.
- Page 4 RGB channel output is bypassed. 7 - Link Jack: These 1/4” phono type jacks allow multiple SB-1 pedals to be chained together. When connected, any linked SB-1 pedal can be used to simultaneously control all LEDs being driven by all linked SB-1 pedals.
- Page 5 2.0 OPERATION 2.1 Getting Started Setting up and using the SB-1 is very simple and straightforward. Plug the supplied power supply into an appropriate power source and connect it to the “DC12V” input located on the end of the pedal. From here, simply connect the supplied 40” RGB LED strip to the pedal using the supplied 25’...
- Page 6 For example, if the first linked SB-1 pedal is set to the colour red and the second linked SB-1 pedal is set to the colour green, the first pedal will output red while the second pedal will output green regardless of which pedal’s footswitch is pressed.
- Page 7 When the variable colour setting is selected, the “Bright / Speed” control knob will adjust the rate at which the colours randomly cycle instead of the brightness/intensity. 5.0 SPECIFICATIONS SB-1: STOMP BOX Controls: Bright / Speed Knob, Colour Knob, Momentary / Latched Switch, Pedal Footswitch Indicators: Bypass Indicator Light...
